FRONT FENDER REMOVAL
1. Raise front wheel off ground.
2. Remove front wheel. See 2.5 FRONT WHEEL.
3. See Figure 2-106. Remove four lower fender mounting
screws.
4. See Figure 2-107. Remove front fender.
FRONT FENDER INSTALLATION
1. Raise front wheel off floor.
2. Align front fender mounting holes with front fork bracket.
NOTE
The longer end of the fender faces away from the front end.
3. Apply LOCTITE THREADLOCKER 243 (Blue) to first few
threads of four fender mounting screws.
4. See Figure 2-106. Install front fender with four fender
mounting screws.
5. Tighten fender mounting screws to 27-30 in-lbs (3.1-
3.4 Nm).

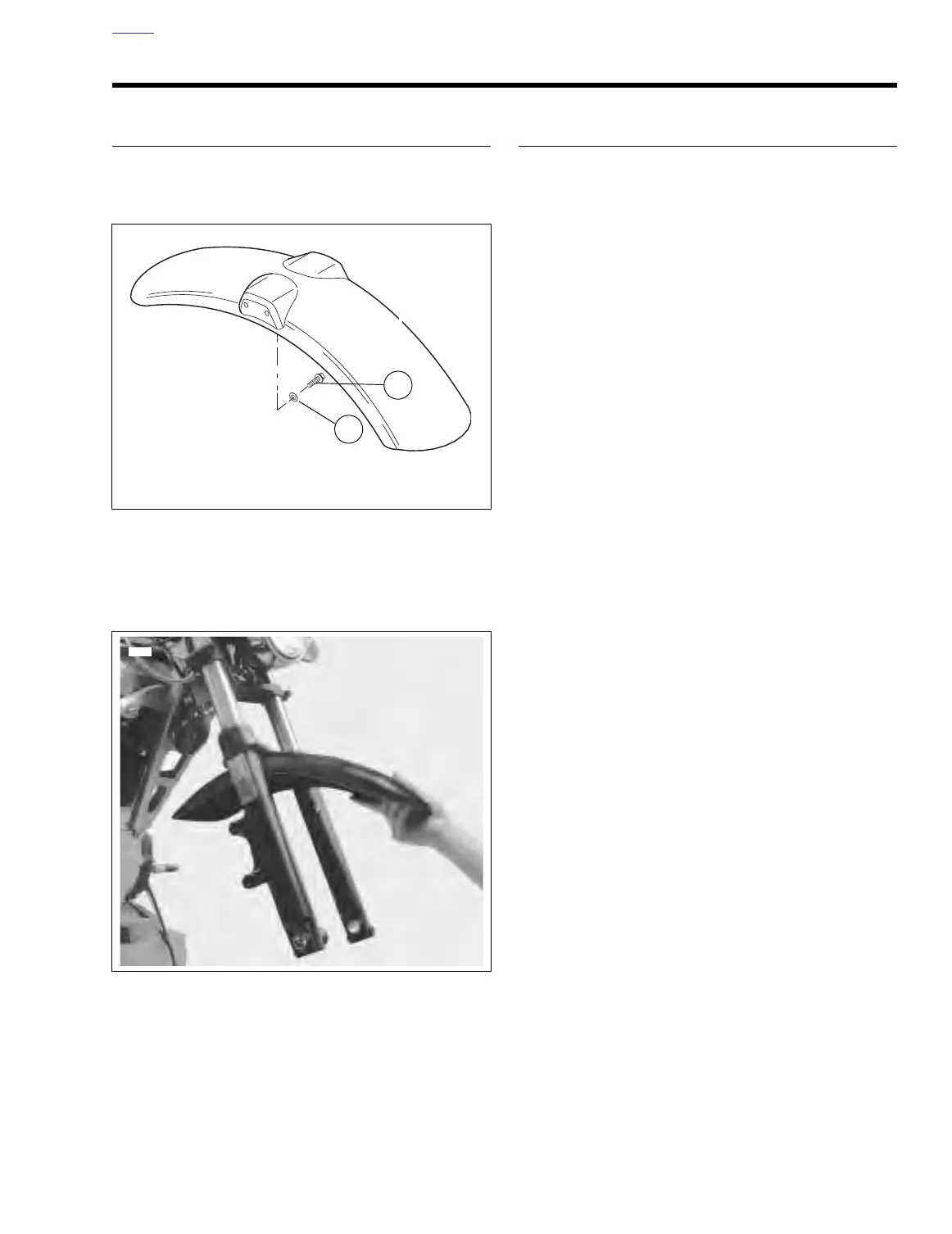

Figure 2-106. Front Fender Assembly
Mounting Screws
Figure 2-107. Removing Front Fender
a0129a2x
1. Mounting screw (4)
2. Washers (4)
