Buell P3 2003 - Bushing (Rocker Arm - 4); Crankcase Breather Grommet Screw; Gasket; Gasket (Lower Rocker Cover)

3-38 2003 Buell P3: Engine
HOME

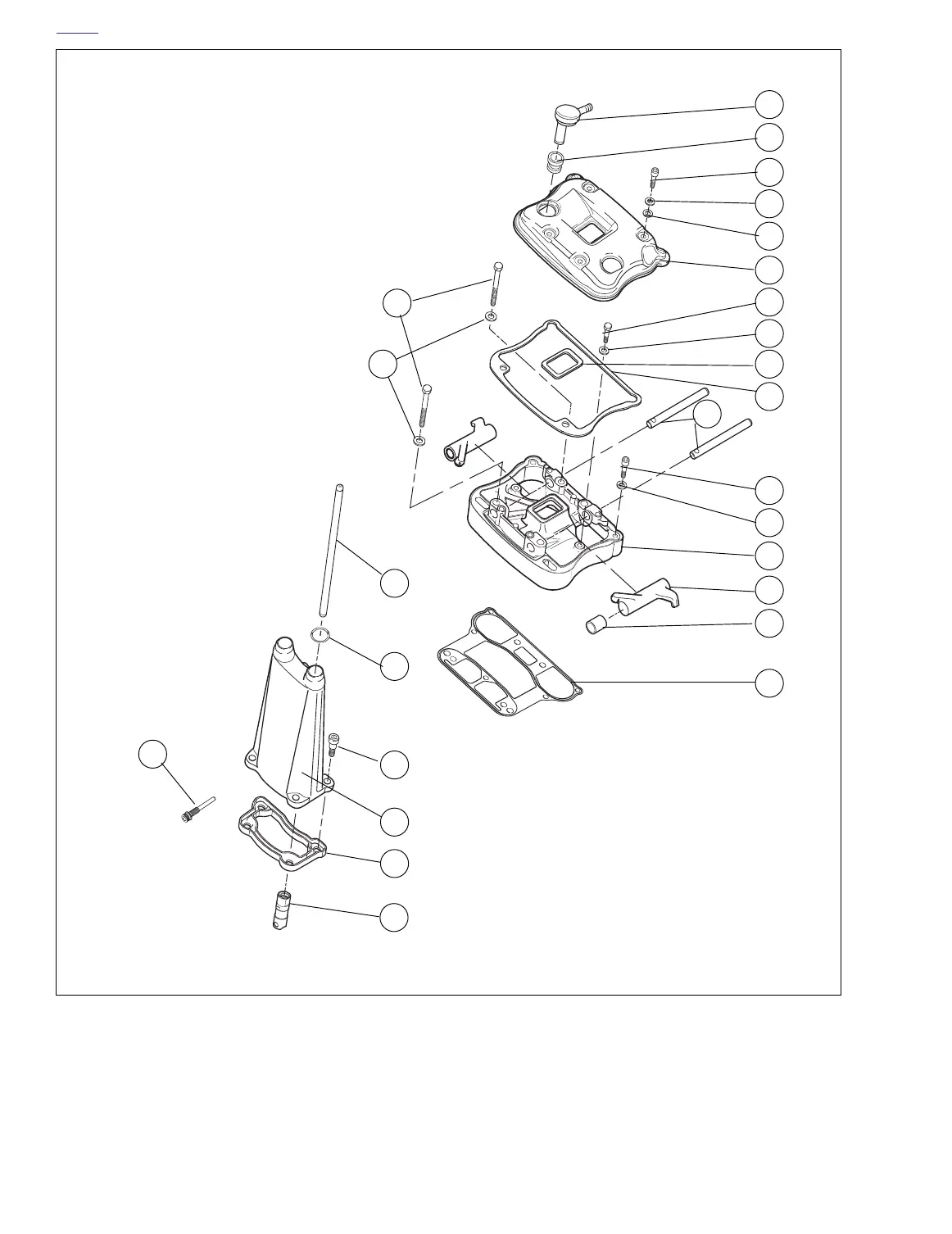

Figure 3-68. Rocker Arm and Push Rod Cover Assemblies
1
.
C
ran
k
case
b
reat
h
er
2. Grommet
3. Screw (4)
4. Washer (4)
5. Gasket (4)
6. Rocker cover (top)
7. Bolt (3)
8. Washer (3)
9. Gasket (inner)
10. Gasket (lower)
11. Rocker arm shafts
12. Bolt (2)
13. washer (2)
14. Rocker cover (lower)
15. Rocker arm (2)
16. Bushing (rocker arm - 4)
17. Gasket (lower rocker cover)
18. Hydraulic lifter (2)
19. Screw, tappet anti-rotation (2)
20. Gasket (push rod cover)
21. Push rod cover
22. Screw (4)
23. O-ring (push rod cover - 2)
24. Push rod
25. Washer (4)
26. Bolt (4)
1
2
3
4
5
6
7
8
11
12
13
14
15
16
17
26
24
22
21
20
23
25
9
10
