INSTRUMENT PANEL 2.27
REMOVAL
1. See Figure 2-113. Remove two mounting screws (1) and
instrument panel.
2. Remove two screws from back of instrument panel.
3. Remove rubber boot (2) and odometer reset switch (3).
4. Depress tab and remove speedometer connector [39].
NOTE
To remove speedometer, see 7.25 ELECTRONIC SPEED-
OMETER.
INSTALLATION
1. See Figure 2-113. Install odometer reset switch to instru-
ment panel and install rubber boot.
2. Install connector [39] on back of speedometer.
3. Apply LOCTITE THREADLOCKER 243 (Blue) to threads
of mounting screws. Install dash with two mounting
screws. Tighten screws to 30-36 in-lbs (3-4 Nm).

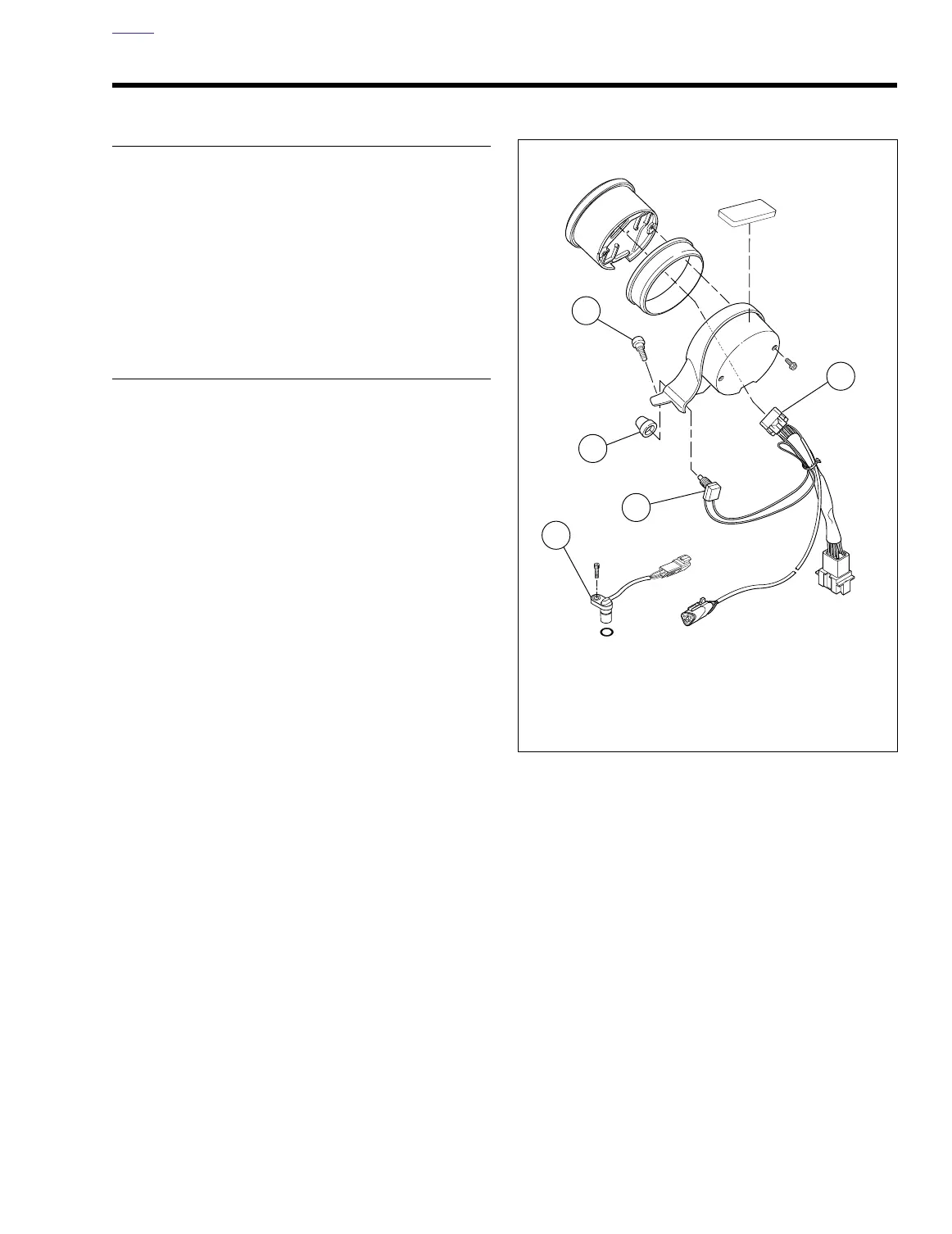

Figure 2-113. Instrument Panel
a0154x2x
1. Screws (2)
2. Odometer reset switch rubber boot
3. Odometer reset switch
4. Sensor, speed
5. Connector [39]
4
3
2
5
1
