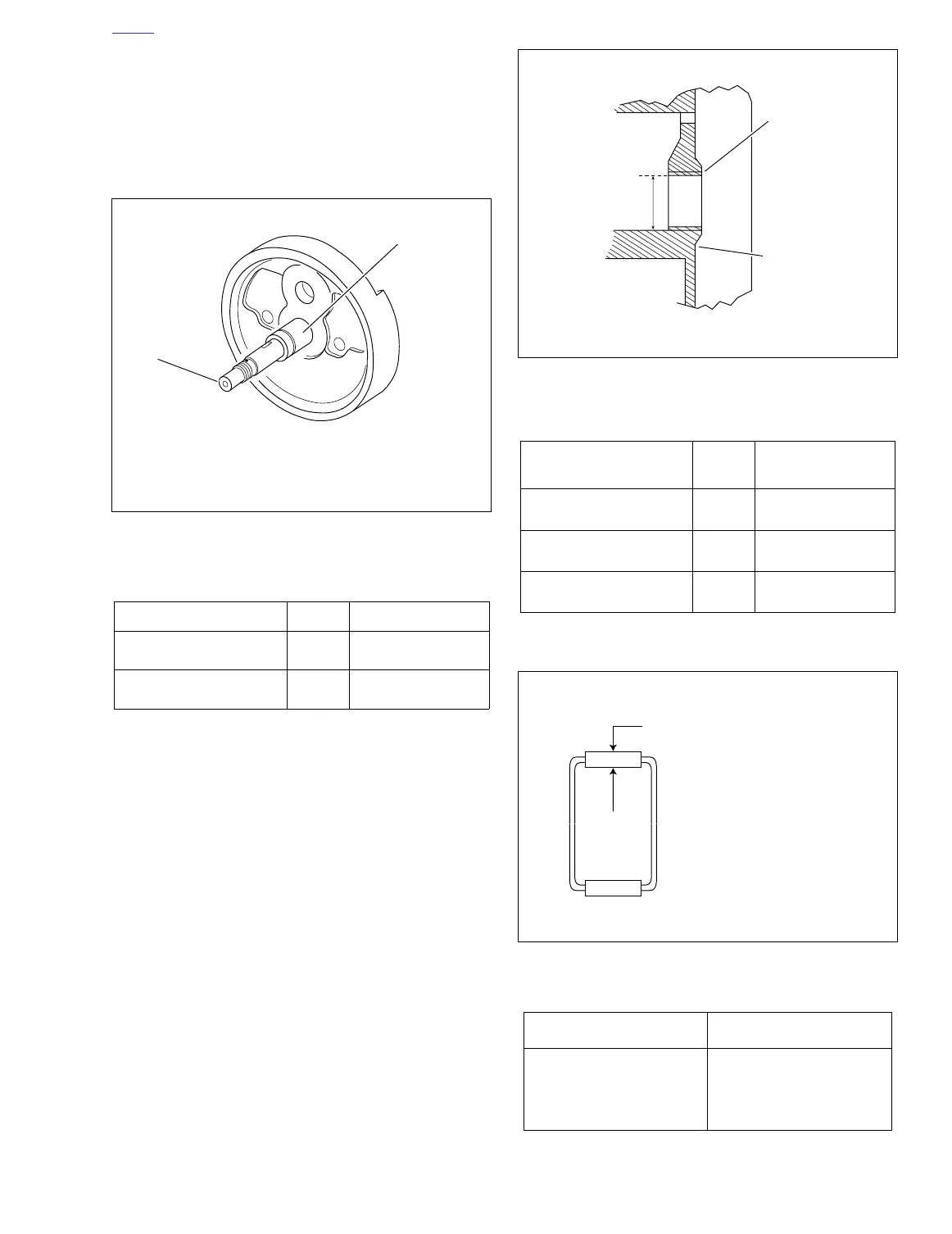

BEARING SELECTION
Select bearings using the identification information given for
inner and outer races and bearings. See Ta ble 3-37.
NOTE
If either inner or outer race show wear, measure both races to
confirm correct bearing fit.
Table 3-32. Paint Dot Specifications
Table 3-33. Stamp Specifications
Table 3-34. Roller Specifications
Figure 3-126. Factory Inner Race Paint Dot Location
(See Table 3-33 for Identification)
RACE OD CLASS IDENTIFICATION*
1.2498-1.2500 in.
(31.7449-31.7500 mm)
A White
1.2496-1.2498 in.
(31.7398-31.7449 mm)
BGreen
SERVICE WEAR LIMIT: 1.2492 in. (31.7297 mm)
a0131x3x
Inner Race
Paint Dot
Location
Figure 3-127. Factory Outer Race Sizes
(See Table 3-35 for Identification)
RACE ID
CLASS
NO.
STAMPED
IDENTIFICATION*
1.5646-1.5648 in.
(39.7408-39.7459 mm)
11
1.5648-1.5650 in.
(39.7459-39.7510 mm)
22
1.5650-1.5652 in.
(39.7510-39.7561 mm)
33
SERVICE WEAR LIMIT: 1.5672 in. (39.8069 mm)
Figure 3-128. Bearing Identification
ROLLER OD (*A) IDENTIFICATION*
Largest
Smallest
Red
Blue
White (Grey)
Green
ID
a0134x3x
Outer Race
Right Crank-
case Half
*Stamped
Class No.
A - Roller OD cannot be
measured to required
accuracy with micrometer.
Refer to color chart in
Table 3-35.
a0133x3x
