6-32 2003 Buell P3: Drive/Transmission
HOME

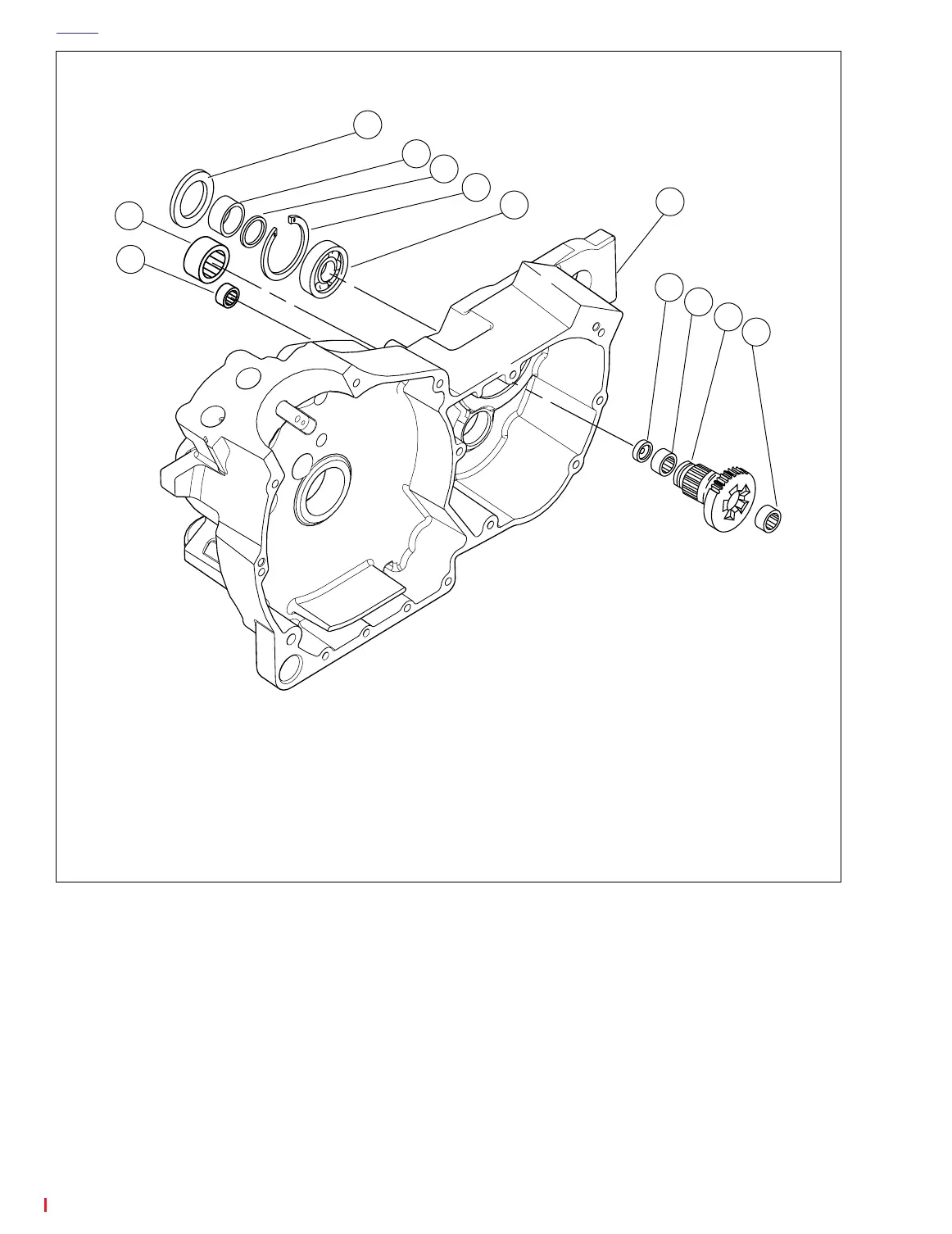

Figure 6-44. Transmission Assembly Right Crankcase Half
1. Bearing (2)
2. Fifth gear mainshaft
3. Needle bearing (2)
4. Oil seal
5. Right crankcase half
6. Ball bearing
7. Retaining ring
8. Quad seal
9. Spacer
10. Oil seal
11. Bearing (closed end) shifter drum
12. Bearing (closed end) countershaft
a0127x6x
5
9
8
7
6
4
3
2
1
10
11
12
