6-36 2003 Buell P3: Drive/Transmission
HOME

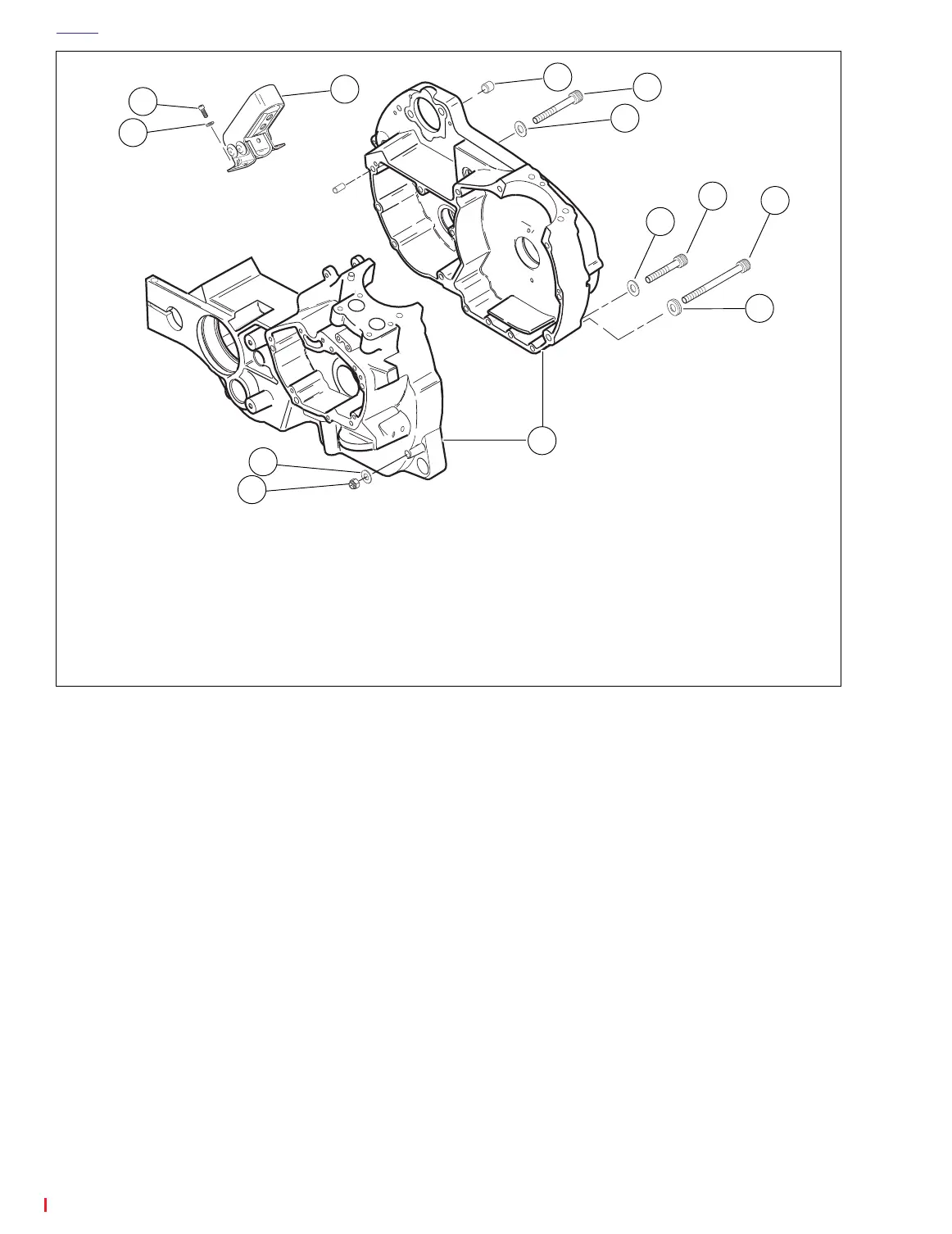

Figure 6-51. Crankcase Hardware
1. Screw (4)
2. Washer (4)
3. Rear isolator
4. Dowel pin
5. Hex socket head screw (9)
6. Washer (14)
7. Bottom case t40 TORX bolt (5)
8. Hex socket head screw (1)
9. Spacer (1)
10. Crankcase set
11. Nyloc, hex locknut
12. Washer (1)
a0484x6x
