2003 Buell P3: Electrical 7-19
HOME

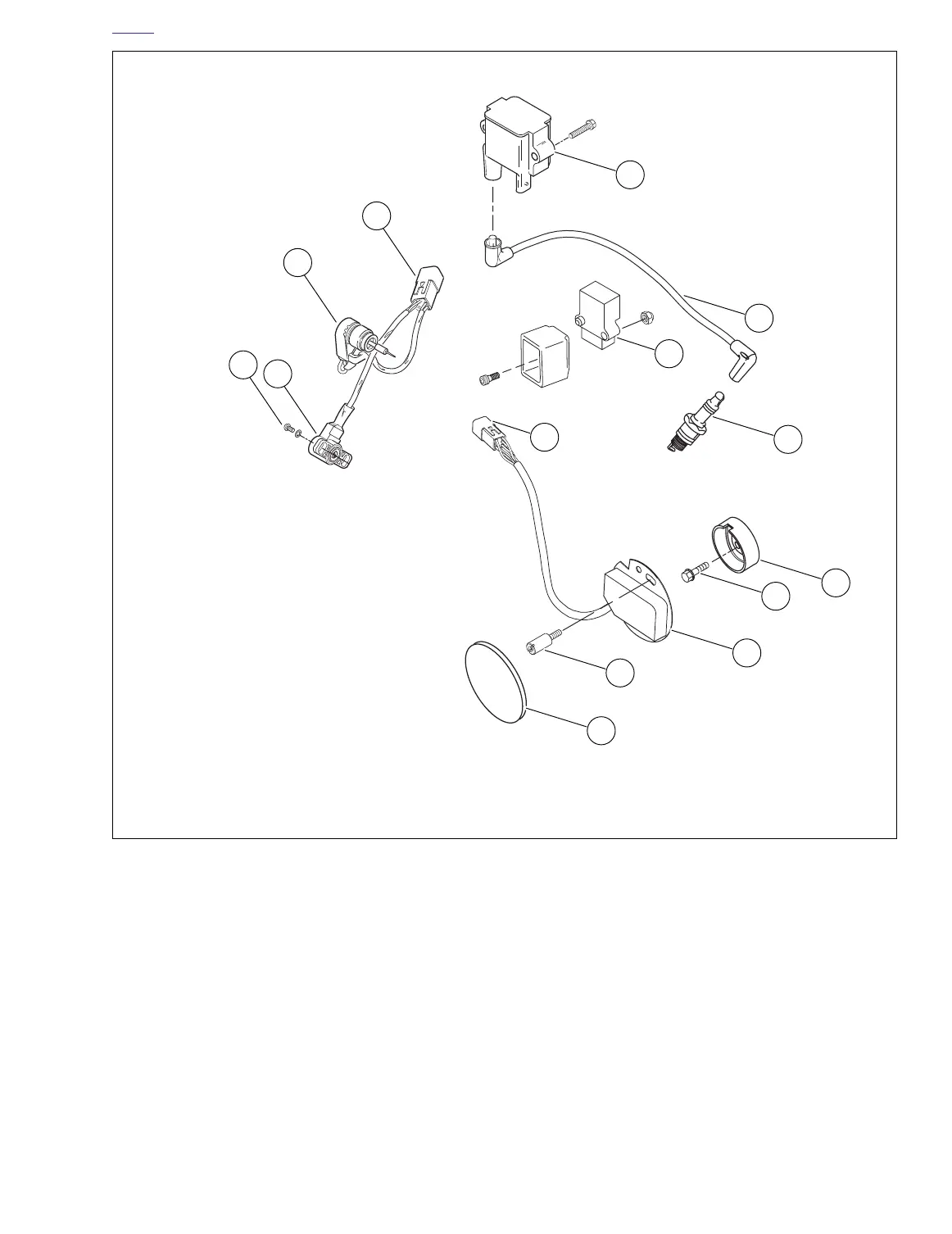

Figure 7-19. Ignition System Components
a0217a7x
1. Timer cover
2. Module plate screws (2)
3. Module plate
(ignition module/cam position sensor)
4. Screw, rotor cup
5. Rotor cup
6. 10r12 spark plug
7. Spark plug cable
8. Ignition coil
9. Connector [88]
10. Auto-enrichener
11. Tamper-resistant T20 TORX screws
12. Throttle position sensor (TP sensor)
13. Connector [10]
14. Bank angle sensor
12
1
3
5
6
7
8
14
13
10
9
4
2
11
