Buffalo LinkStation - Diagrams and Layout (LS-WVL, LS-WXL)

Chapter1 Setup
LinkStation User Manual 12
7
8
4
5
6
7
8
3
5

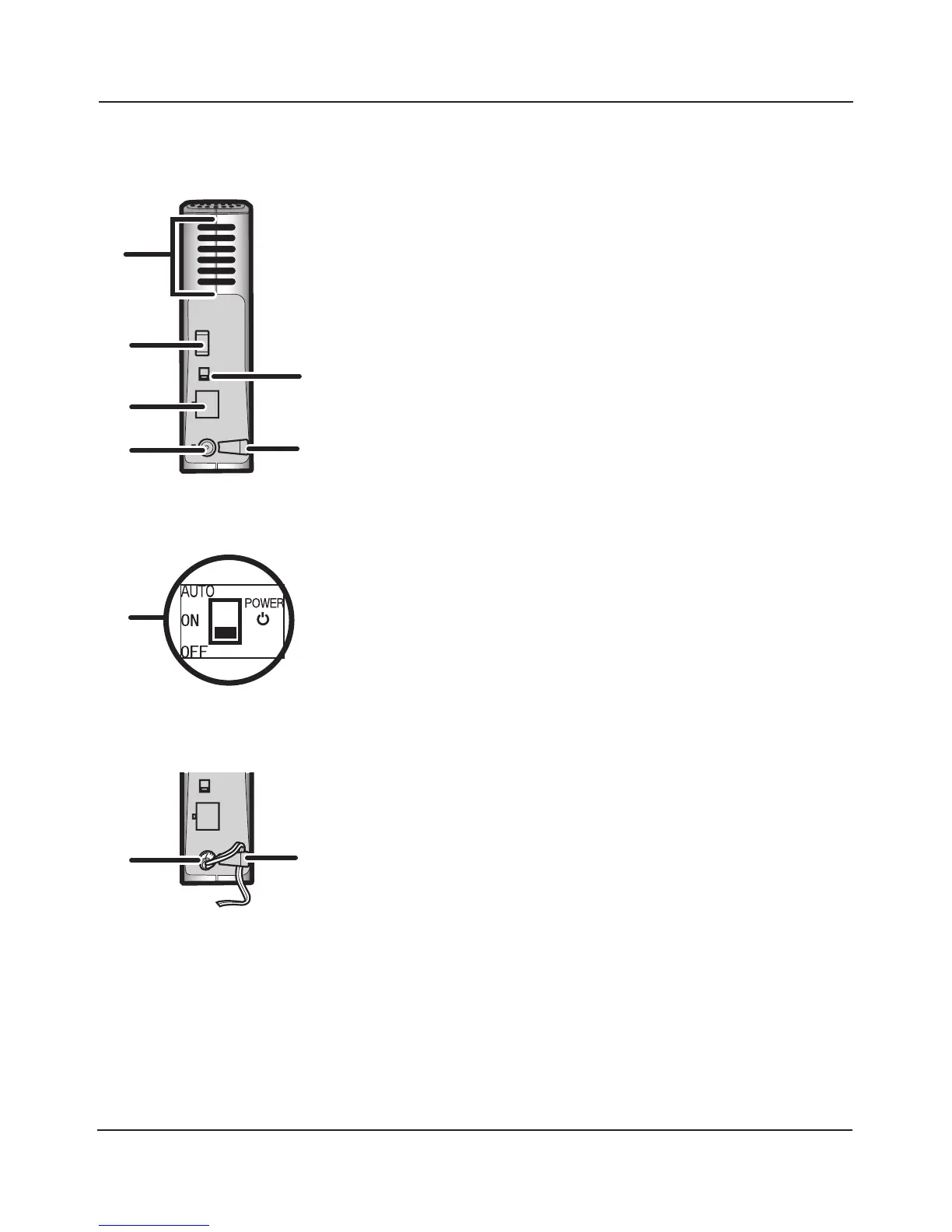

Back
3
Fan
Do not block the fan when installing the unit.
4
USB 2.0 Connector
You may attach a USB device such as a digital camera,
printer, memory card reader, or hard drive. USB hubs, mice,
keyboards, and all-in-one printers are not supported. USB
card readers that support multiple memory cards may not
function properly.
5
Power Mode Switch
AUTO: Automatically powers the LinkStation on and o with
your computer.
ON: Turns the LinkStation on.
OFF: Turns the LinkStation o.
6
LAN Port Connect an Ethernet cable here. The Link/Act
LED by the LAN port turns green when the unit is connected
to the network and ashes when there is network activity.
7
Power Connector Connect the AC adapter here. When it’s
connected properly, the LED to the right will glow green.
8
Hook Use as a strain relief for the AC adapter cable.
