Buffalo LinkStation - Diagrams and Layout (LS-WVL, LS-WXL)

Chapter1 Setup
LinkStation User Manual 13
Back

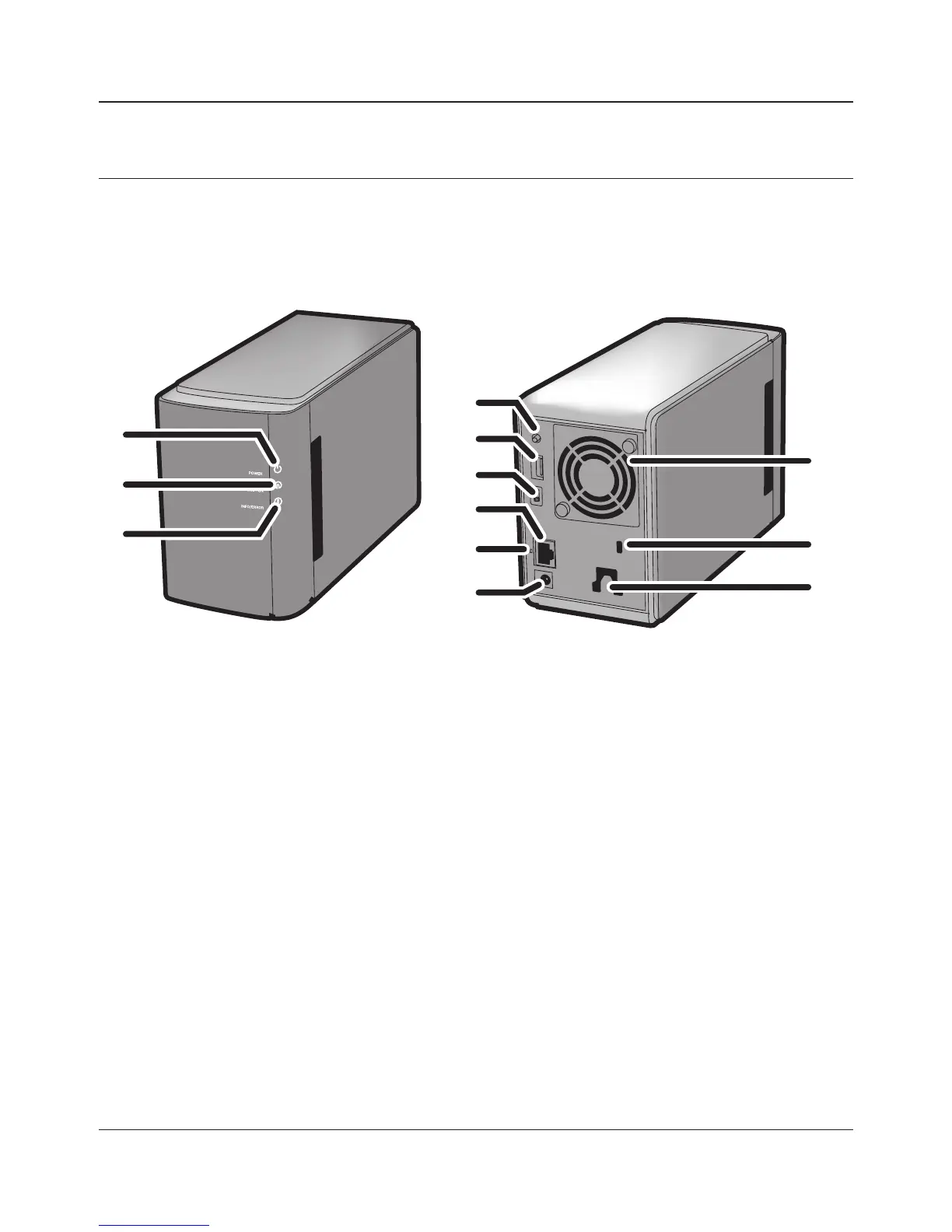

Diagrams and Layout (LS-WVL, LS-WXL)
Front
1
1 Power LED
Blue LED: Power on.
LED is o: Power o.
Blinks blue: During startup and shutdown.
2 Function LED
The Function LED glows blue when direct copy is nished, during initialization, and during
USB dismounting (about 60 seconds). During direct copy it blinks blue.
3 Info/Error LED
The Info/Error LED blinks orange when there’s a message and red when there’s an error.
4 Function Button
The Function button initiates direct copy, dismounts USB devices, and is used to initialize the
LinkStation.
2
3
4
5
6
7
8
9
10
12
11
Note: – Please do not lift the LinkStation by its front cover. It might come o.
