Chapter1 Setup
LinkStation User Manual 14
5 USB 2.0 connector
You may attach a USB device such as a digital camera, printer, memory card reader, or hard
drive. USB hubs, mice, keyboards, and all-in-one printers are not supported. USB card
readers that support multiple memory cards may not function properly.

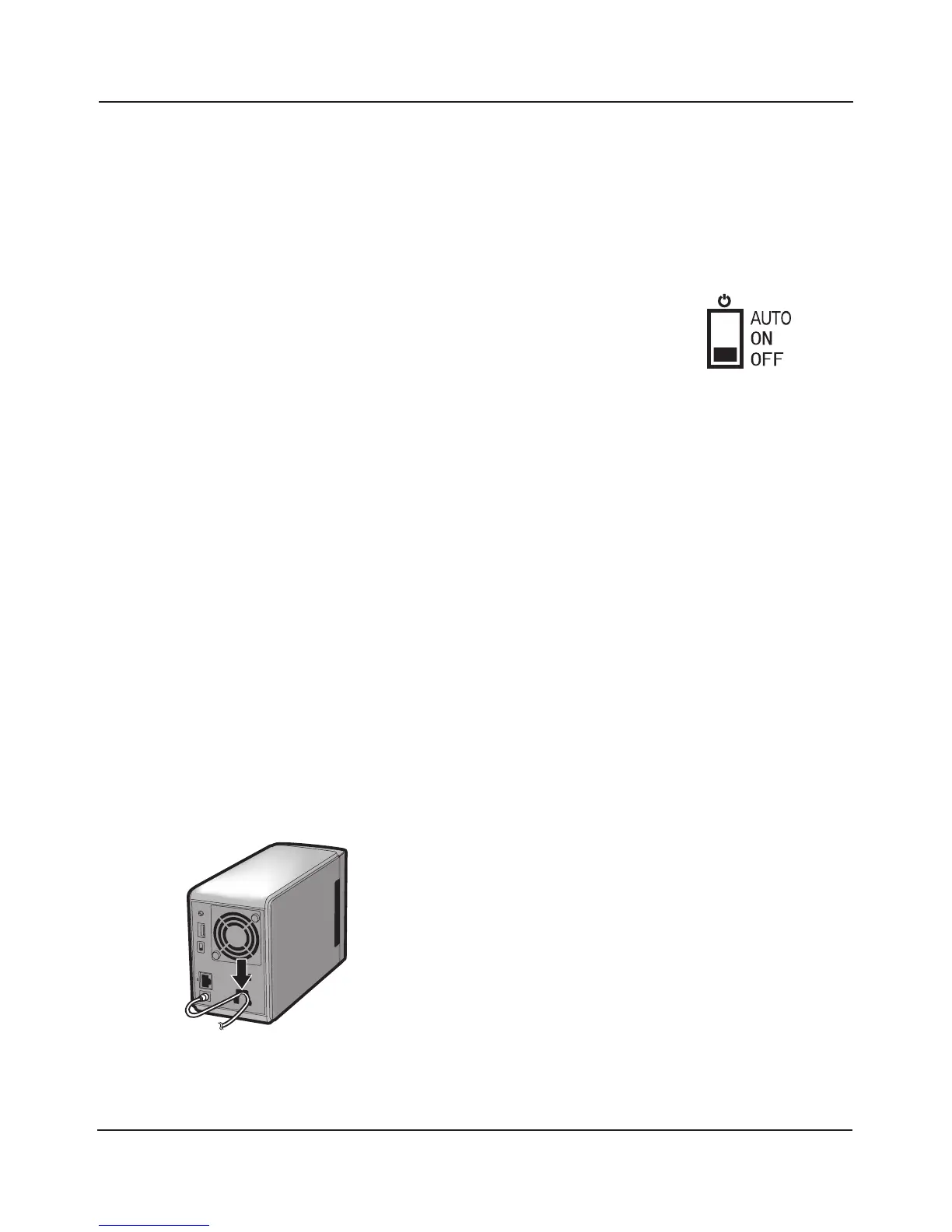

6 Power Mode Switch
AUTO: The LinkStation turns on and o automatically with your PC (s).
ON: The LinkStation boots and is operational.
OFF: The LinkStation shuts down.
7 LAN Port
Connect to your LAN with an Ethernet cable.
8 Link/Act LED
Glows green for connection.
Blinks green for access.
9 Power connector
The AC adaptor connects here.
10 Fan
Do not block the fan when installing the unit.
11 Security lock for anti-theft
Many security cables are compatible with this lock.
12 Hook
Secure the Power cable so that it does not come o by mistake. Slide the cable down to
secure.
