Bunn Premia - Drain and Waste bin Setup; Tools Needed

10
INITIAL SETUP
1. The drain hoses connect to the barb fittings
located between the power cord and water
inlet fitting.
Drain and Waste Bin Setup
FRONT
CABINET BREWER
BACK
5.0"
ø 4.0"
ø 0.75"
1.25" 13.0625"
19.0625"
4.5"
2.5"
7.0625"
6.125"4.75"

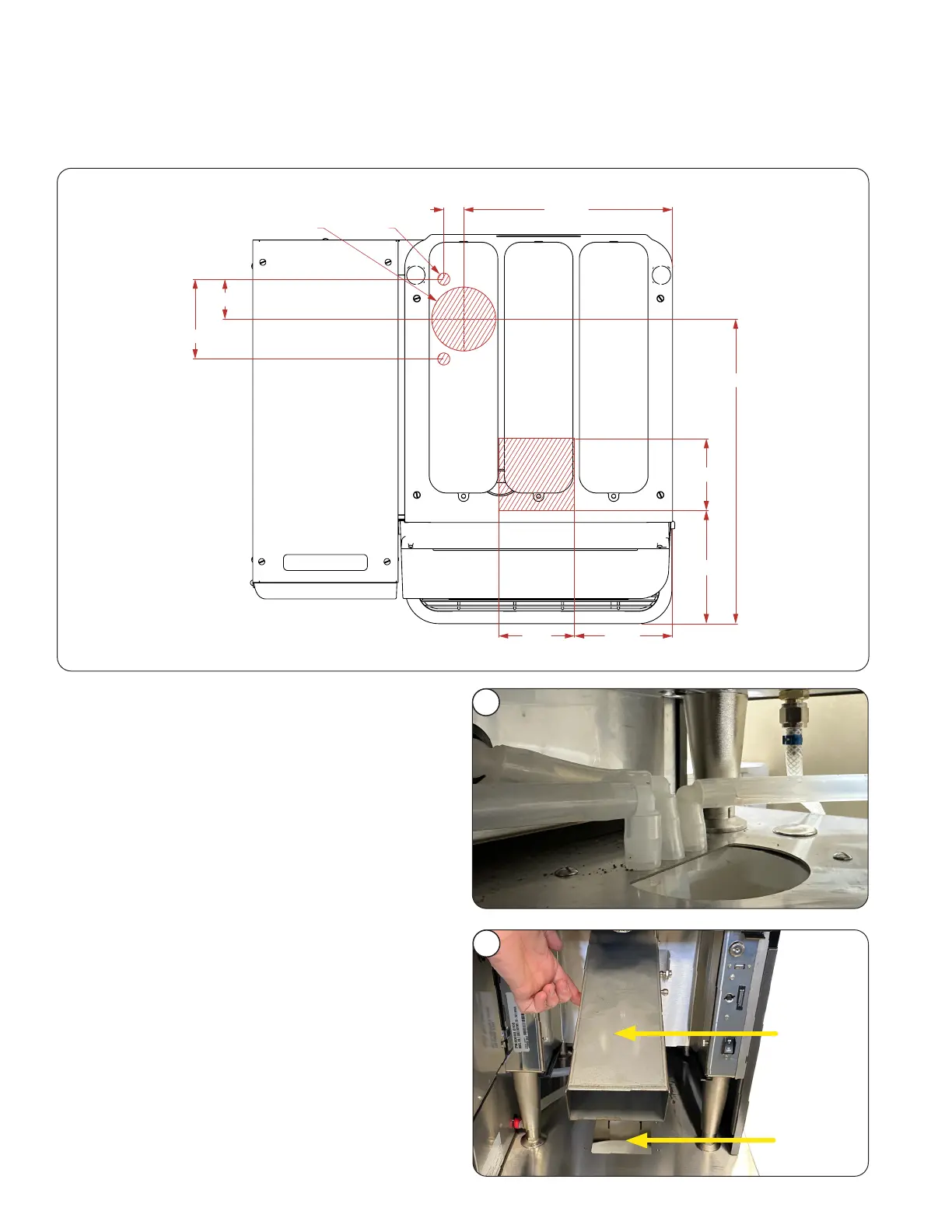

NOTE: The waste bin and drain line will require cutting a hole through the counter before the
machine can be installed. Refer to the diagram below for cut-out placement and measurements.
2. The cut-out on the counter top for the waste
bin should align with the grounds chute
behind the lower front door (when the grounds
chute is in the down position).
NOTE: Image showing grounds chute in the
up position.
continued >
GROUNDS
CHUTE
CUT OUT
Countertop Template
(PN 58837.0000)
1
2
Tools Needed:
1. 3/4 inch drill bit
2. 4 inch hole bit
