INITIAL SETUP
Bean Hoppers
Chutes Image
2. Prior to installing the bean hoppers, visually
verify that there is no debris or obstruction
blocking the bean chutes or bean
detection sensors.
NOTE: Each hopper holds approximately
3.7 lbs (1.68 kg).
3. Unpack and Install the bean hoppers in
any order.
continued >
2
3
NOTE: The hoppers are boxed with the lids on.
NOTE: The gate on a hopper is closed when
the handle is pulled out and it stops beans from
flowing through to the grinder.
The gate is open when the handle is pushed in
and will let the beans through.
The red indicators will line-up with the front of the
hopper when pushed in completely.
closed open

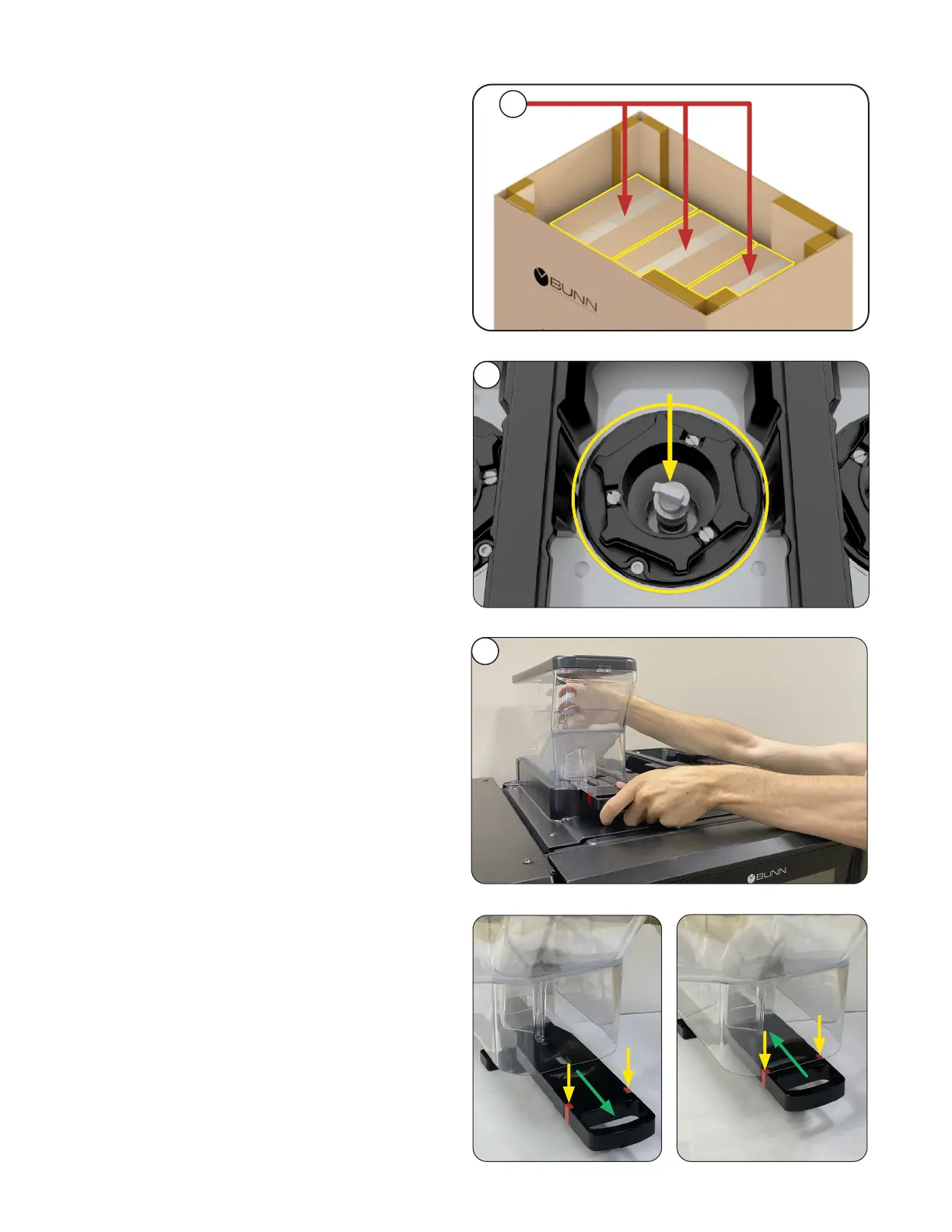

1. Remove the three individual boxes containing
the bean hoppers.
1
