3.5.1.1 Attachment
•
After assembly, carry out the mandatory checks to make sure that the fixings are secure.
•
To ensure that the plastic locking levers of the “Easy Switch” system function properly, do
not allow them to fall or suffer severe knocks during disassembly or storage.
•
Never use “Easy Switch” systems that are damaged.
Fit the side panels by simply clamping them onto the long tube.

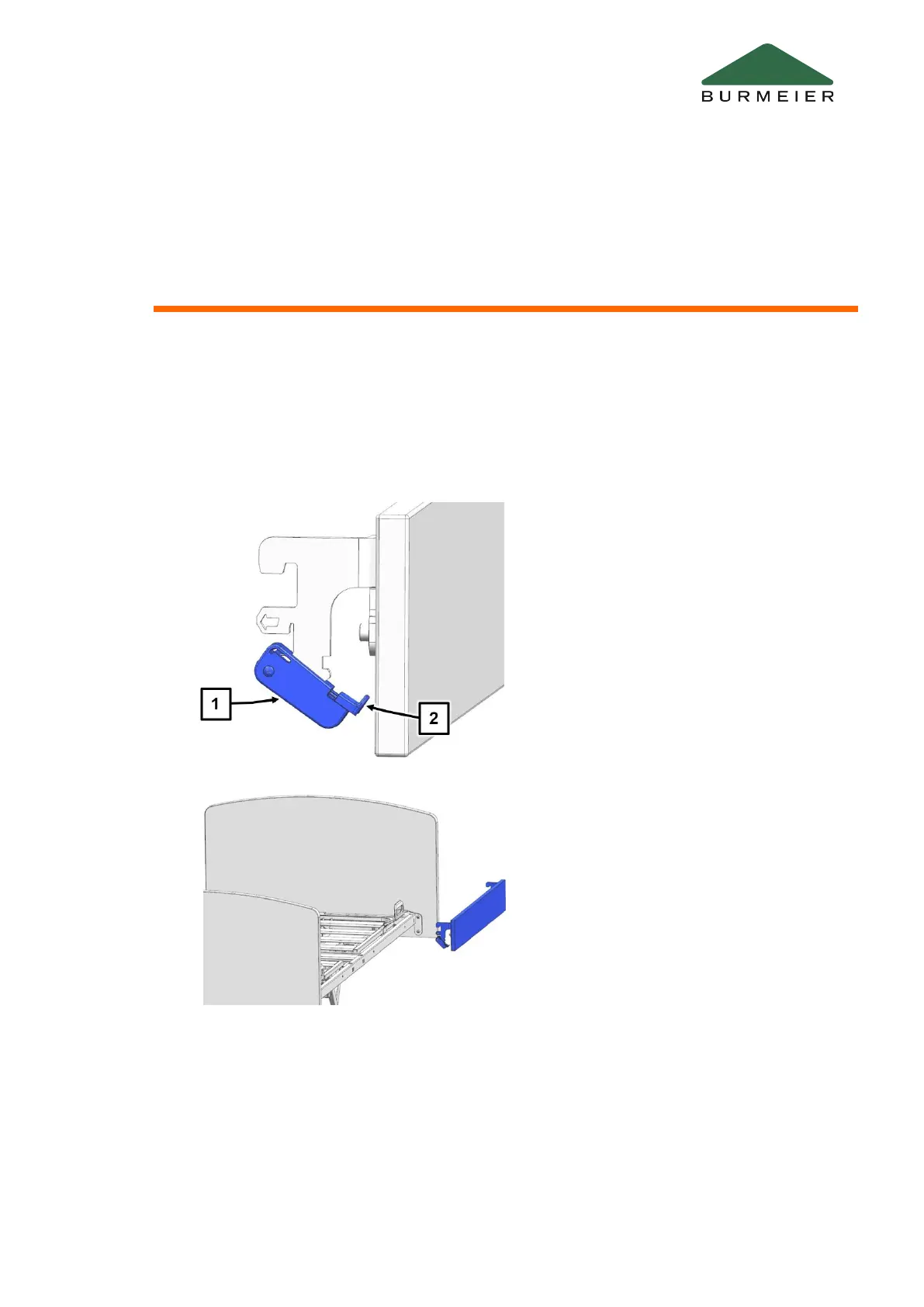

1.
First swivel the locking levers (left and right) for the side panel [1] downwards. To do
so, pull the orange safety lock [2] outwards with your finger and hold it in this position
while swivelling the locking lever downwards.
2. Attach the side panel for the head end to the long tube (head end) as shown.
3.
Insert the locking hooks for the adapters [1] into the slits in the long tube as far as they
will go. Make sure that the panel is fitted securely in place (by visual inspection and by
shaking it slightly).
Assembling the Care Bed
Part B: Operator and Technical Personnel 19
