Assembly & Operation Manual
BVM © 2009 K5300-Current_manual-090808.doc Page 23 12/2/2009

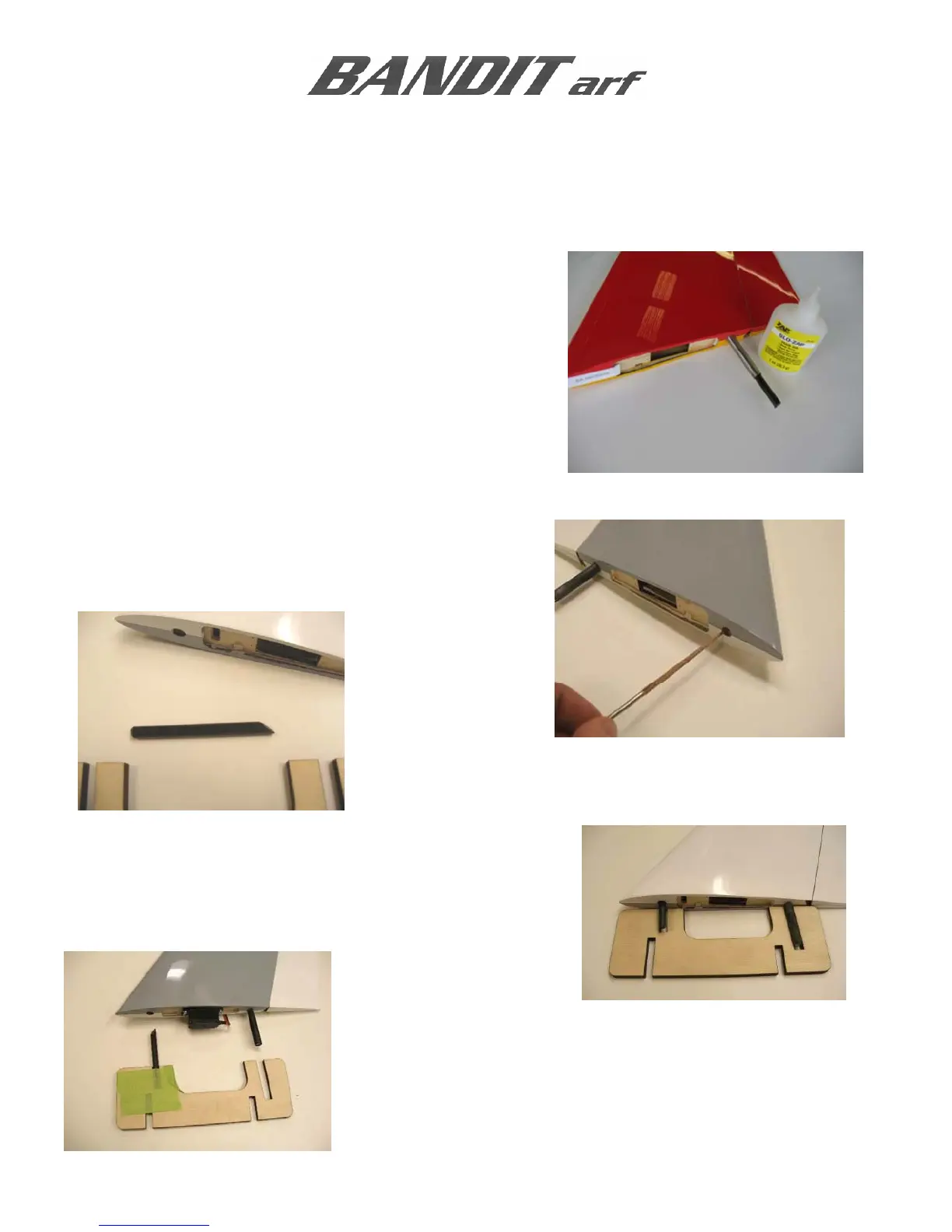

Note: As of September 2009 the tubes in the Bandit ARF were changed from carbon fiber tubes with a
steel insert, to steel tubes with a carbon fiber insert.
For the latter, test fit the carbon fiber rod into the steel tube,
then apply Slow Zap or epoxy and fully insert the rod until
inboard ends are flush
 Use a round Perma-Grit file to fine-tune the front hole to
fit the anti-rotation pin.
 Bevel one end and round the other of the CF anti-rotation pin.
 Trial fit the front pin in place using the ¼” ply alignment
fixture.
 Tape the CF pin to the ¼” ply fixture after setting the depth that
the pin must be inserted.
