- All alarms are triggered.
An indication the alarms have been triggered will also be shown on the screensaver.
E PA temperature/Power supply voltages/Reverse power
Displays the temperature of the Power Amplifier, the voltages of the Power amplifier
power supply and of the auxiliary power supply and the reverse power:
• PA T: 30°C - Power amplifier temperature.
• PA V: 30.6V - Voltage of power amplifier power supply.
• AUX: 15.2V - Voltage of auxiliary power supply for the control system and exciter of
the transmitter.
• REV: 0.0W - Reverse power.

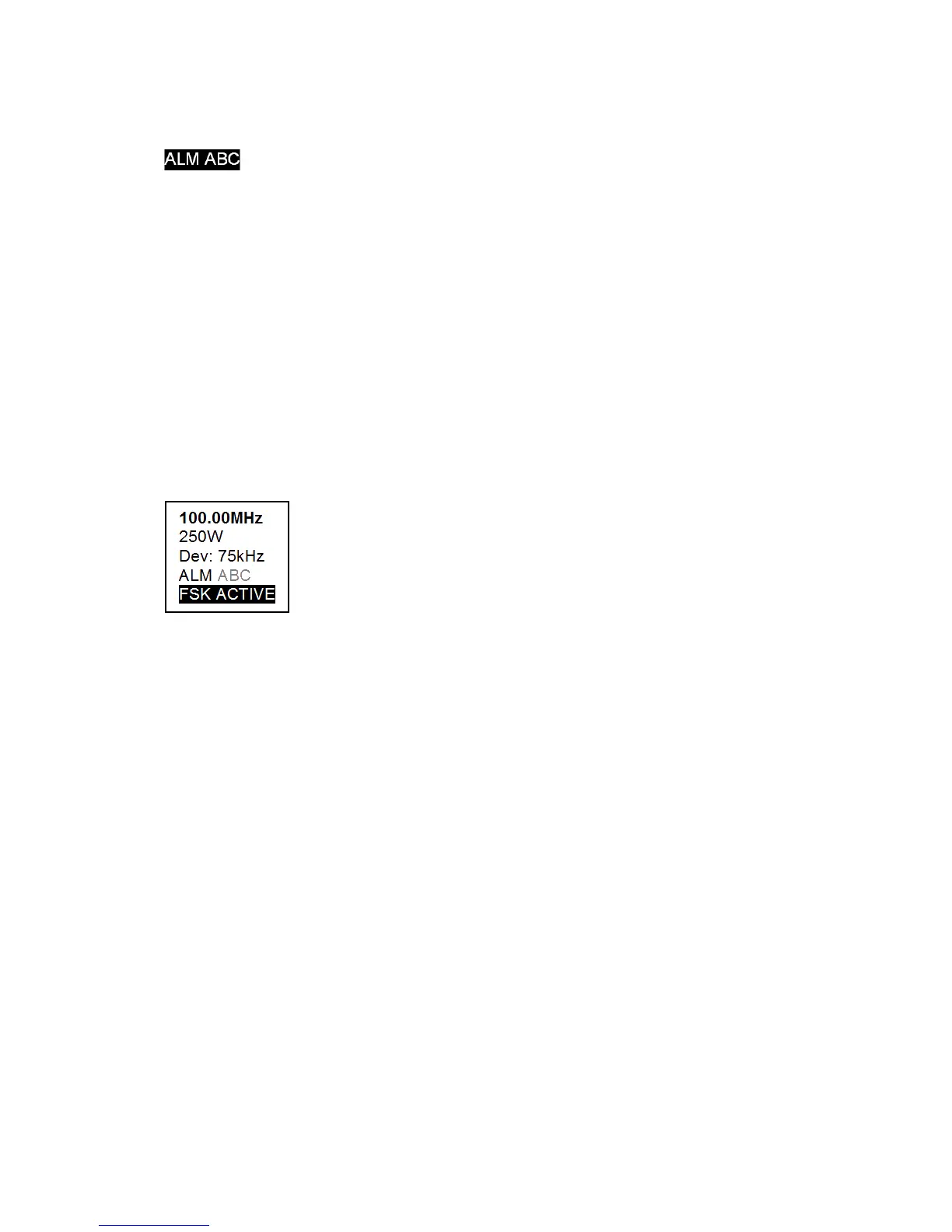

If FSK is enabled, this section will read FSK ACTIVE while the transmitter is keying as shown
below. Do not expect to see this symbol often as it will only display for around 15 sec-
onds every hour.
5.2.2 Menu Box
This is the main section of the user interface. Navigate by rotating the control wheel and se-
lect a menu option by pushing it in. The top button is the back button to move one level up
in the menu structure. The middle button is the help button and will give a brief description
of the function of each menu item. The arrow in the menu (>) indicates the current item is a
sub menu. A map of the entire menu system along with each item’s help description is given
in the appendix at the end of this document.
22
