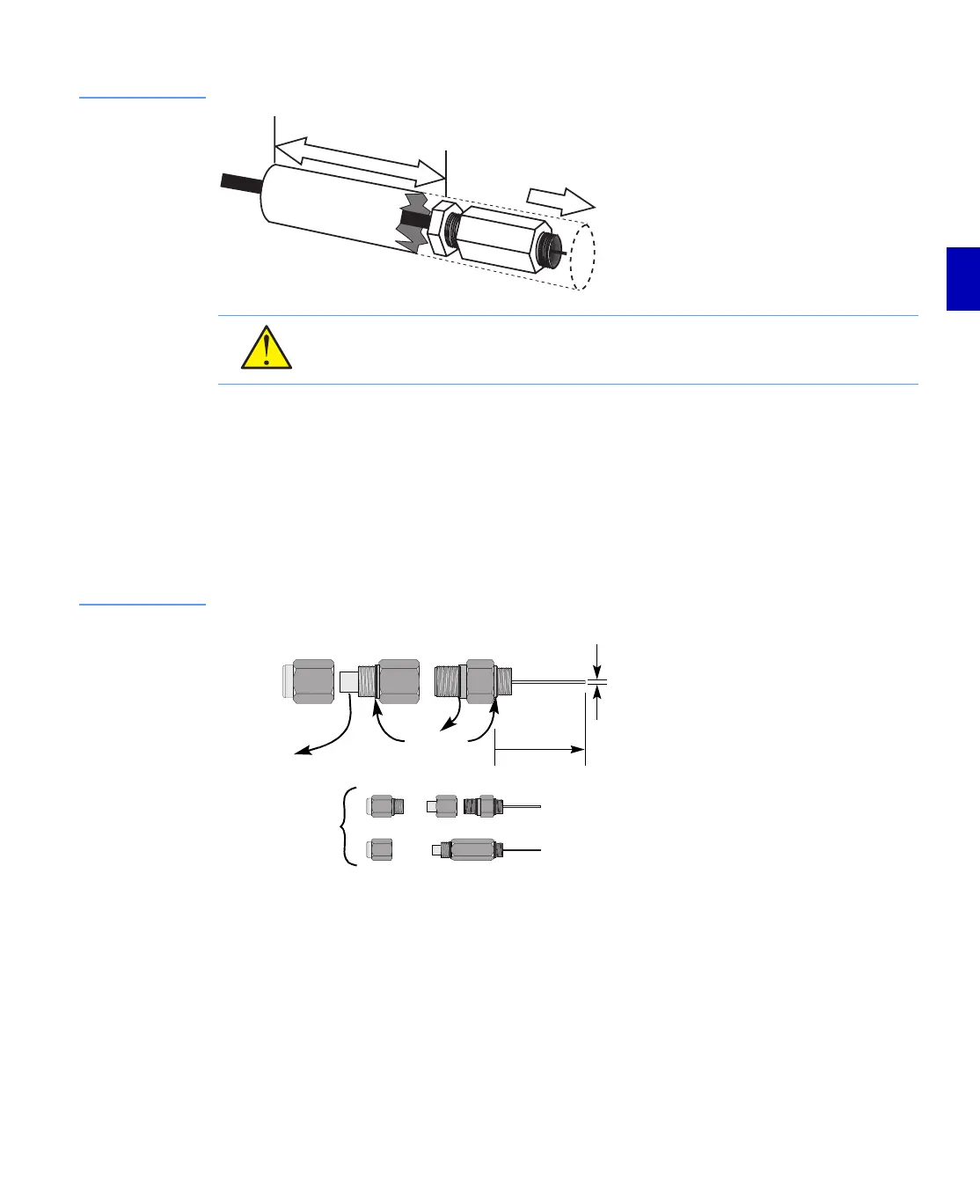

Figure 3.9
Heatshrink Boot
4. Prepare the coaxial cable for attachment:
a. Prepare the cable end as recommended by the connector manufacturer.
b. Measure the center conductor length as shown in Figure 3.10.
c. Ensure that the center conductor length is at least 1 1/8 inches (2.71 cm). If the center
conductor is longer than 1 1/4 inches (3.30cm), trim it with wire cutters to between 1
1/8 and 1 1/4 inches (2.71cm and 3.30 cm) to avoid unintentional signal grounding.
Figure 3.10
Cable Connector
Assembly
5. Apply anti-seize compound to threads and O-ring. Do not use spray lubricant.
CAUTION: Do not use feed-through type connectors. Use pin type connectors only.
Using connectors with center conductors exceeding 0.080 inches (2.03 mm) in diameter
will damage the centerseizure mechanism.
E
n
t
r
y
P
o
r
t
2
i
n
(
5
.
0
8
c
m
)
Back Nut Main Nut
Connector Body
Radiation
Sleeve
O-rings
Variations:
External threads
located on back nut.
Main Nut/Connector Body
Back Nut
Minimum: 1 1/8 in. (2.71cm)
Maximum: 1 1/4 in. (3.30cm)
Not more than
0.080 in.
(2.03 mm)
diameter
