LEGEND Fig. 27
1 52,3 cm
2 114 cm
3 57,5 cm
4 27 cm
5 31,8 cm
6 26,7 cm
7 Exhaust fumes d.8 cm
8 Hole combustion air inlet d.6 cm
9 45°

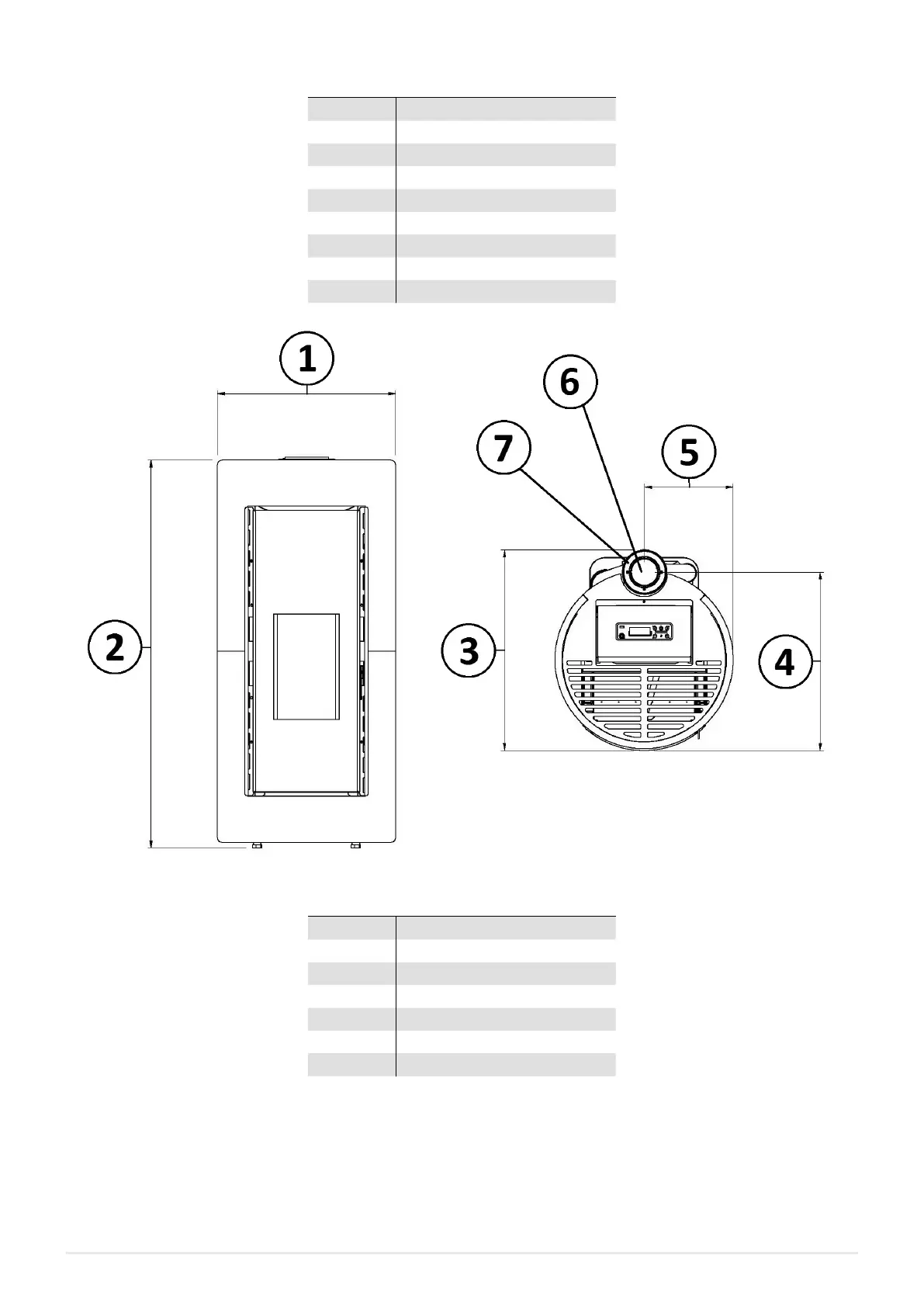

Fig. 28 - General dimensions: Shell
3
Up
LEGEND Fig. 28
1 52,3 cm
2 114 cm
3 60 cm
4 52,2 cm
5 26,1 cm
6 Exhaust fumes d.8 cm
7 Hole combustion air inlet d.6 cm
