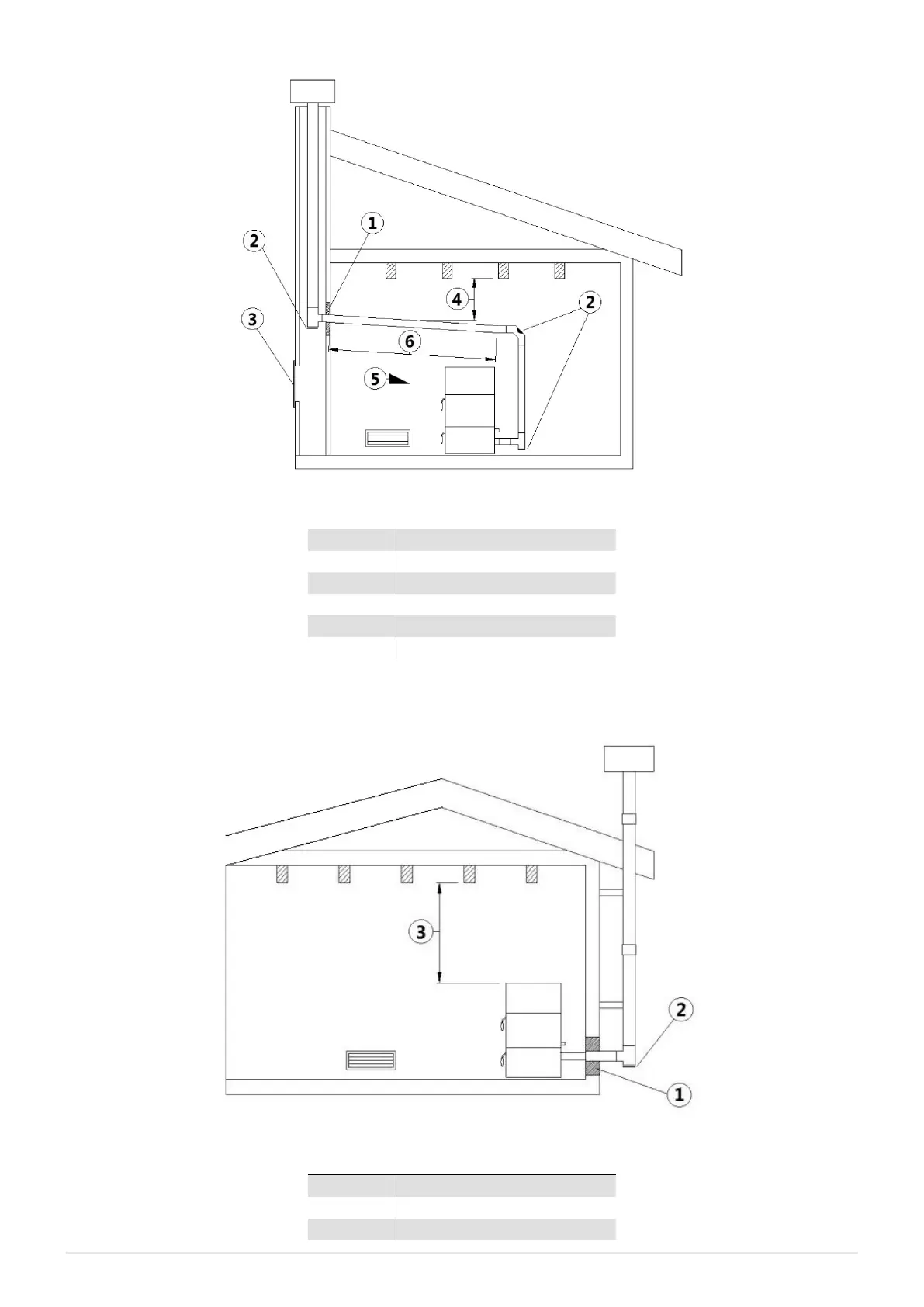

Fig. 8 - Example 2
LEGEND Fig. 8
1 Insulating material
2 Inspection plug
3 Chimney inspection entrance
4 Minimum safety distance = 0,5 mt
5 Inclination ≥ 3°
6 Level section ≤ 1 mt
• Old chimney flue with an inserted pipe of minimum Ø100/120 mm and with an external door which enables the chimney
cleaning.
Fig. 9 - Example 3
LEGEND Fig. 9
1 Insulating material
2 Inspection plug
3 Minimum safety distance = 0,5 mt
