2.5 External Connectors
2.5.1 ANALOG INPUT connectors
The module has 32 channels on single ended ERNI SMC input connector (see
Fig. 2.4).

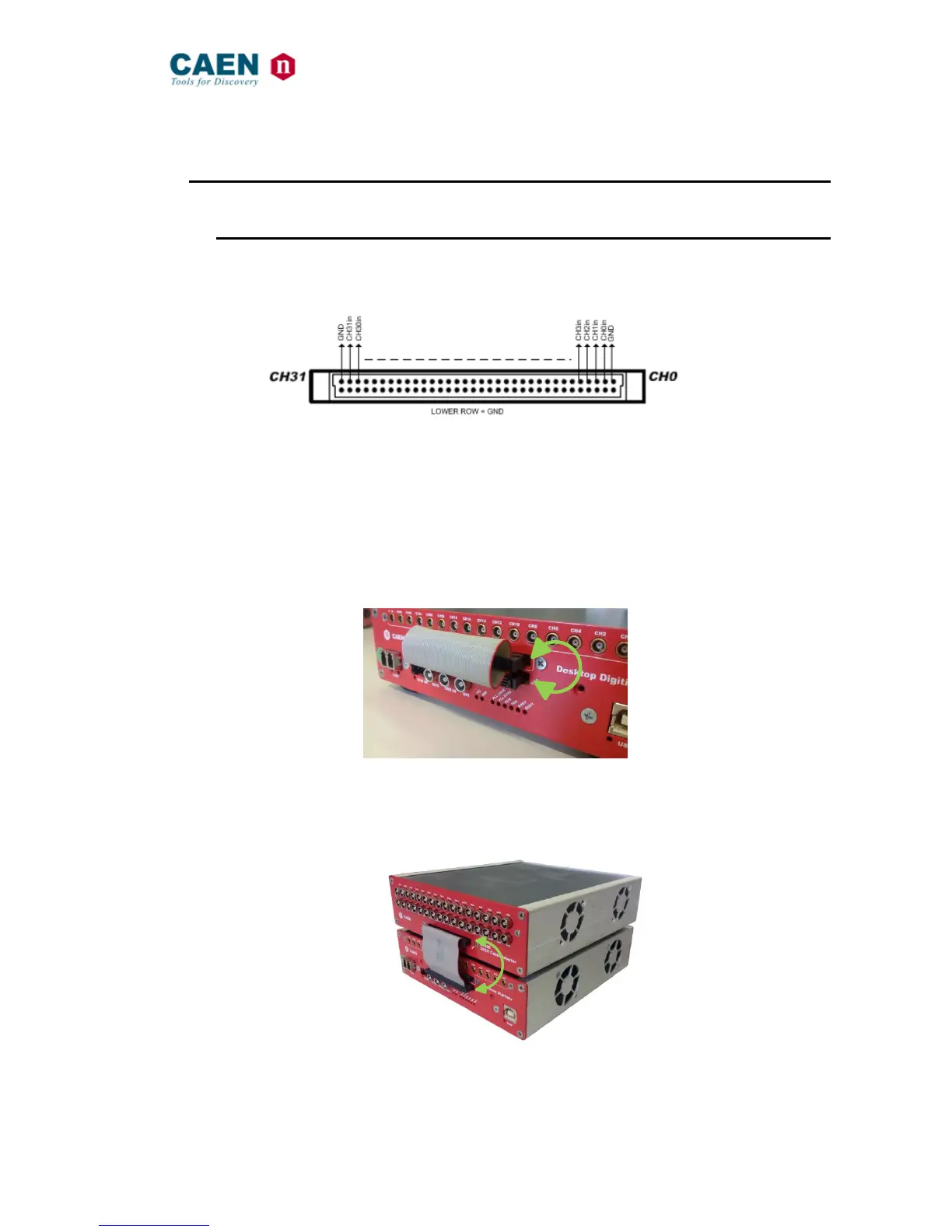

Fig. 2.4: ERNI SMC Connectors
Function: Analog input, single ended, input dynamics: 2V
pp
, Z
in
=50Ω (DT5740C: 10V
pp
Z
in
=1kΩ).
Mechanical specifications:
Two ERNI SMC-114805 Dual Row 68pin connectors.
Even channels (0, 2…30) are also available on MCX coaxial connectors. To use the 16 MCX
channels, the provided flat cable must be plugged between the lower and upper ERNI connectors
(see Fig. 2.5).
Fig. 2.5: Flat cable pug for ERNI to MCX input channels
All 64 channels can be available on as many single-ended LEMO connectors by using the A746E
adapter (see Fig. 2.6).
Fig. 2.6: A746E plug to adapt from ERNI to LEMO input channels
