User's Manual (MUT)
Mod. DT5740 32 Channel 12bit - 65MS/s Digitizer
04/05/2016
12
NPO:
Filename:
Number of pages:
Page:
00100/09:5740x.MUTx/12
DT5740_REV12.DOC
50
32

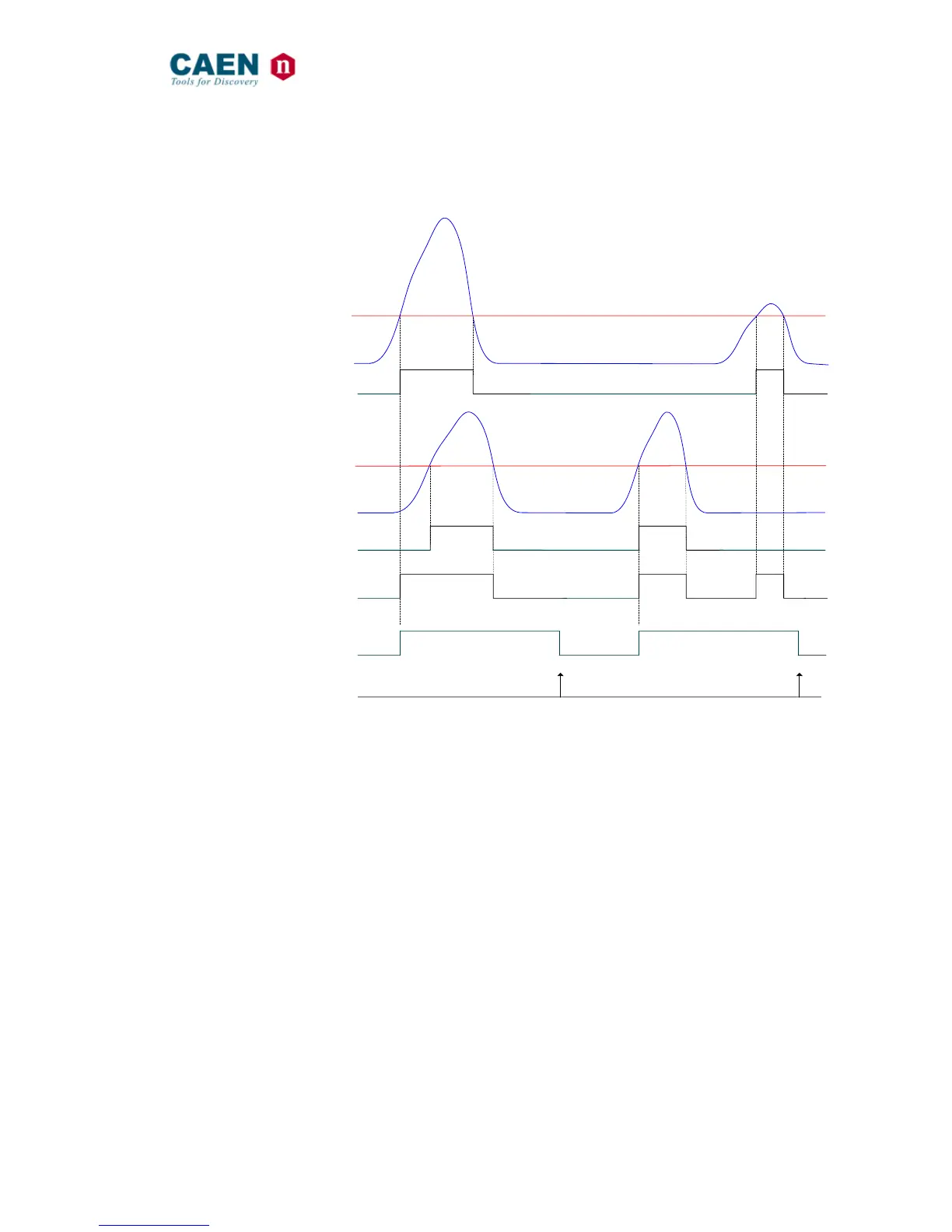

Fig. 3.8 shows the trigger management in case the coincidences are enabled with Majority level =
1 and T
TVAW
is a value different from 0.
GR1 THRESHOLD
TRG_REQ[0]
TRG_REQ[1]
GR0_CHx(enabled) IN
GR0 THRESHOLD
TRIGGER
(Maj.lev = 1)
GR1_CHx(enabled) IN
OR signal
TTVAW
Fig. 3.8: Trigger requests relationship with Majority level = 1 and T
TVAW
≠ 0
NOTE: with respect to the position where the common trigger is generated, the portion of input
signal stored depends on the programmed length of the acquisition window and on the post-
trigger setting.
