Document type:
Title:
Revision date:
Revision:
User's Manual (MUT)
Mod. DT5740 32 Channel 12bit - 65MS/s Digitizer
04/05/2016
12
NPO:
Filename:
Number of pages:
Page:
00100/09:5740x.MUTx/12
DT5740_REV12.DOC
50
9
2 Technical Specifications
2.1 Packaging and Compliancy
The unit is a Desktop module housed in an alloy box (weight: 680 g) with the following
dimensions:
154 W x 50 H x 164 L mm³ (connectors not included)
154 W x 50 H x 171 L mm³ (including connectors).
CAUTION: to manage the product, consult the operating instructions provided.
A POTENTIAL RISK EXISTS IF THE OPERATING INSTRUCTIONS ARE
NOT FOLLOWED!
CAEN provides the specific document “Precautions for Handling, Storage and
Installation” available in the documentation tab of the product web page that
the user is mandatory to read before to operate with CAEN equipment
2.2 Power Requirements
The DT5740 module is powered by the external AC/DC stabilized power supply provided with the
digitizer and included in the delivered kit.
The board’s typical power consumption is 1.9A (@+12V).
NOTE: Using a different power supply source, like battery or linear type, it is recommended the
source to provide +12V and, at least, 2A; the power jack is a 2.1mm type, a suitable cable is the
RS 656-3816 type (or similar).

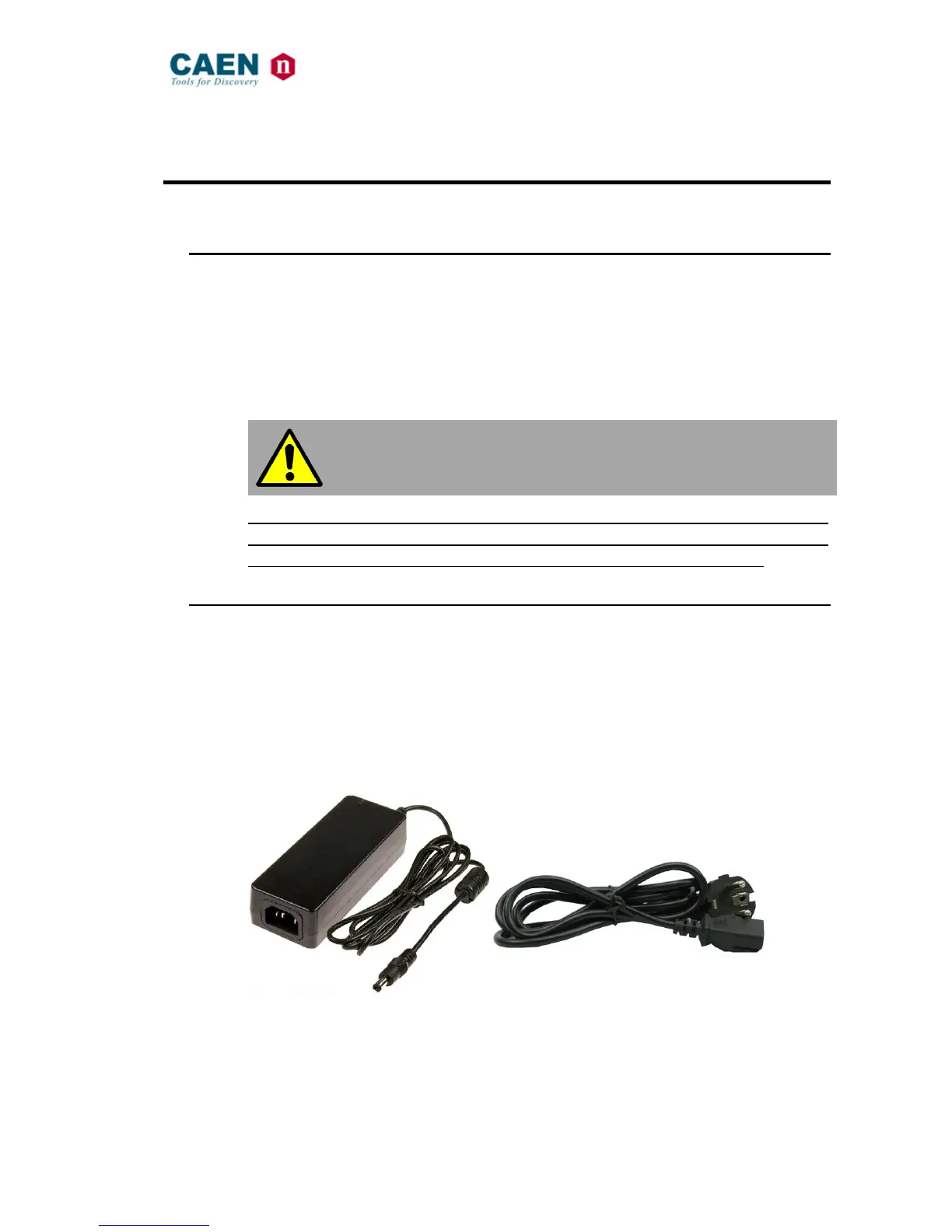

Fig. 2.1: AC/DC power supply provided with the module
