23
Device front / connections
12 3 456 87910
230V/Eingang
230V/Ausgang
12V-Verbraucherausgänge
1/7 12V Verbraucher 1
2/8 12V Verbraucher 2
3/9 12V Verbraucher 3
4/10 Dauerstrom
5 Wasserpumpe
6 Kühlschrank
98710
426
1
3
5
2319 27
16 20 24
17 25
18
21
22 26
SG
AK
Temp.-Sensor
Batterie 2
7 6 5 4 3 2 1
Panel
1- minus
2- Test Batt. 2
3- Test Batt. 1
4- Verbraucher-Relais
5- Ladekontrolle
6- Trematsignal
7- Pumpenrelais
12V-Eingänge
Batterien
16
Ladestrom
17 Batterie 2
18 D+
19 B+ Sense
20
21–
+Batterie 2
22
23 N.C.
24
minus
25
26
+Batterie 1
27
Potentialausgleich

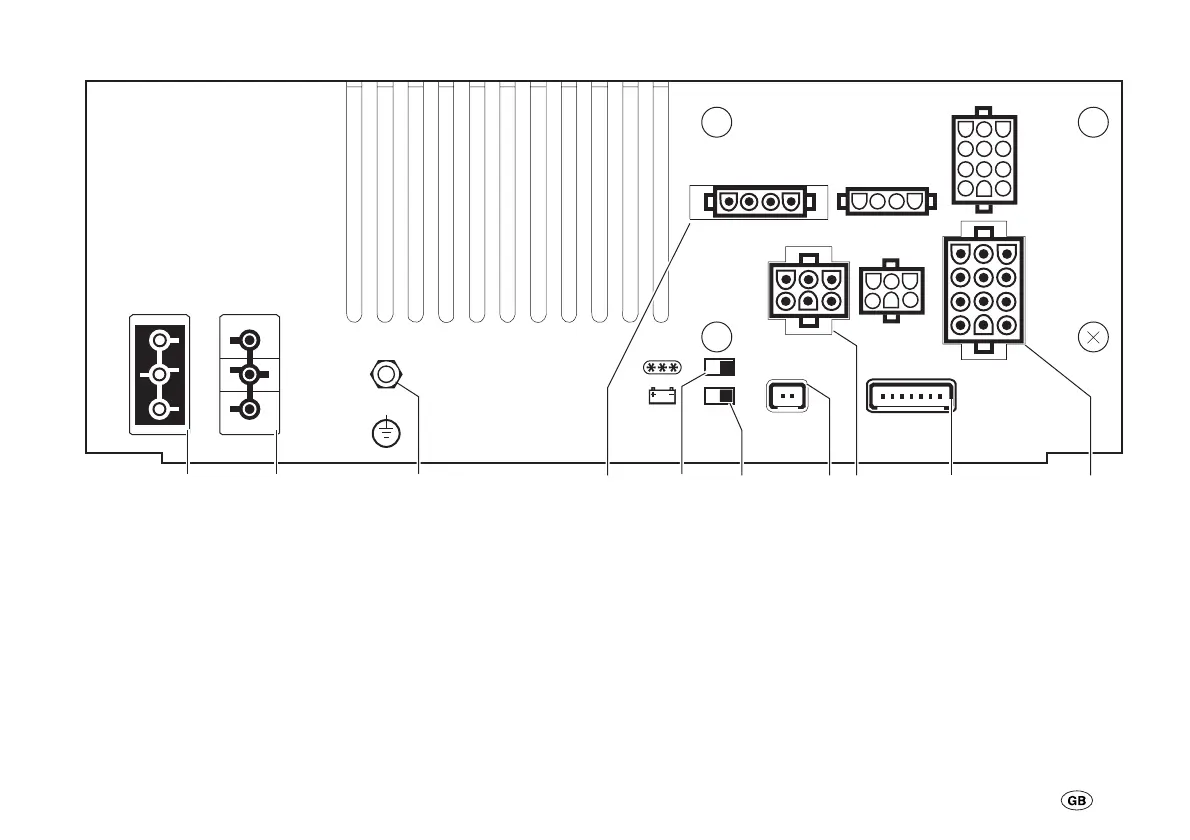

Fig. 4: Device front / connections
1 230 V input
2 230 V output
3 Potential equalisation
4 12 V output consumer
5 Refrigerator absorber changeover
switch – compressor
6 AGM / gel battery changeover switch – liquid electrolyte
battery
7 Connection for temperature sensor
8 12 V output consumer
9 Board Control connection
10 12 V battery input
See connection section for more details!
