30
Connecting the plug connectors
If the cable length exceeds 3 m, it may be advisable to increase
its cross-section by one step. The plug connectors can only
be inserted and locked into the correct socket and in the cor-
rect position. Make sure that the locking engages securely. To
withdraw the connector plug, the locking must be released by
pressing the two wings together.
Connecting a 6-pole plug connector

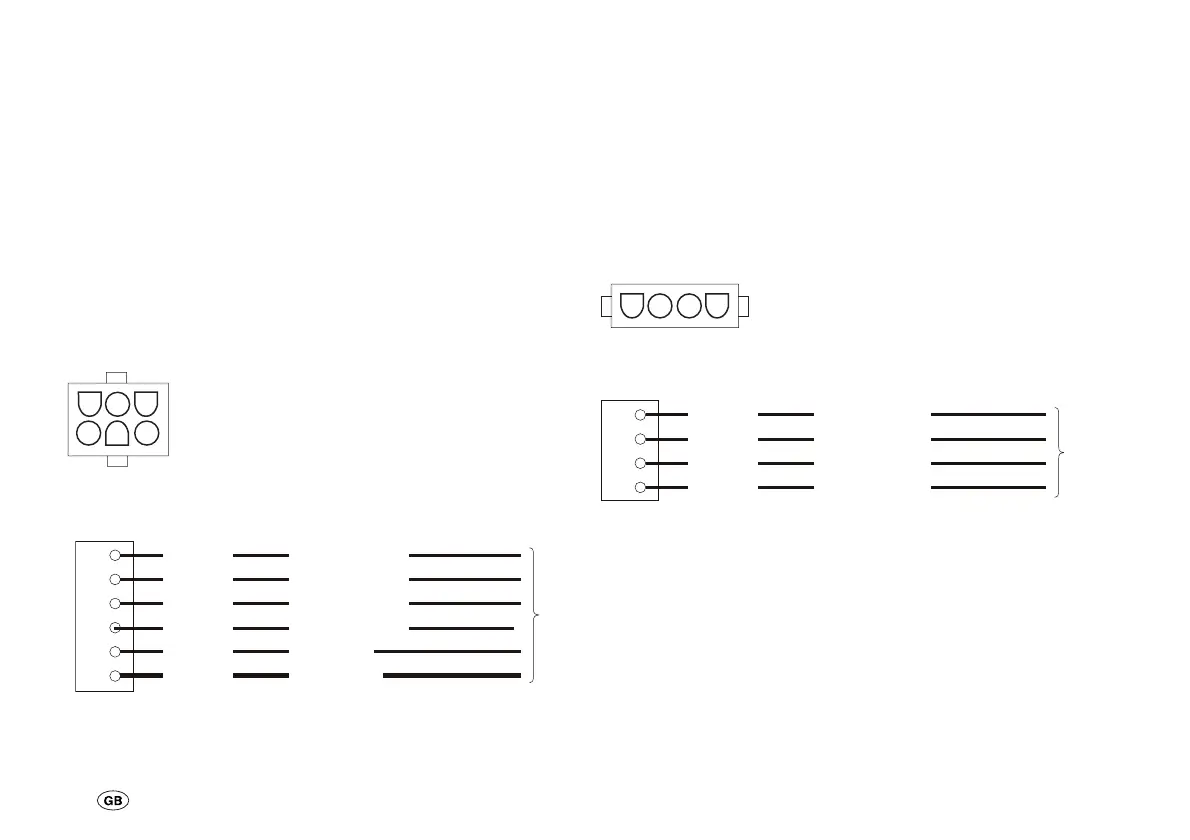

Fig. 9 shows the contacts available in the 6-pole plug connec-
tor (view of device side). Connect the 6-pole plug connector
according to the connection diagram. Make sure that the
contact pins engage securely with the plug connector! Loose
contact pins can lead to malfunctions or short-circuiting.
426
135
First connect the cables to your users,
refrigerator, heating etc. Only then make the
connection to the device. Insert the 6-pole
plug connector into the socket provided on
the device (fig. 4, pos. 8).
Fig. 9: 6-pole connector
1
2
3
4
5
6
1.5 mm
²
+ 12 V Consumer 1
2.5 mm
²
+ Refrigerator
1.5 mm
²
Water pump
1.5 mm
²
1.5 mm
²
+ 12 V Consumer 3
to the distributor
1.5 mm
²
+ 12 V Consumer 2
Permanent current
Fig. 10: Connection diagram 6-pole plug connector
Connecting a 4-pole plug connector
Fig. 11 shows the contacts available in the 4-pole plug con-
nector (view of device side). Connect the 4-pole plug connec-
tor according to the connection diagram.
Make sure that the contact pins engage securely with the plug
connector! Loose contact pins can lead to malfunctions or
short-circuiting.
98710
First connect the cables to your consu-
mers. Only then make the connection to
the device. Insert the 4-pole plug con-
nector into the socket provided on the
device (fig. 4, pos. 4).
Fig. 11: 4-pole connector
7
8
9
10
1.5 mm
²
+ 12 V Consumer 1
1.5 mm
²
Permanent current
1.5 mm
²
+ 12 V Consumer 3
to the distributor
1.5 mm
²
+ 12 V Consumer 2
Fig. 12: Connection diagram 4-pole plug connector
