27
Height
115 mm
Weight
2,1 kg (21 N)

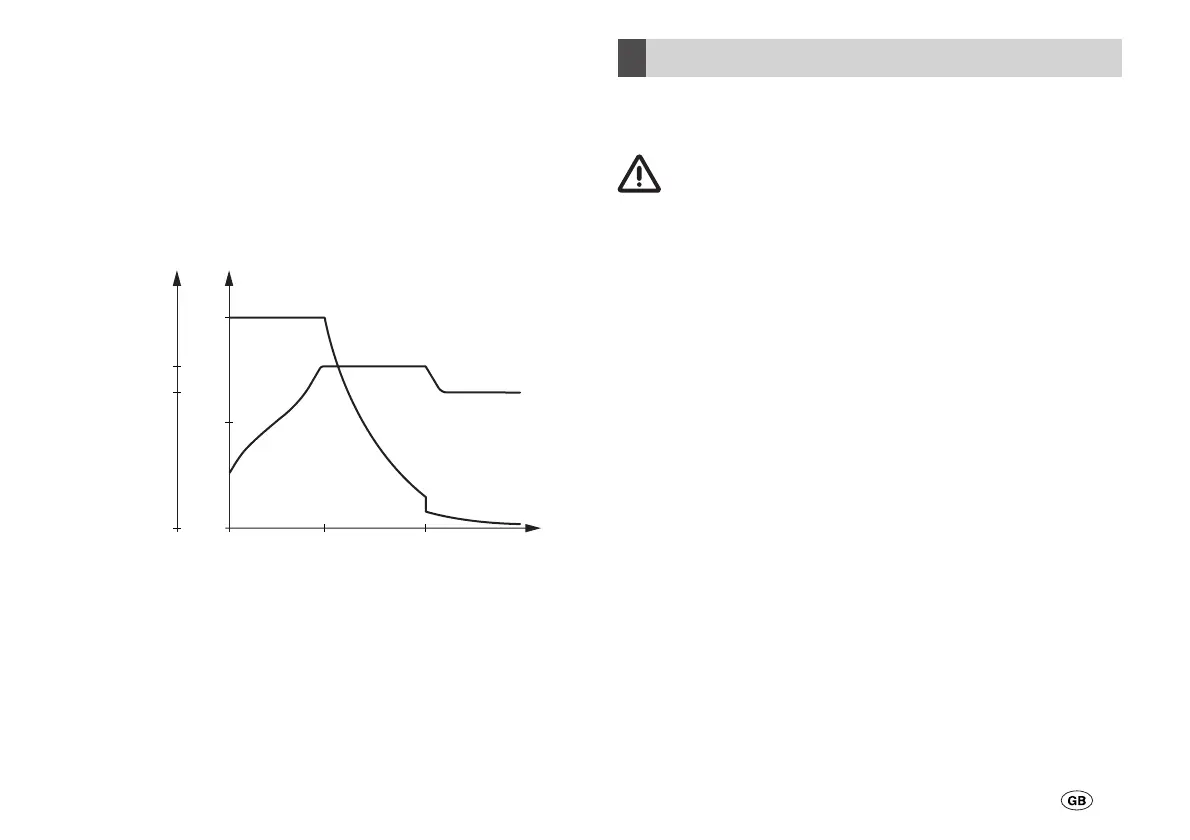

Charging characteristic curve
HL = Bulk phase
NL = Absorption phase
EL = Float phase
13,8
0
U[V]
14,4
0
50
100
I[%]
I
U
t[h]ELNLHL
Fig. 5: Charging characteristic curve (schematic diagram)
The right to make technical modifications is reserved.
Installation instructions
Safety instructions
This device contains components that may generate
sparks or electric arcing!
Connecting the device to the power supply must comply with
the applicable national installation regulations.
This device contains components that may generate electric
arcing and sparks. Therefore when operating the device in a
garage or a similar location, it must be contained in a room or
housing designed for this purpose!
If the device is used in campers, caravans and boats, the
device and the battery must be installed apart in separate and
well-ventilated boxes!
The installation and connection of electrical apparatus must
always be performed by appropriately trained personnel!
Always make sure that the power supply is disconnected! Pull
out the mains plug!
When connecting the device, use only the supplied parts and
the specified cable cross-sections and fuses!
Only use suitable and undamaged tools.
Only connect the device according to the supplied connection
diagram!
