WIRE THE OPERATOR(S) TO THE CONTROL
PANEL
1
Turn off the AC power from the main power source circuit breaker.
2
Insert the cables through a watertight connector mounted in the back of the
control panel.
3
Determine the open and close limit microswitch wires (Figure 1). Wire the
motor and microswitch wires as shown according to your application
(Figure 2).
4
Connect 120 Vac power to the power supply terminals on the electronic card,
50/60Hz frequency maximum.
5
Tighten watertight connector nut.
Do not apply AC power until instructed.
NOTE: The electronic card is equipped with an amperometric sensor which
constantly monitors the motor’s drive. If the gate encounters an obstacle, the sensor
immediately detects the overload on the operator and the gate reverses.
WIRE THE OPERATOR(S) TO THE CONTROL PANEL
WIRING

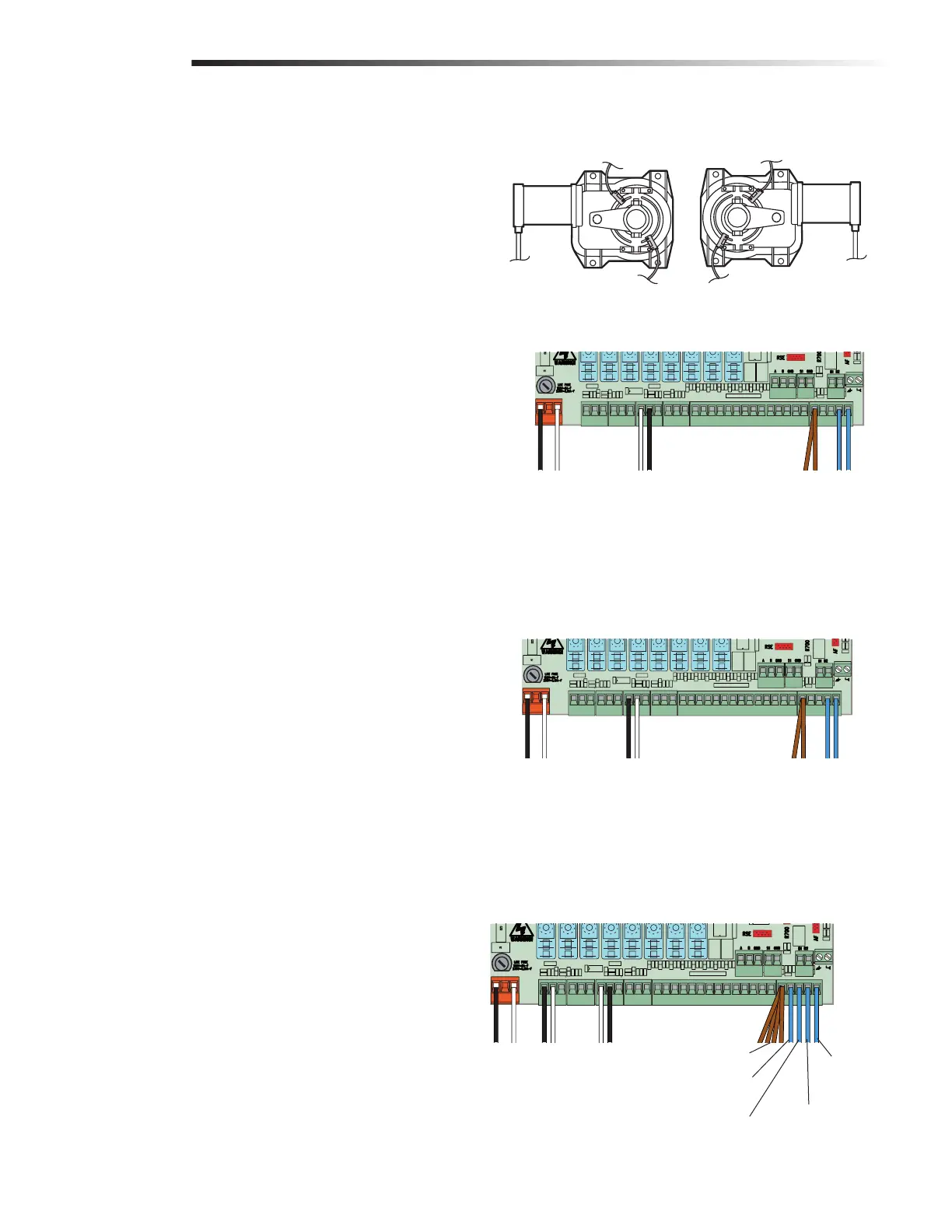

Figure 2: Single Gate Operator (Right-Hand)
Figure 2: Dual Gate Operators
N2 (Black Motor Wire) M2 (White Motor Wire)
2 (Brown Wires)
120 Vac Power
FA2 (Blue Open Limit Microswitch Wire)
FC2 (Blue Close Limit Microswitch Wire)
N2 (Black Motor Wires) M2 (White Motor Wires)
2 (Brown Microswitch Wires)
120 Vac Power
FA1 Left Hand Operator
(Blue Microswitch Open
Limit Wire)
FC1 Left Hand Operator
(Blue Microswitch Close
Limit Wire)
FA2 Right Hand Operator
(Blue Microswitch Open
Limit Wire)
FC2 Right Hand Operator
(Blue Microswitch Close
Limit Wire)
N1 (White Motor Wires) M1 (Black Motor Wires)
Figure 2: Single Gate Operator (Left-Hand)
N2 (White Motor Wire) M2 (Black Motor Wire)
120 Vac Power
Right-HandLeft-Hand
Motor Wires
Microswitch (Close Limit)
Microswitch (Open Limit)
Microswitch (Open Limit)
Motor Wires
Microswitch (Close Limit)
2 (Brown Microswitch Wires)
FA2 (Blue Open Limit Microswitch Wire)
FC2 (Blue Close Limit Microswitch Wire)
Figure 1
