CAME Frog-A 24U - Operator and Control Panel Dimensions

8
INTRODUCTION

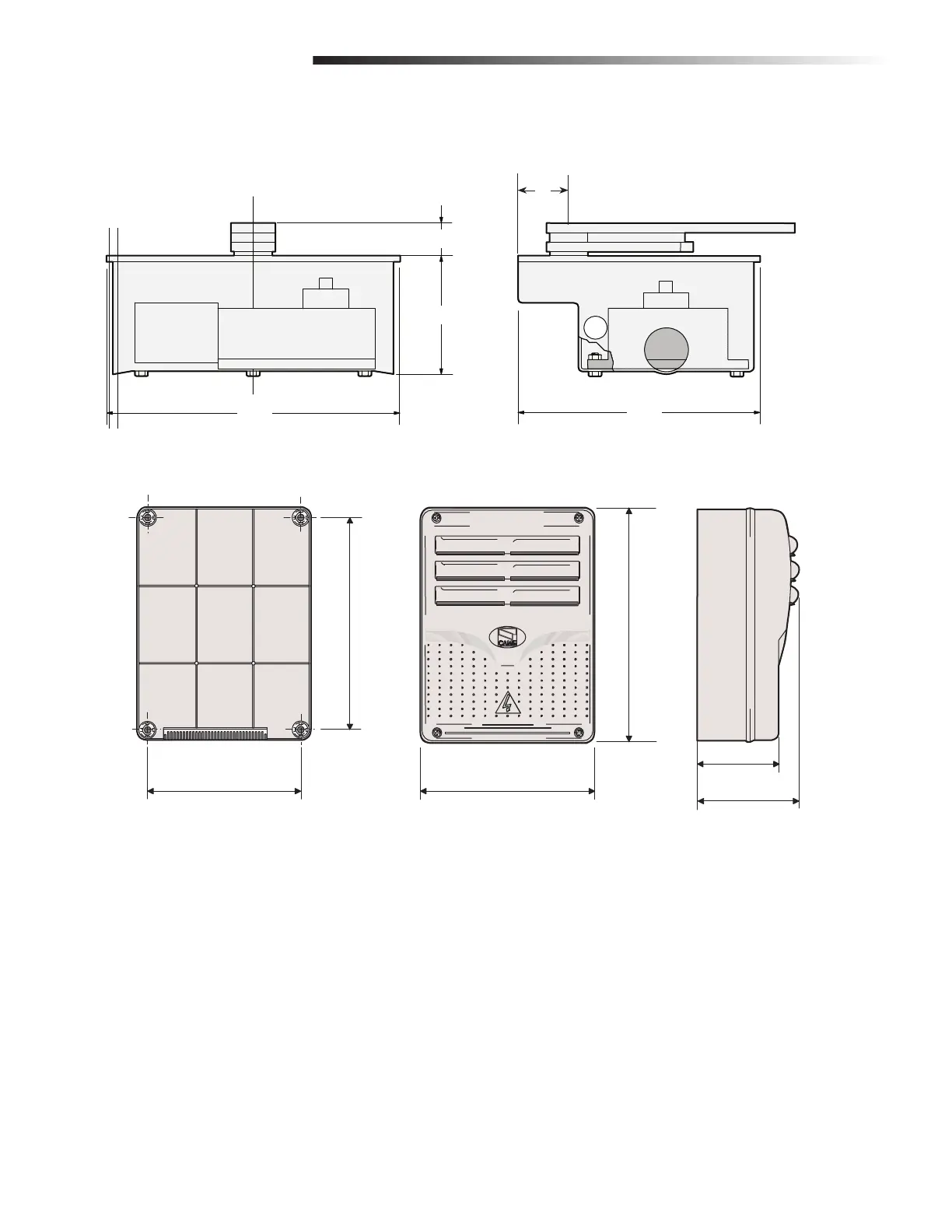

OPERATOR AND CONTROL PANEL DIMENSIONS
OPERATOR AND CONTROL PANEL DIMENSIONS
16"
(40.63 cm)
13"
(33 cm)
6.2" (15.74 cm)
2.3" (5.84 cm)
2.6"
11.61" (29.48 cm)
12.60" (32 cm)
8.46" (21.48 cm) 9.45" (24 cm)
5.71"
4.72"
(11.98 cm)
(14.50 cm)
CONTROL PANEL
OPERATOR
(6.60 cm)
