WARNING DEVICES

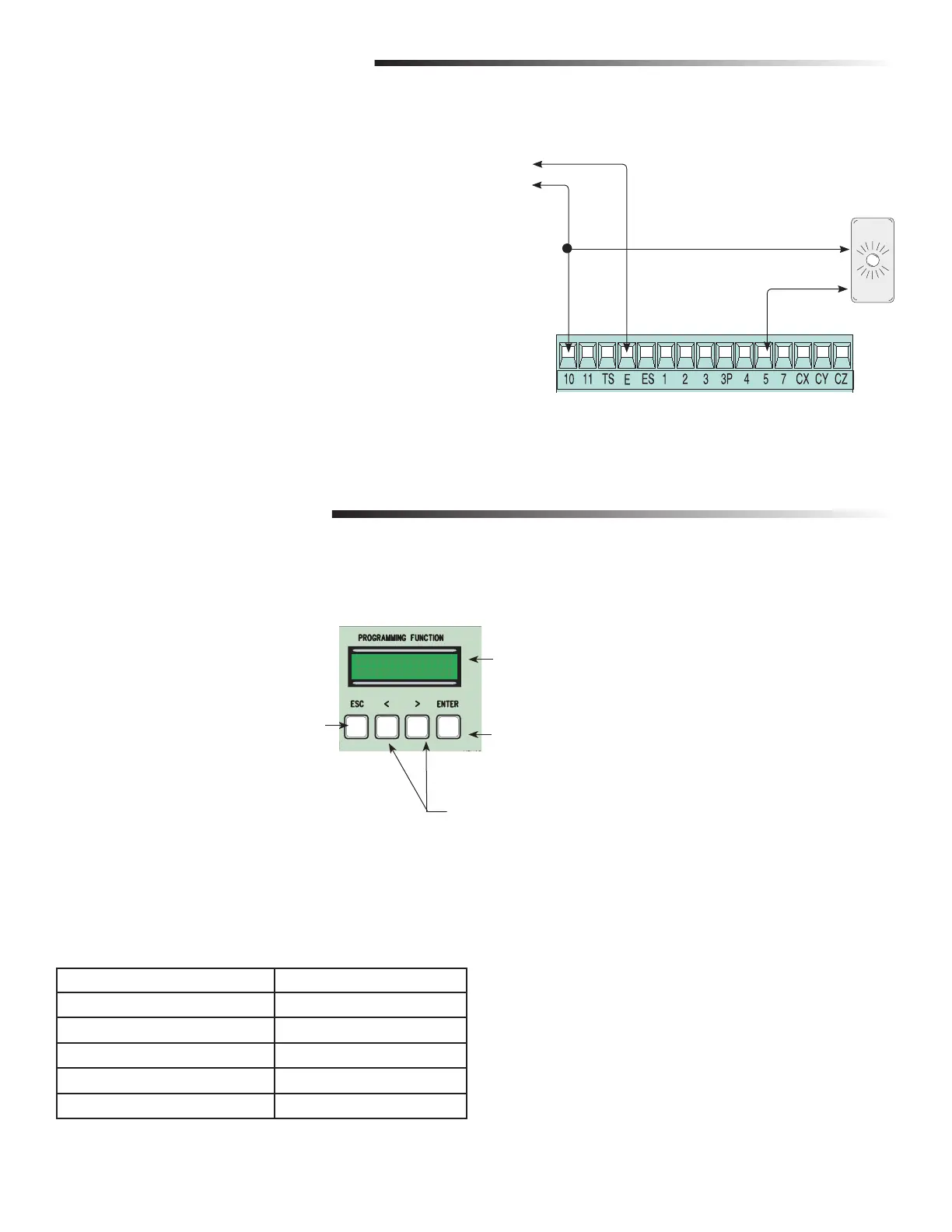

Open-gate indicator light
• Signals that gate is open; turns off when the gate is closed.
• Contact power: 24V A.C. - 25W maximum
• Socket rating 24V-3W maximum
NOTE: If the operator detects two sequential obstructions while running, the
electronic card activates the warning device and blocks the signal from the remote
control for 5 minutes. After 5 minutes, the alarm is deactivated and the signal for the
remote controls are restored and the PROG LED goes off. To restore normal operation
prior to the 5 minutes, press the total stop key and the PROG LED goes off.
APPLY AC POWER TO THE OPERATOR AND PROCEED TO
THE PROGRAMMING SECTION TO COMPLETE THE
OPERATOR CONFIGURATION.
WARNING DEVICES
OPTIONAL WIRING
PROGRAMMING
USING THE MENU + FACTORY SETTINGS (DEFAULTS)
PROGRAMMED FUNCTIONS FACTORY DEFAULTS
Total stop Enabled (NC stop)
CX, CY, and CZ Contacts Enabled
Speed 100%
Automatic Close Timer (ACT) 10 seconds
Motor Frog
FACTORY SETTINGS (DEFAULTS)
Warning
Device
Lingua
Italiano
Þß
{
{
The ENTER button is to:
• press and hold for 1 second to enter the menu
• confirm and set values
The ESC button is used to:
• exit the menu
• cancel changes
The < > buttons are used to:
• move from one menu to another
• increase or decrease values
The <...> symbols on the display
indicate the current selection.
{
{
