16
WIRE THE ENTRAPMENT PROTECTION DEVICES
WIRING
WIRE THE ENTRAPMENT PROTECTION
DEVICES
EDGE SENSORS (CONTACT)
An entrapment protection devices such as photoelectric sensors or an edge MUST be
wired to the operator and then configured for your application using the
programming menu. Refer to page 18 - page 21 for programming information.
Configure either CX, CY, or CZ (N.C.) contacts.
C7 “OPEN WHILE CLOSING” (N.C.) Contact
This input functions to reverse the gate to the open limit when activated during the
close cycle.
NOTE: If not used, deactivate.
C8 “CLOSE WHILE OPENING” (N.C.) Contact
This input functions to reverse the gate to the close limit when the edge is activated
during the opening cycle.
NOTE: If not used, deactivate.

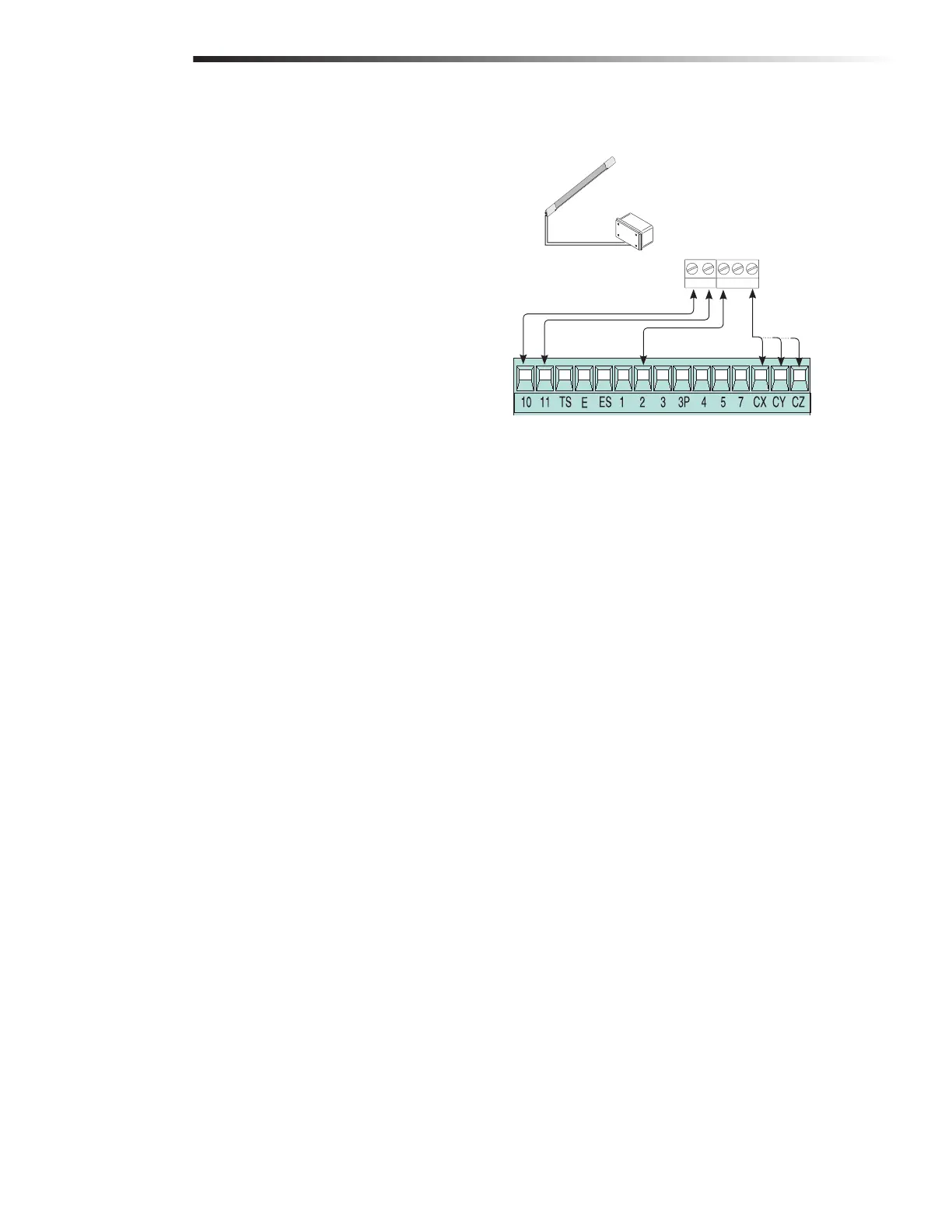

CNONC
Two-wire normally open edge
Wireless Communicator
Transmitter
24V C
PWR Relay
Receiver
To Next Page
