01/2012 © CAME cancelli automatici s.p.a. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.a. to notify said changes.
ENGLISH
1 ON - Automatic closing - The automatic closing timer activates at the closing endpoint. The preset time is adjustabel, but it's in
any case subject to any safety device intervention and does not activated after a Total Stop or in case of power failure (1 OFF -
deactivated);
2 OFF - Function "opens-closes" with Button and Radio transmitter (with Radiofrequency card insert.).
2 ON - Function "only" with Button and Radio transmitter (with Radiofrequency card insert.).
3 ON - 24 V output on contact (10-E) barrier arm in movement and in closed position;
3 OFF- 24 V output on contact (10-E) barrier arm in movement;
4 ON - Maintained action - the barrier works by keeping the button pressed, a button 2-3 for opening, a button 2-7 for closing (position
jumper n. 14 as shown in fi gure 16).
5 ON - Pre-fl ashing when opening and closing - After either an opening or closing command, the fl ashing light and/or luminous cord
conencted on [10-E], fl ash/es for 5 secodns before cycle start.
6 ON - Obstacle detection - With motor idle (barrier arm closed, open or after a total stop command), it prevents any movement if the
safety devices (e.g. photocells) detect an obstacle.
7 ON - "Slave" function - To be activated when having two combined barriers (see the Connecting two combined barriers
paragraph);
8 OFF - Immediate closing dell’asta ( - Automatic closing of barrier arm after obstacle passes within operating range of safety devices.
Insert safety device on [2-C5]; if unused, set DIP switch to ON.
9 OFF - Total stop - - This function stops the door and then excludes any automatic closing cycle; use either the buttons or transmitter
to resume movement. Connect button on [1-2]; if unused, set DIP switch to ON .
10 ON - Braking action - Increase braking action of the closing barrier arm (10 OFF - deactivated)

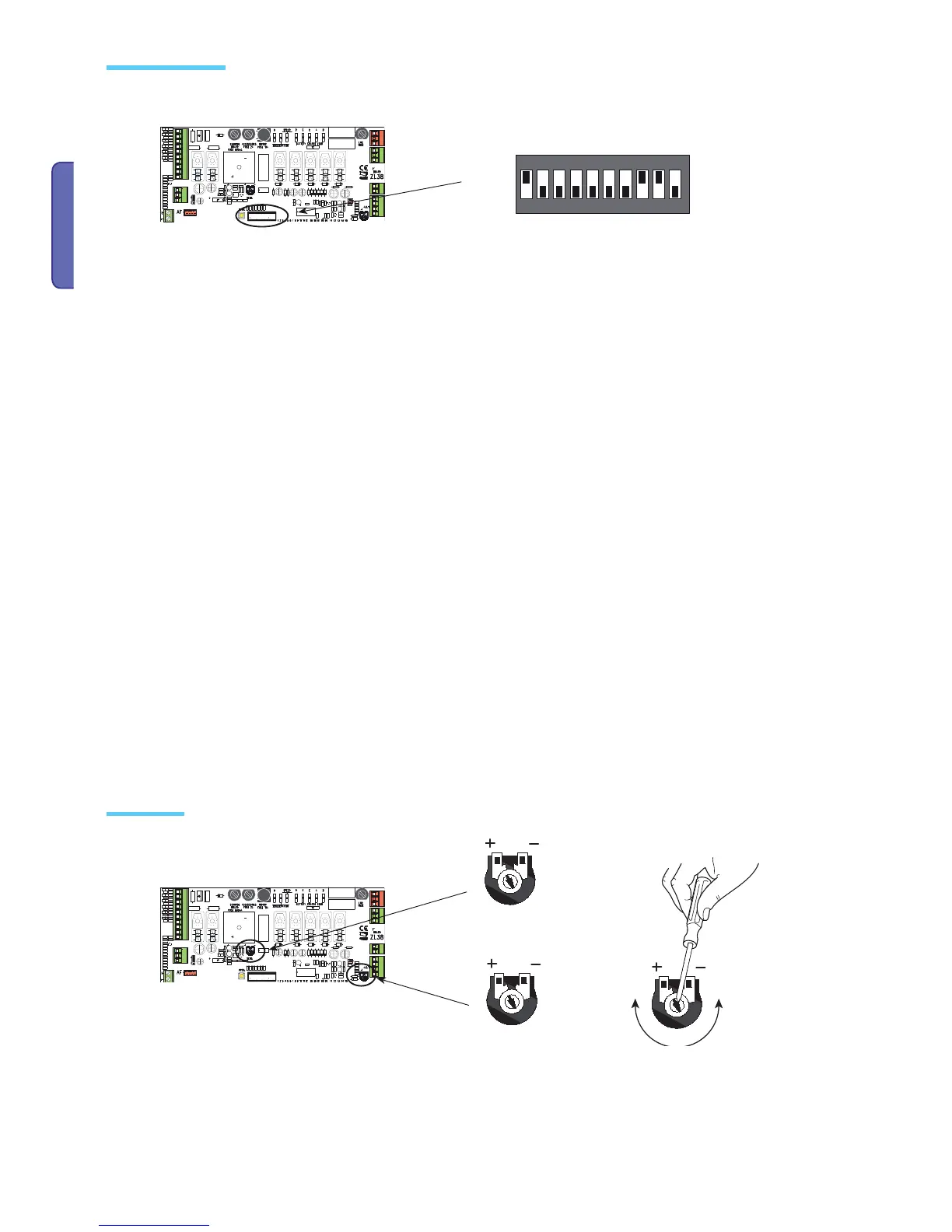

LIST TRIMMER Adjustments:
- «A.C.T.» Adjusts opening waiting time. The gate closes automatically once this time-frame has elapsed. The waiting time may be
adjusted from 1 second to 120 seconds.
- «SENS» Adustes the amperometric sensitivity which controls the force developed by the motor during movement; if the force
exceeds the adjusted level, the system intervenes and inverts the direction of travel.
Default setting
Adjustments
Selecting functions
