(N.C.) contact. di riapertura durante la chiusura»

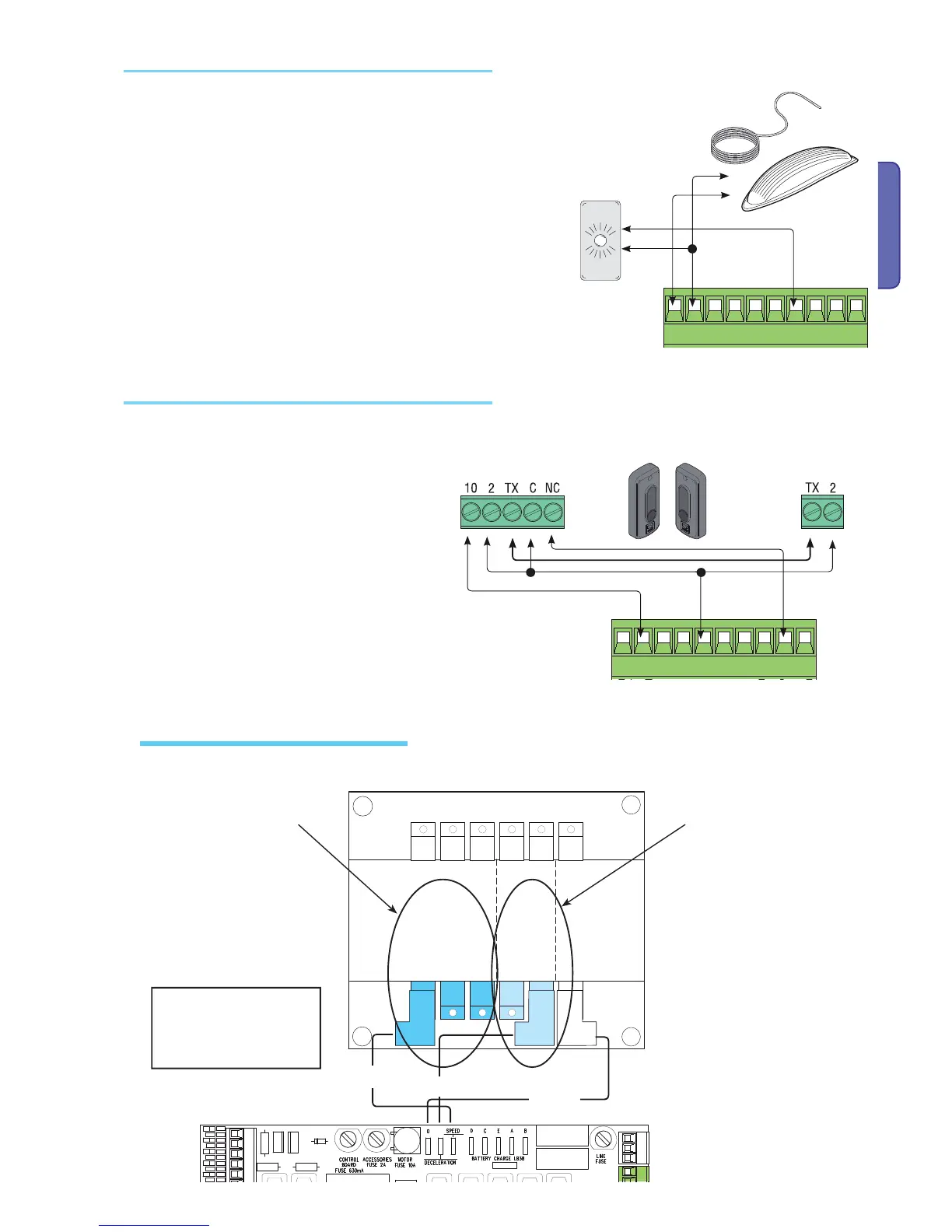

- Input for safety devices like photocells, compliant with
law EN 12978. While the gate is closing, opening the
contact will invert movement until it is fully openend.
If unused, short-circuit contact 2-C1.
DIR photocells
Safety devices
Per regolare la velocità di
opening (°) e chiusura, sposta-
re il faston del trasformatore
indicato con "A" su
[Speed] -> [Min.]/[Max..].
To ajust the slow-downs
,
move faston " B" to
[Slow down.] -> [Min/Max.].
Black
White
Red
Flashing light for open barrier Contact rated for: 24 V - 3 W Max.)
- Signals that barrier-arm is raised, and switches of when the barrier-arm is
lowered.
Flashing dome light and/ir luminous cord (Contact rating: 24 V - 32 W Max.) - Flashes while door
opens and closes.
Warning devices
[Min.] = minimum
[Med.] = medium
[Max.] = maximum
Adjusting manoeuvring and braking speeds
