CAME GARD 4 SERIES User Manual

#
#
8
CAME
CAME
CAME
CAME
7
1
2
3
4
5
7
12
11
8
9
2
3
4
6
5
13
1
14
10
6
9
10
11
15
Page
5
-
Manual code:
119 G U5 5
119 G U5 5 ver.
1.1
01/2012
© CAME cancelli automatici s.p.a. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.a. to notify said changes.
ENGLISH

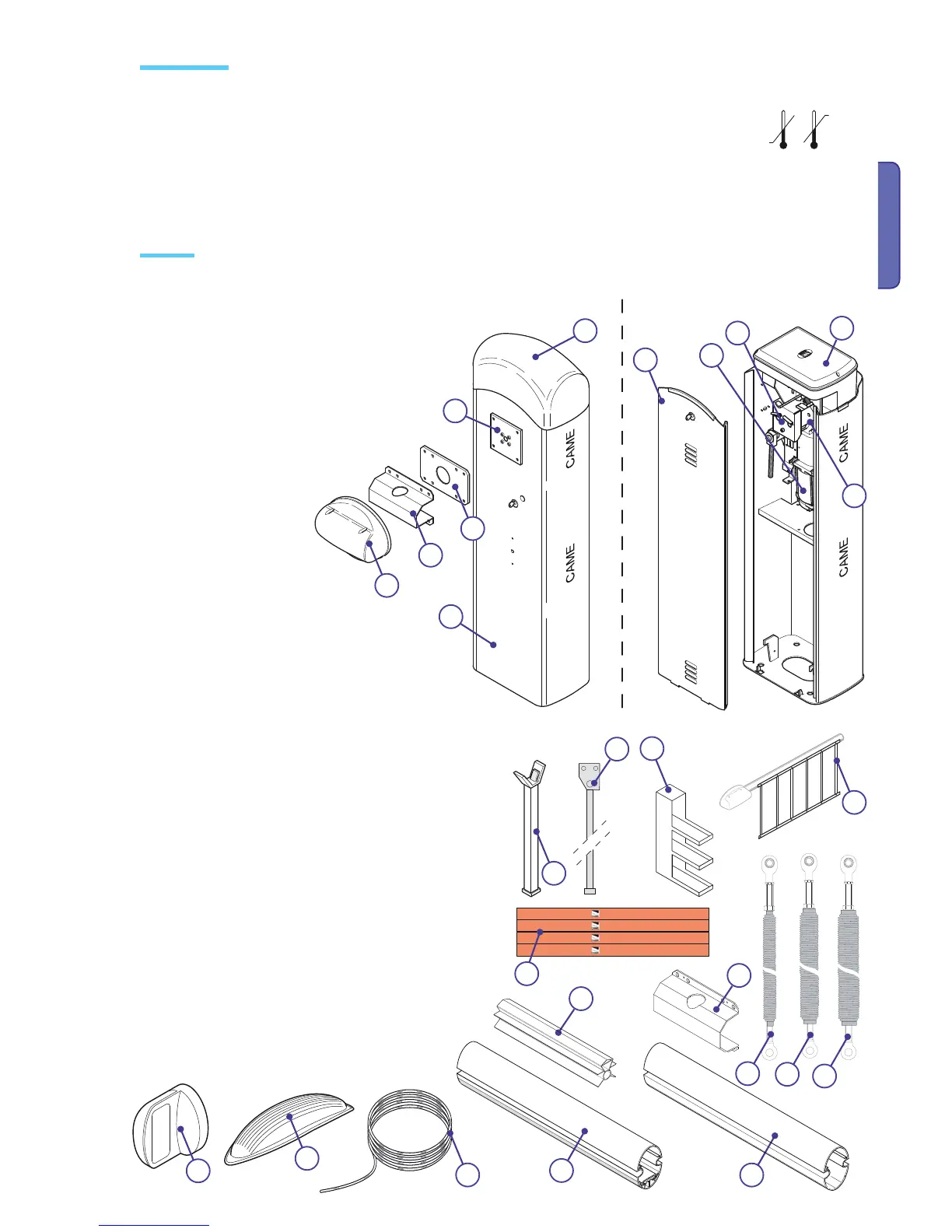

OPERATOR ASSEMBLY UNIT
ACCESSORIES
1) G03750 - aluminium white-varnished semi-rounded barrier arm L =
4 m.
2) G03752 - aluminium white-varnished rounded barrier arm L = 4 m.
3) G02040 - Balancing spring Ø40 (yellow)
4) G04060 - Balancing spring Ø50 (green)
5) G06080 - Balancing spring Ø55 (red)
6) G0465 - Swing skirt
7) G02802 - Support for DIR photocells
8) G028401 - Luminous cord
9) G02807 - Fixed support
10) G02808 - Swing rest
11) Red refl ective-strips stickers
12) G02801 - Flashing dome-light
13) G03751 - Emergency battery housing support
14) G03753 - Attachment fl ange for rounded barrier-arm
15) G03756 – Internal reinforcement for the G03750 semi-rounded
barrier
11 -
BARRIER-ARM ATTACHEMENT
VIEW
INSPECTION HATCH VIEW
GEARMOTOR
Power supply: 230V A.C. 50/60 Hz
Motor power supply: 24V D.C. 50/60 Hz
Assorbimento Max.: 1.3A (230V) / 15A (24V)
Potenza: 300 W
Max. torque: 600 Nm
Reduction ratio: 1/202
Opening interval: 2÷6 S
Duty cycle: intensive
Protection rating: IP54
Peso: 55 kg
Insulation class: I
1) Upper dome
2) Shaft plate
3) Barrier-arm attachment mid-plate
4) Semi-rounded arm-attachment cover
5) Anti-shearing protective cover
6) Galvanised or painted stainless-steel cabinet
7) Inspection hatch
8) Gearmotor
9) Lever arm
10) Limit-switch assembly
11) ZL38 control panel
Technical data
Parts list

CAME GARD 4 SERIES Specifications

General

Power Supply	230V AC
Motor Power	300W
Operating Temperature	-20°C to +55°C
Protection Rating	IP54
Model	GARD 4
Type	Barrier Gate
Boom Length	4 meters
