CAME GARD 4 SERIES User Manual

2
1
7
3
4
5
6
8
9
10
11
12
13
Page
7
-
Manual code:
119 G U5 5
119 G U5 5 ver.
1.1
01/2012
© CAME cancelli automatici s.p.a. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.a. to notify said changes.
ENGLISH
N.B. If cables are of a different length than that shown in the table, determine the cable section based on the actual draw and the number
of connected devices and according the what is set forth in the CEI EN 60204-1 code of regulations.
Per i collegamenti che prevedano più carichi sulla stessa linea (sequenziali), il dimensionamento a tabella deve essere riconsiderato sulla
base degli assorbimenti e delle distanze effettivi. When connecting products not featured in this manual, only refer to the literature ac-
companying such products.

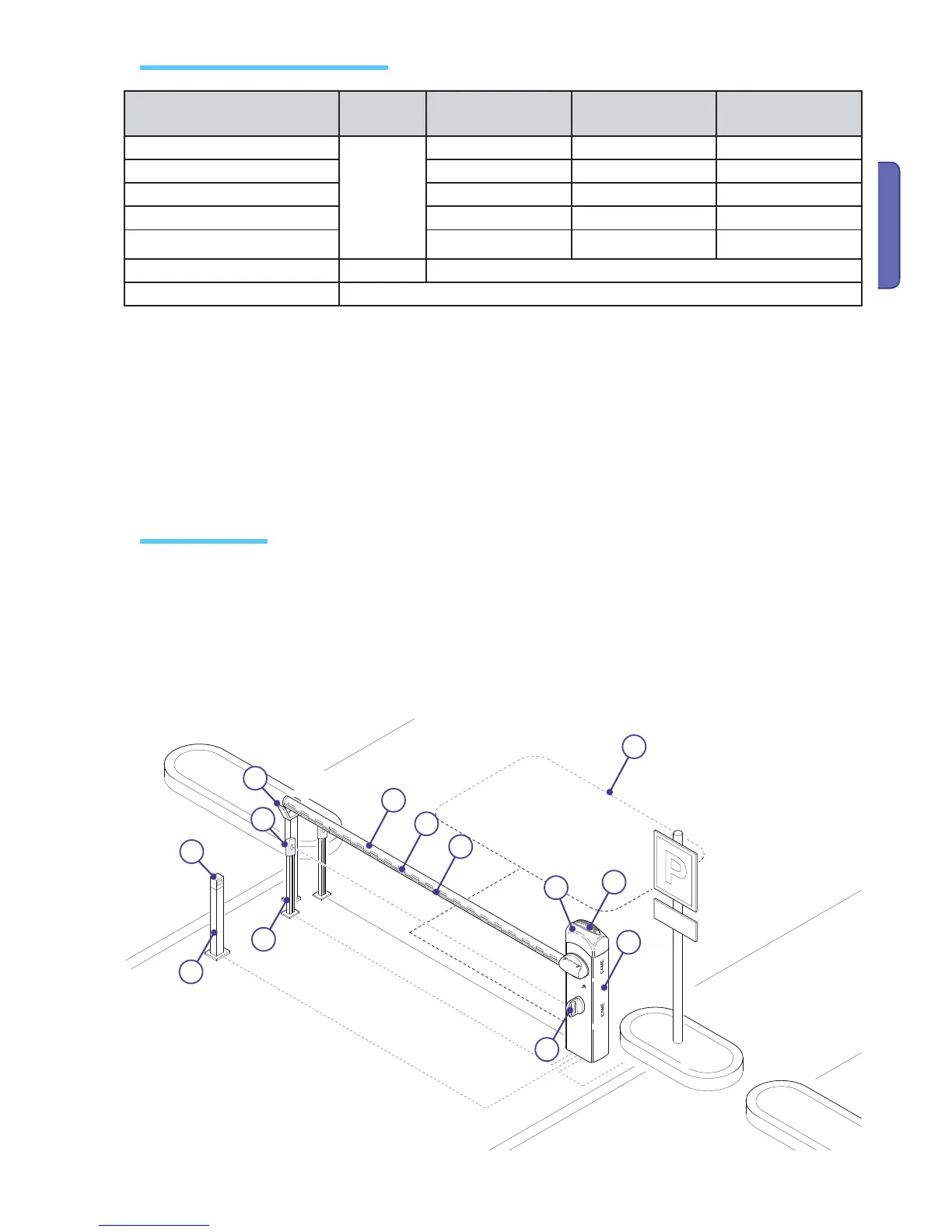

1 - GARD unit
2 - Control panel
3 - Aluminium barrier-arm
4 - Red reflective strips
5 - Luminous cord
6 - Motion warning flashing light
7 - Small column for photocells
8 - Photocells
9 - Fixed support
10 -Metal mass detector
11 - Support and DIR PHOTOCELL
12 - Command device (keypad, magnetic key, card, and so on.)
13 - Small column for command device
Connection
Type of
cable
Cable length
1 < 10 m
Cable length
10 < 20 m
Cable length
20 < 30 m
Powered by 230 V AC
FROR CEI
20-22
CEI EN
50267-2-1
3G x 1.5 mm
2
3G x 2.5 mm
2
3G x 4 mm
2
Photocell transmitters 2 x 0.5 mm
2
2 x 0.5 mm
2
2 x 0.5 mm
2
Photocell receivers 4 x 0.5 mm
2
4 x 0.5 mm
2
4 x 0.5 mm
2
Accessories power source 24 V DC 2 x 0.5 mm
2
2 x 0.5 mm
2
2 x 1 mm
2
Dispositivi di comando e di sicurezza 2 x 0.5 mm
2
2 x 0.5 mm
2
2 x 0.5 mm
2
Connecting the antenna RG58 max. 10 m
Metal mass detector (see product literature delivered with product)
Type of cable and minimum thicknesses
Standard installation

CAME GARD 4 SERIES Specifications

General

Power Supply	230V AC
Motor Power	300W
Operating Temperature	-20°C to +55°C
Protection Rating	IP54
Model	GARD 4
Type	Barrier Gate
Boom Length	4 meters
