CAME GARD 4 SERIES User Manual

UNI6954 ø3,9x19
Page
11
11 -
Manual code:
119 G U5 5
119 G U5 5 ver.
1.1
1.1 01/2012
© CAME cancelli automatici s.p.a. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.a. to notify said changes.
ENGLISH
Simple barrier arm* + anti-impact profile
Simple barrier-arm * + anti-impact profile + luminous cord
Simple barrier-arm* + skirt
Simple barrier-arm* + luminous cord + skirt
Asta semplice* + antiurto + appoggio mobile
Simple barrier-arm* + anit-impact profile + luminous cord + swing-
restb
- Before balancing the barrier-arm, check the table below, to see congruences among the chosen spring, any accessories and passage
width:

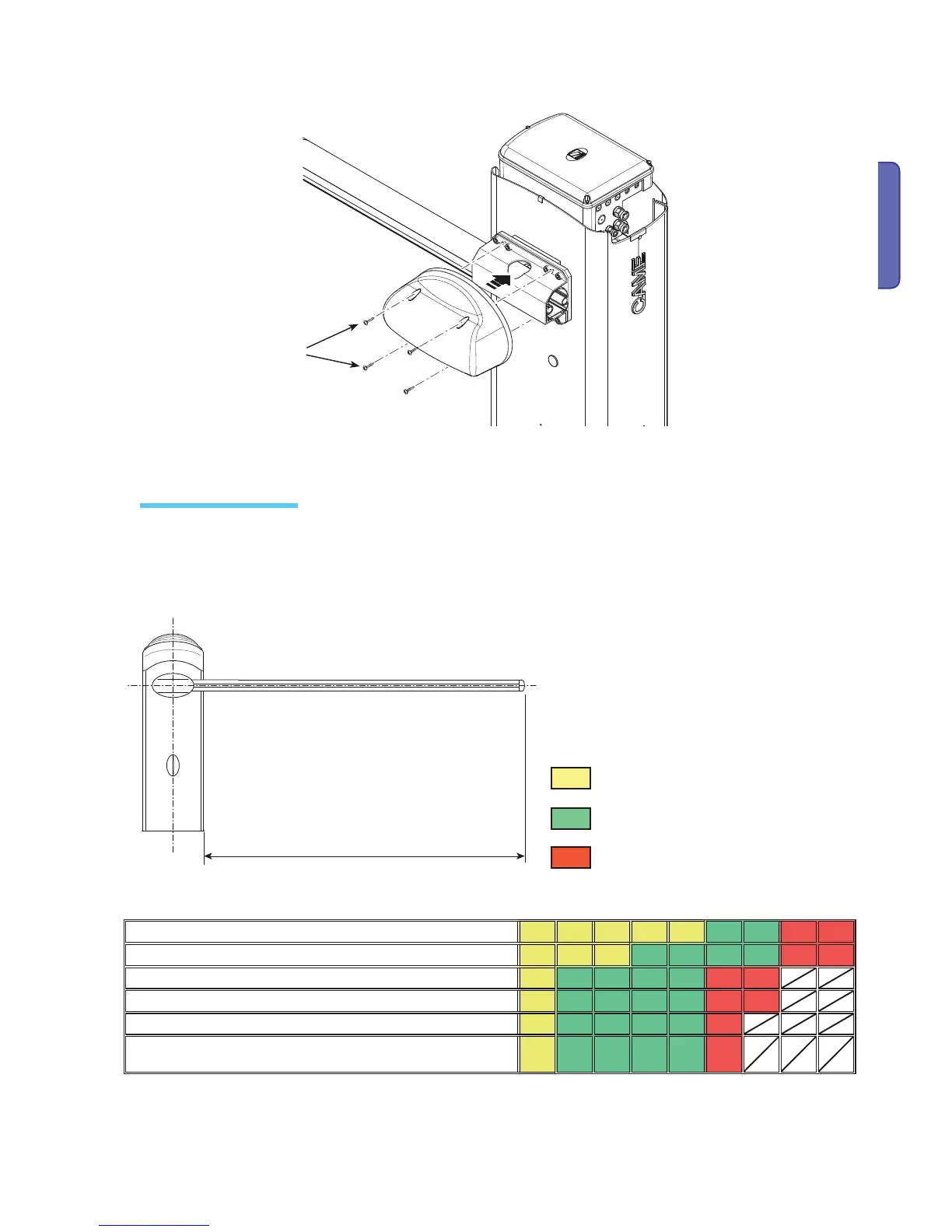

- Insert the protective anti-shearing casing onto the arm attachment cover and fasten it using the screws.
*A simple barrier arm is complete with transparent channel cover and endcap.
PASSAGE WIDTH (max. 3.75 m)
SPRING TYPES
G02040 Ø
e spring = 40 mm
G04060 Ø
espring = 50 mm
G06080 Ø
e spring = 55 mm
Passage width (m) 1.5
1.75
2.0
2.25
2.5
2.75
3.0
3.25
3.5 3.75
Balancing the barrier arm

CAME GARD 4 SERIES Specifications

General

Power Supply	230V AC
Motor Power	300W
Operating Temperature	-20°C to +55°C
Protection Rating	IP54
Model	GARD 4
Type	Barrier Gate
Boom Length	4 meters
