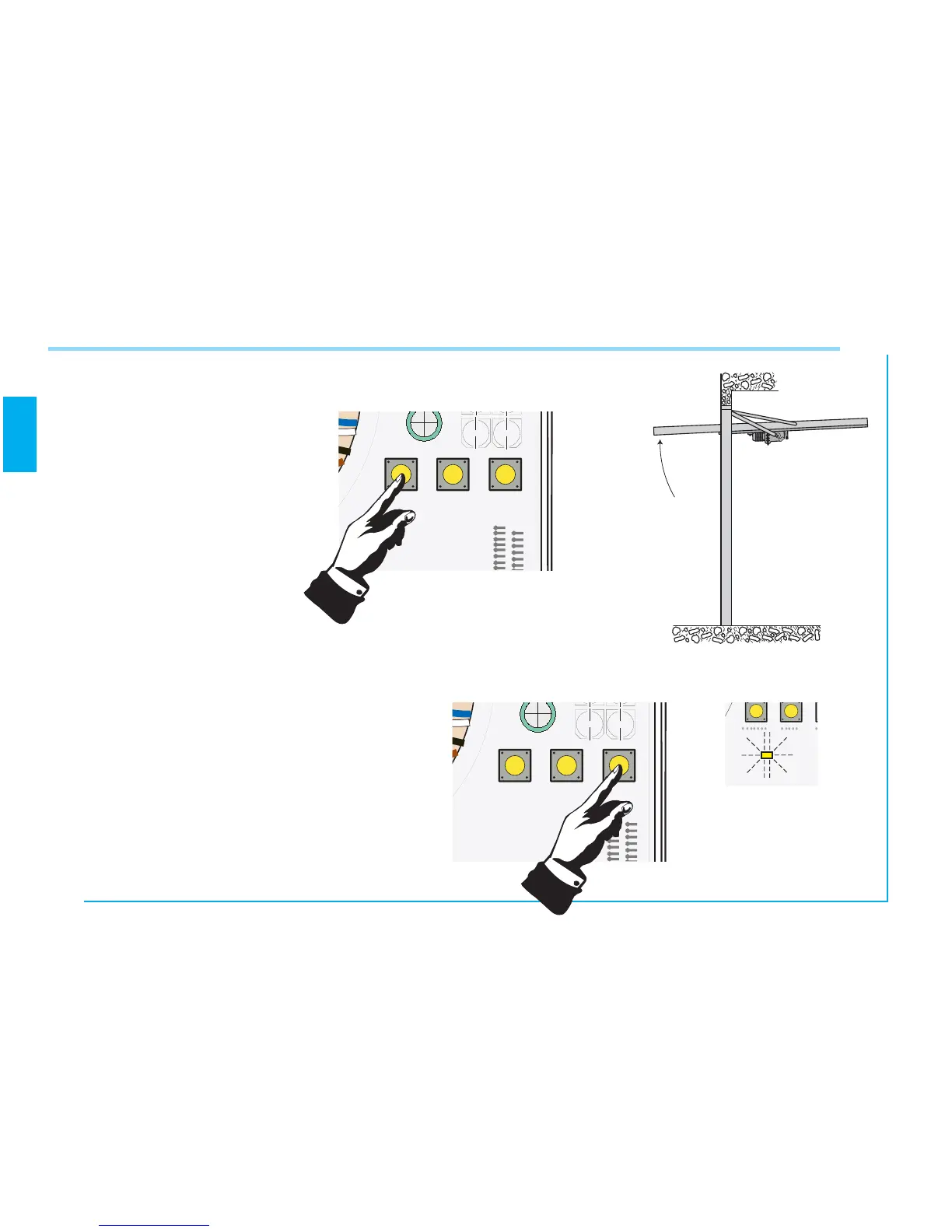

Press “CH1/OP” and allow the door
to open completely.
Opening End-Stop
Press the “OP/CL” key: the LED indicator remains lit to
signal the memorisation of the open end-stop.
Note: if the “CH1/OP” key is pressed twice within 15”,
the slowing during closing mode is deactivated and the
“thrust reduction” function is automatically inserted,
the function is made active when the door is about to
close. The LED indicator will resume flashing after having
pressed the key for the second time.
