CHAPTER 1 GENERAL DESCRIPITON

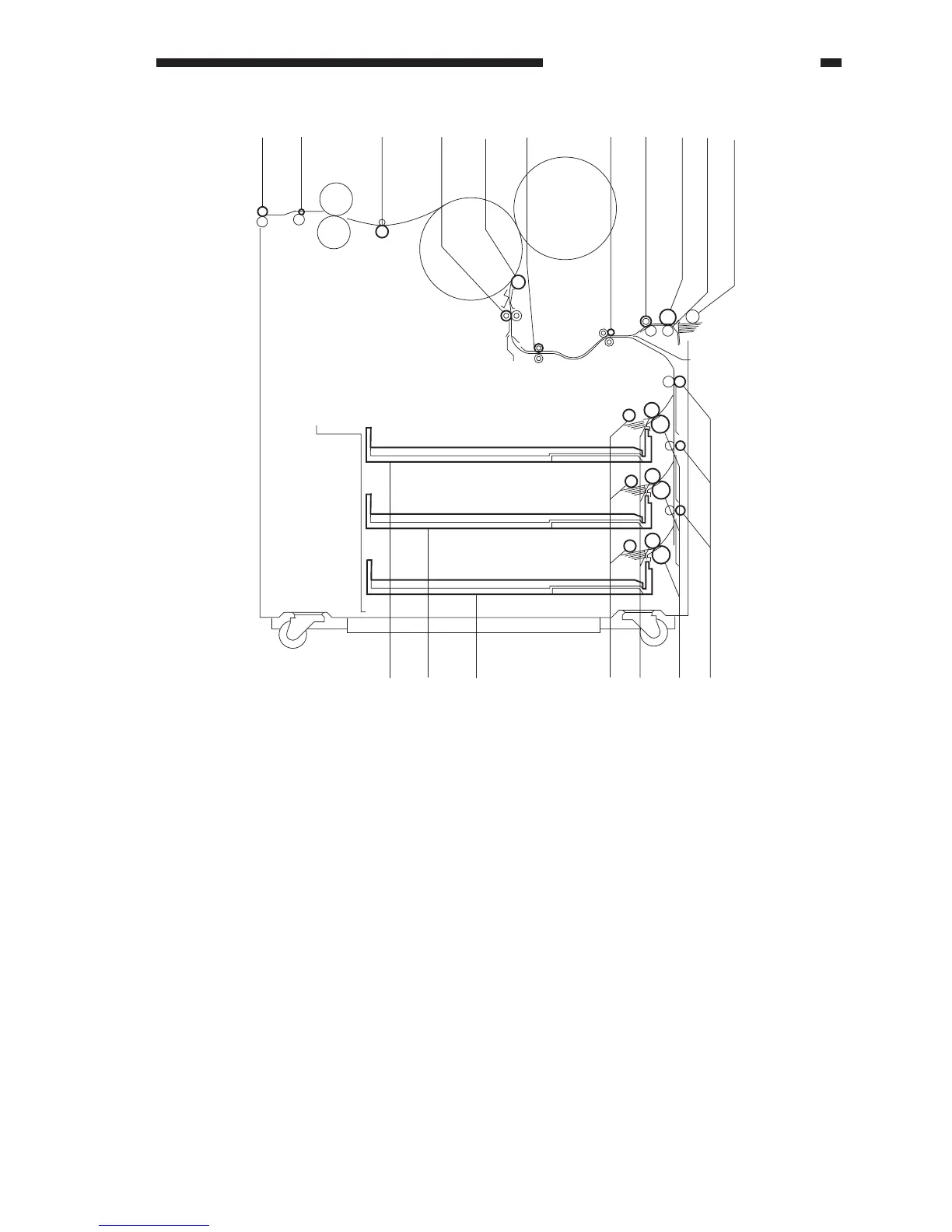

Figure 1-305 (CLC1130/1160)
[1] External delivery roller
[2] Internal delivery roller
[3] Postcard feed roller (100V model only)
[4] Registration roller
[5] Attraction roller
[6] Pre-registration roller 1
[7] Pre-registration roller 2
[8] Multifeeder feed roller 2
[9] Multifeeder feed roller 1
[1]
[2]
[3] [4]
[5] [6] [7]
[8]
[9]
[10]
[11]
[12]
[13]
[15]
[16]
[14]
[17]
[18]
[10] Multifeeder separation roller
[11] Multifeeder pickup roller
[12] Pickup vertical path roller 1, 2, 3
[13] Cassette 1, 2, 3 separation roller
[14] Cassette 1, 2, 3 feed roller
[15] Cassette 1, 2, 3 pickup roller
[16] Cassette 3
[17] Cassette 2
[18] Cassette 1
