2. Controlling Side A and Side B
The transfer drum retains as many as two sheets of paper at the same time. As such, two signal
plates operating in conjunction with the transfer drum and the sensors (PS2, side A sensor; PS3,
side B sensor) found inside the transfer drum are used to generate image leading signals of their
own (ITOP-A, ITOP-B).

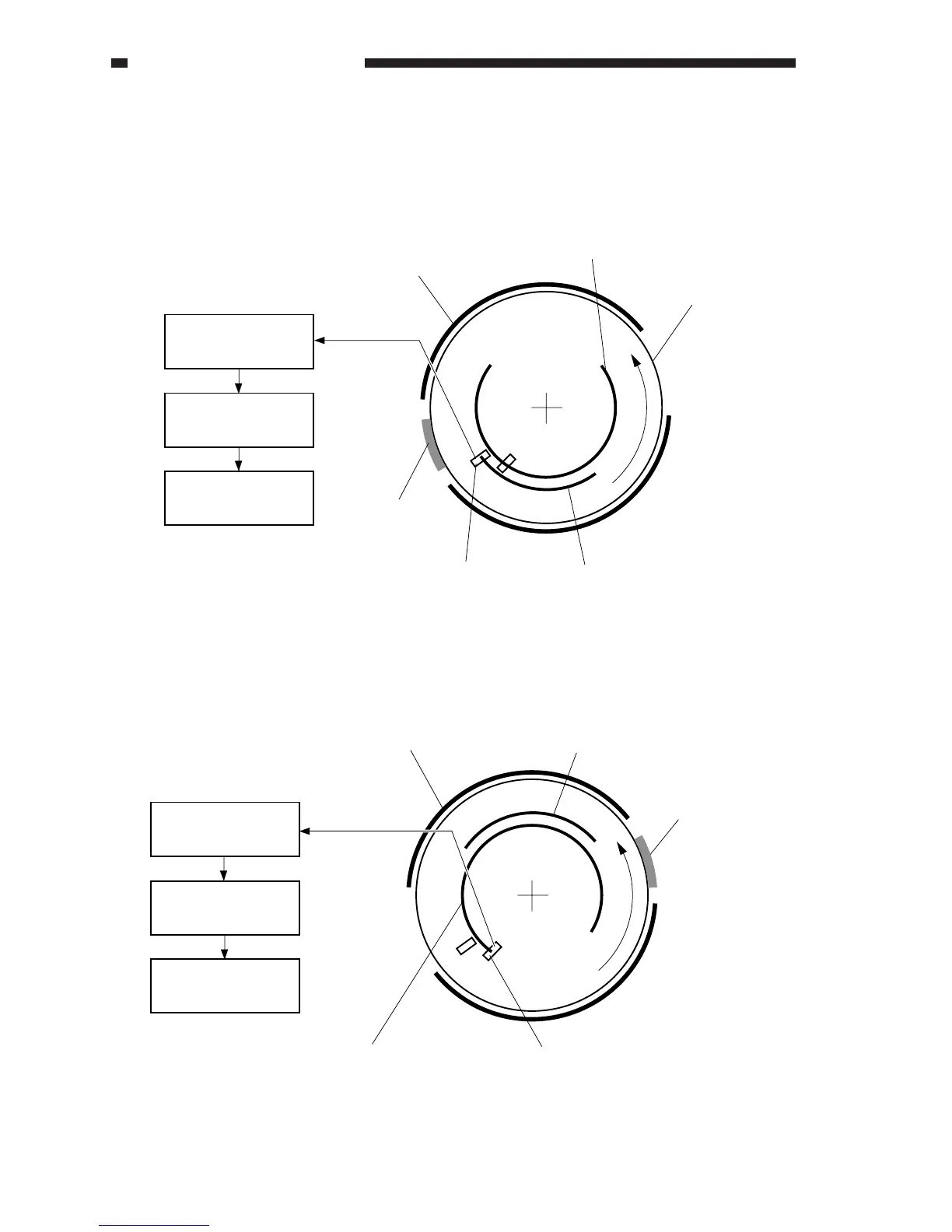

Figure 2-204
a. Transfer Drum When Copying on Side A
Figure 2-205
Transfer drum PCB
DC driver PCB
CPU PCB
Side A paper
Side A image
leading edge signal
Linking plate
Side A sensor (PS2)
Side B sensor signal plate
Transfer drum
Side A sensor signal plate
(I TOP-A)
Transfer drum PCB
DC driver PCB
CPU PCB
Side B image
leading edge signal
Linking plate
Side B sensor signal plate
Side B sensor (PS3)
Side B paper
Side A sensor signal plate
(I TOP-B)
