CHAPTER 2 BASIC OPERATION
I. OUTLINE OF OPERATIONS
A. Functional Construction
The copier is divided into a total of six functional blocks; i.e., original exposure system, image
processing system, laser exposure system, image formation system, pickup/feeding system, and
control system.

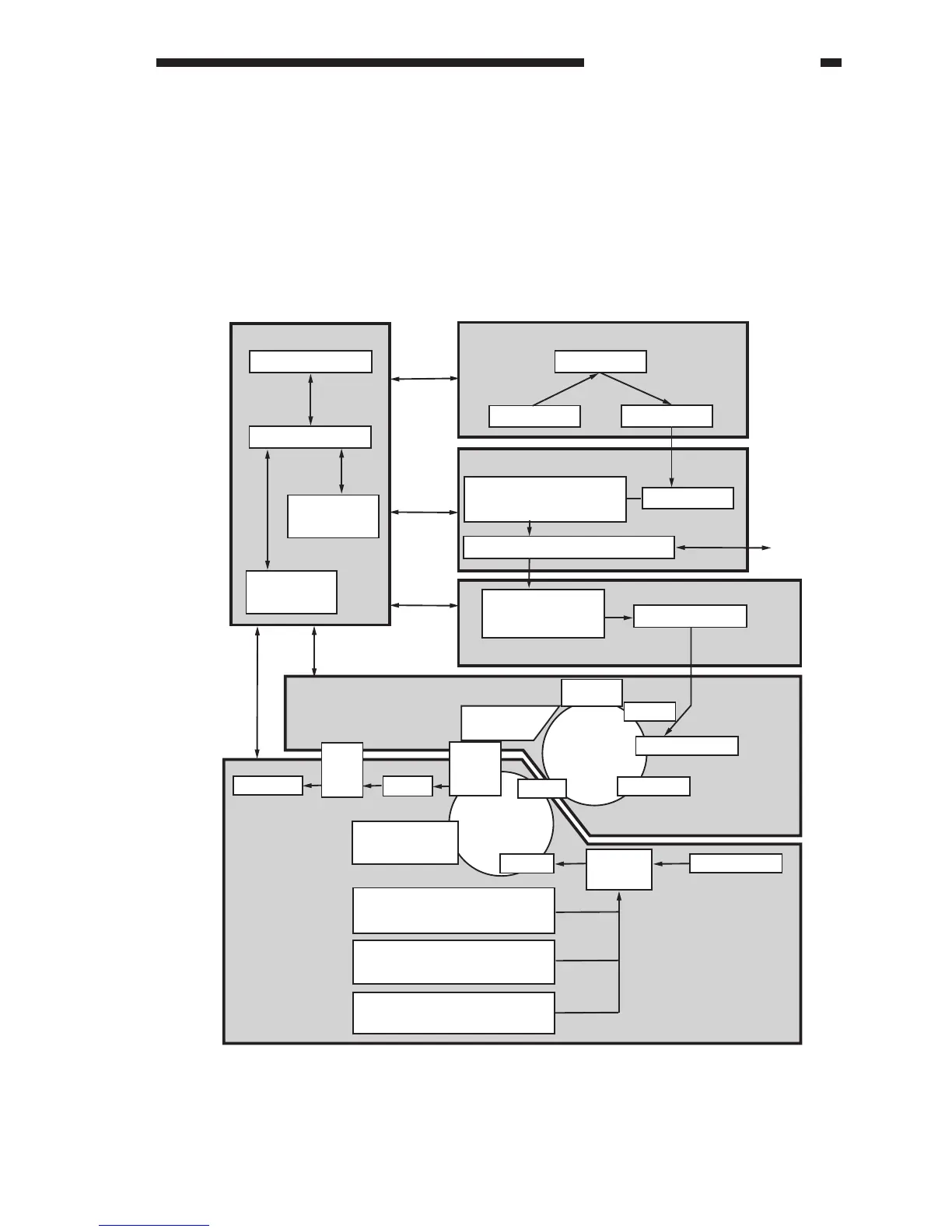

Figure 2-101
Control System
Original Exposure System
Image Processing System
Laser Exposure System
Analog processor PCB
To external device
CCD driver
Control panel
CPU PCB
DC driver PCB
DC power
supply PCB
Original
Scanning lamp
Optical path
Image processor PCB
Laser driver PCB Laser scanner
Image Formation System
Drum cleaning
Pre-
exposure
Charging
Laser exposure
Development
Transfer
Separa-
tion
Feeding
Fixing
Tray
Transfer drum
cleaning
Attraction
Pickup
control
Multifeeder
Cassette 1 (CLC1100/1120/1130
/1140/1160)
Duplexing tray (CLC1150/1180)
Cassette 2 (CLC1100/1120/1130
/1140/1160)
Cassette 1 (CLC1150/1180)
Cassette 3 (CLC1130/1160)
Cassette 2 (CLC1150/1180)
Pickup Feeder System
