Canon 1180 - Orientation of the Deck Pickup Roller

COPYRIGHT © 2002 CANON INC. CANON CLC1100/1130/1150/1160/1180 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
10-35
CHAPTER 10 PAPER DECK
3. Orientation of the Deck Pickup
Roller

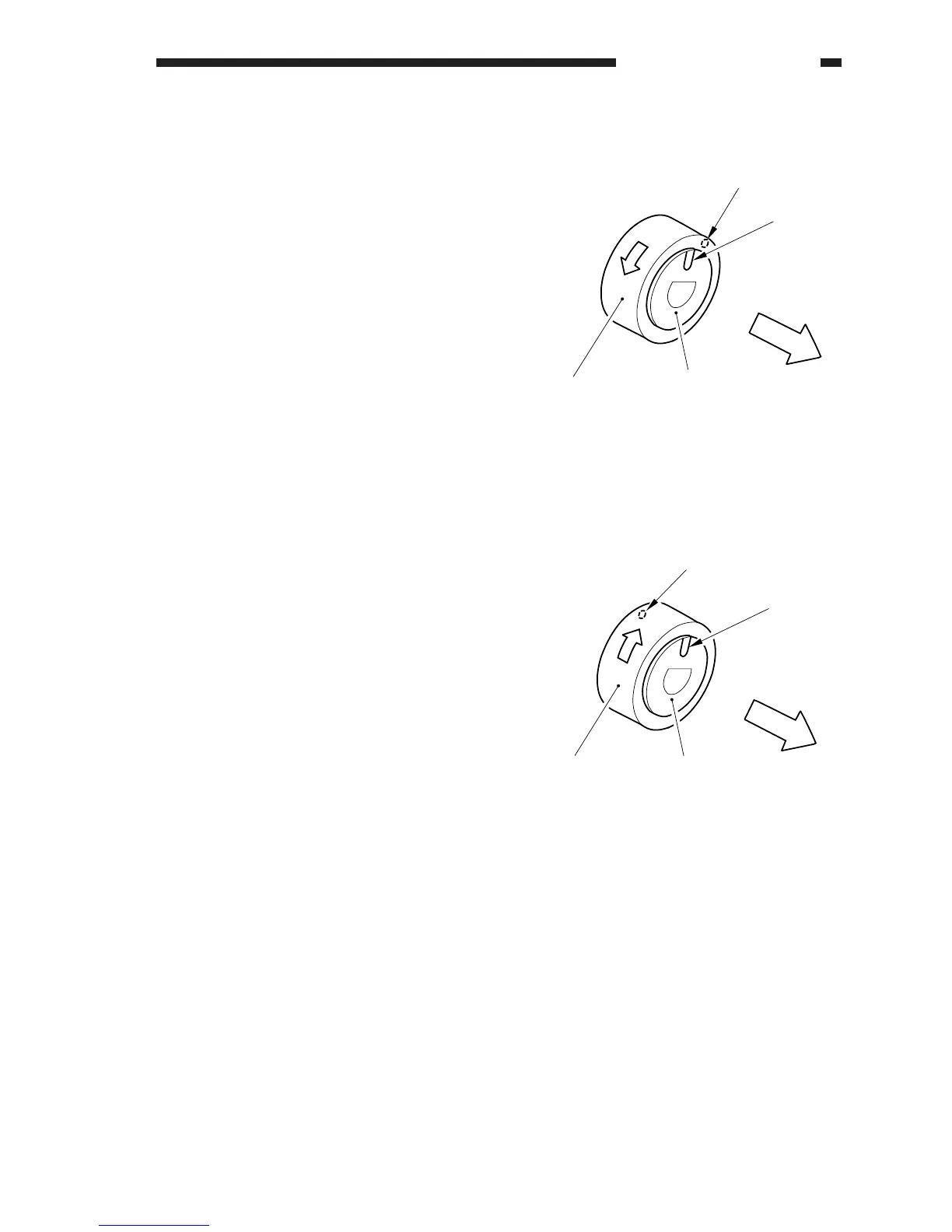

When mounting the deck pickup roller [1]
at the front, be sure that the marking [2] on the
collar (silver-colored) is at the front and the
marking [3] on the side of the roller is at the
rear.
Figure 10-340
When mounting the deck pickup roller [4]
at the rear, be user that the marking [5] on the
side of the roller and the marking [6] on the
side of the collar (gold-colored) are at the rear.
Figure 10-341
[2]
[3]
[1]
(direction of rotation)
Collar (gold-colored)
(rear of copier)
[4]
[5]
[6]
(director of rotation)
Collar (silver-colored)
(front of copier)
