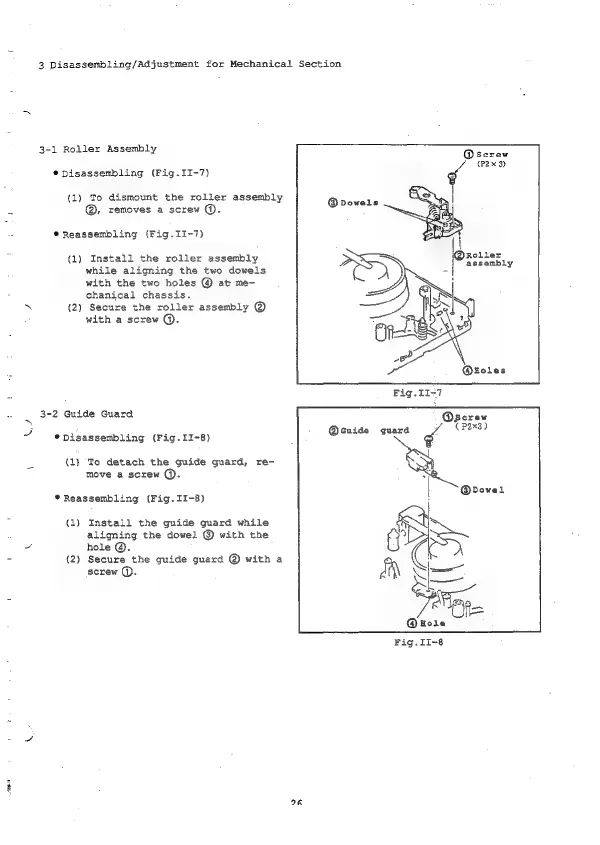

3. Disassembling/Adjustment for Mechanical Section
3-1 Roller Assembly
* Disassembling (Fig.II-7)
(1) To dismount the roller assembly
@, removes a screw @.
® Reassembling (Fig.II-7)
(1) Install the roller assembly
while aligning the two dowels
with the two holes @ at me-
chanical chassis.
~ (2) Secure the roller assembly @
with a screw @).
x 3-2 Guide Guard
a * Disassembling (Fig-.II-8)
(1) ‘To detach the guide guard, re-
move a screw
* Reassembling (Fig.II-8)
(1) Install the guide guard while
aligning the dowel @ with the
~ hole @.
(2) Secure the guide guard @ with a
screw @).
a
oR
@ screw
Pa (P23)
\@ Roller
assembly
Fig. II-7
@Guide guard
Q@screw
ra (P2x3 )
