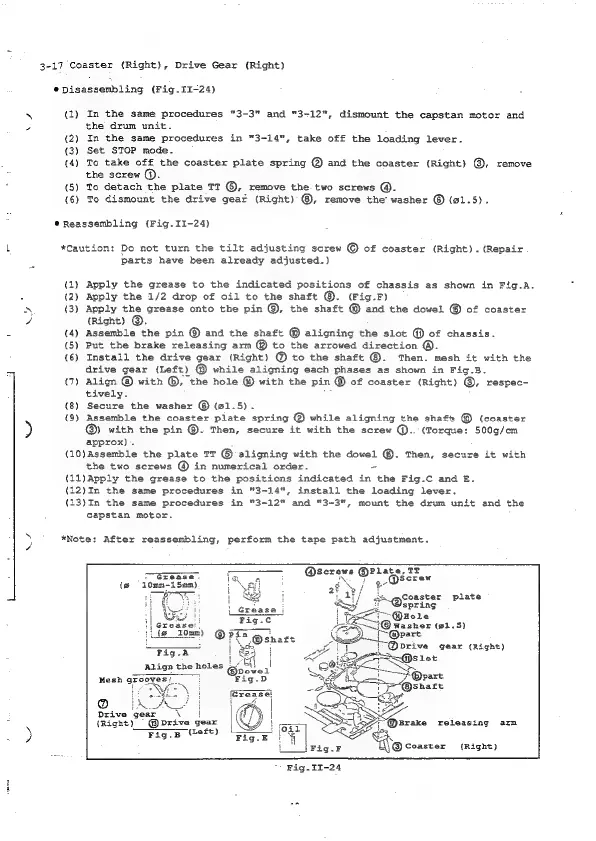

3-17
Coaster
(Right),
Drive
Gear
(Right)
@
Disassembling
(Fig.II-24)
\
(1)
In
the
same
procedures
"3-3"
and
"3-12",
dismount
the
capstan
motor
and
the
drum
unit.
(2)
In
the
same
procedures
in
"3-14",
take
off
the
loading
lever.
(3)
Set
STOP
mode.
(4)
To
take
off
the
coaster
plate
spring
@
and the
coaster
(Right)
©,
xemove
the
screw
@.
(5)
To
detach
the
plate
TT
©,
remove
the
two
screws
@.
(6)
To
dismount
the
drive
gear
(Right)
@,
remove
the’
washer
©
(#1.5).
\
*®
Reassembling
(Fig.1II-24)
*Caution:
Do
not
turn
the
tilt
adjusting
screw
©
of
coaster
(Right).
(Repair
parts
have been
already
adjusted.)
(1)
Apply
the
grease
to
the
indicated
positions
of
chassis
as
shown
in
Fig.A.
(2)
Apply
the
1/2
drop
of
oil
to
the
shaft
©.
(Fig.F)
a
(3)
Apply
the
grease
onto
the
pin
@,
the
shaft
@
and
the
dowel
@
of
coaster
/
(Right)
©.
(4)
Assemble
the
pin
@
and
the
shaft
@
aligning
the
slot
@
of
chassis.
(5)
Put
the
brake
releasing
arm
@
to
the
arrowed
direction
@.
(6)
Install
the
drive
gear
(Right)
@
to
the
shaft
@.
Then.
mesh
it
with
the
drive
gear
(Left)
@
while
aligning
each
phases
as
shown
in
Fig.B.
(7)
Align
@
with
@,
the
hole
@
with
the
pin
©
of
coaster
(Right)
@,
respec-
tively.
(8)
Secure
the
washer
©
(91.5).
(9)
Assemble
the
coaster
plate
spring
@
while
aligning
the
shaft
@
(coaster
)
@)
with
the
pin
©.
Then,
secure
it
with
the
screw
@..
(Torque:
500g/cm
approx)
.
(10)Assemble
the
plate
TT
@
aligning
with
the
dowel
®.
Then,
secure
it
with
the
two
screws
@
in
numerical
order.
-
(11)
Apply
the
grease
to
the
positions
indicated
in
the
Fig.C
and
E.
(12)In
the
same
procedures
in
"3-14",
install
the
loading
lever.
({13)In
the
same
procedures
in
"3-12"
and
"3-3",
mount
the
drum
unit
and
the
capstan
motor.
*Note:
After
reassembling,
perform
the
tape
path
adjustment.
od
,TT
erease,
;
Oserexe
@Praees
Trew
{@
10mm-15mm)
wa
coaster
plate
@spring
Petre
S—1@
Washer
(91.5)
yo
S@pare
a
@bvrive
gear
(Right)
aig.
!
A
|
4
+
@slot
Aliga
the
holes
¢
aN
pei
Rami
,
2
i
@part
Mesh
grooves!
Ny
ca
“
;
“=-@shart
OQ
|NAL
|
&
Drive
gear
\
|!
SS.
(Right)
_@
Drive
gear
\
<
releasing
arm
\
—
ig.
p
(left)
i
5
Coaster
(Right)
Fig.II-24
