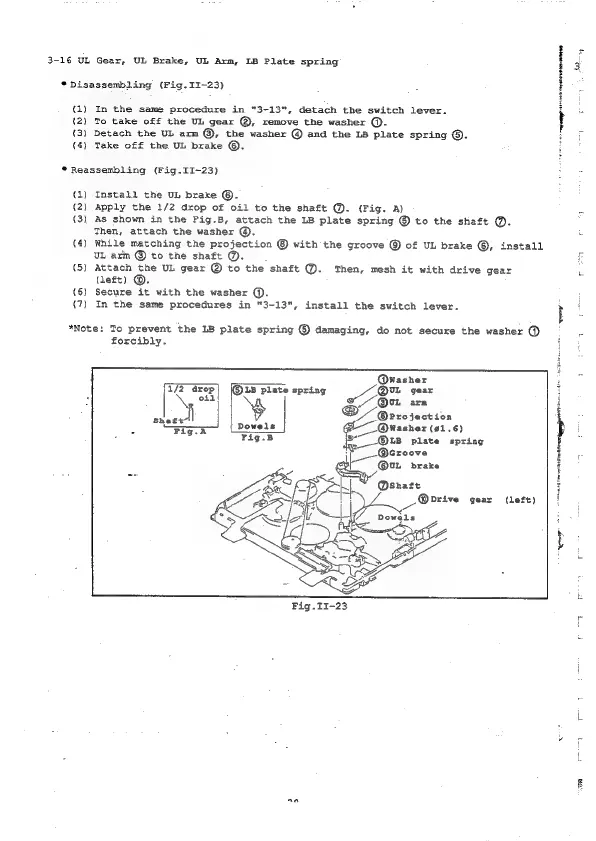

3-16 UL Gear, UL Brake, UL Arm, LB Plate spring
* Disassembling (Fig.I1I-23)
(1) In the same procedure in "3-13", detach the switch lever.
(2) To take off the UL gear @, remove the washer @.
(3) Detach the UL arm @, the washer @ and the LB plate spring ©.
{4) Take off the UL brake ©.
Semantic dea eR eons
* Reassembling (Fig.II-23)
(1) Install the UL brake ©.
(2) Apply the 1/2 drop of oil to the shaft @. (Fig. A)
(3) As shown in the Pig.B, attach the LB plate spring © to the shaft @.
Then, attach the washer @.
(4) While matching the projection with the groove © of UL brake ©, install
UL arm @ tothe shaft@.
(5) Attach the UL gear @ to the shaft @. Then, mesh it with drive gear
(left) @.
(6) Secure it with the washer @.
(7) In the same procedures in "3-13", install the switch lever. i
*Note: To prevent the LB plate spring ® damaging, do not secure the washer ()
forcibly.
Q@washer
UL gear
en arm
Qe @rrojection
@—_@ Washer (01.6)
2 Ow plate spring
i @croove
ORD vrake
4
= @brive gear
Fig.II-23
(left)
