DC10 E, DC20 E
SERVICE MODE / ADJUSTMENT
15
Procedure)
(1) Referring to the table shown below, check the internal temperature sensor in the camera.
(Be sure to perform this step immediately after power-on.)
(2) Using the internal camera temperature data, and record the current internal temperature.
Temperature immediately after power-on T1 = ______________
Note)
(1) In cases where the procedure has been interrupted, the internal camera temperature data recorded will be usable as reference data at
the time of restart.
• Internal camera temperature difference T [°C] = (Current internal camera temperature) - (Internal camera tempera-
ture at CCD image adjustment (low temperature)
• The value of the internal camera temperature difference is represented in decimal notation. When the value is
negative, it will blink. (The value does not blink if it is positive.)
• Changes in the internal camera temperature difference will cause the background color to change. As the internal
temperature of the lens increases, the background color changes as follows: blinking in yellow→white→ yellow→green.
Note: Until CCD image adjustment is carried out at a service center, a value of internal camera temperature difference
is indicated according to the "Internal camera temperature at CCD image adjustment (low temperature)" data
recorded at the time of pre-adjustment in the manufacturing process.

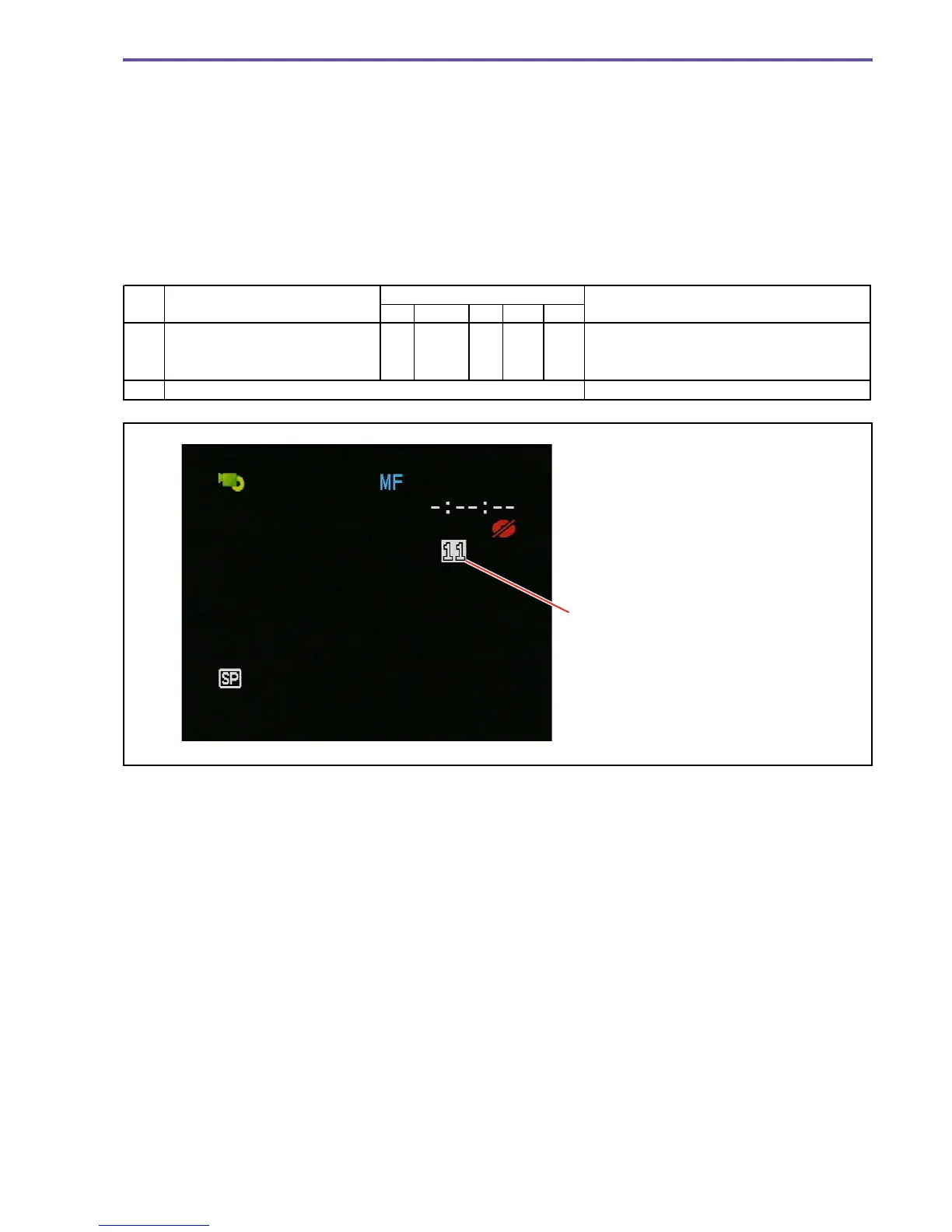

Fig. 12
Internal camera temperature difference
STEP PROCEDURE Microcomputer operation
TEMPERATURE CHECK CS Function MD ADDR DT
1 1) Make the setting shown at right. 0 02 ST 00D0 08 Completion of internal camera temperature sensor
2) Perform storing.
↑↑
RD
↑↑
check indication.
(press the PAUSE button.) Adjustment is completed.
2 Press SLOW KEY for transition to the normal mode. Indication of internal camera temperature
MONITOR
