Canon DC10 E - Disassembly of Lens Unit

DC10 E, DC20 E
DISASSEMBLING
54
1-30 Disassembly of Lens Unit
(1) Peel off the UL Tape.
(2) Remove eight screws (n × 5, o × 1, p × 1, q × 1), unsolder points α, and detach the IG Meter Ass'y, the PZ Motor, the Photo
Interrupter, the Guide Bar (× 3), and the SR Head, etc.

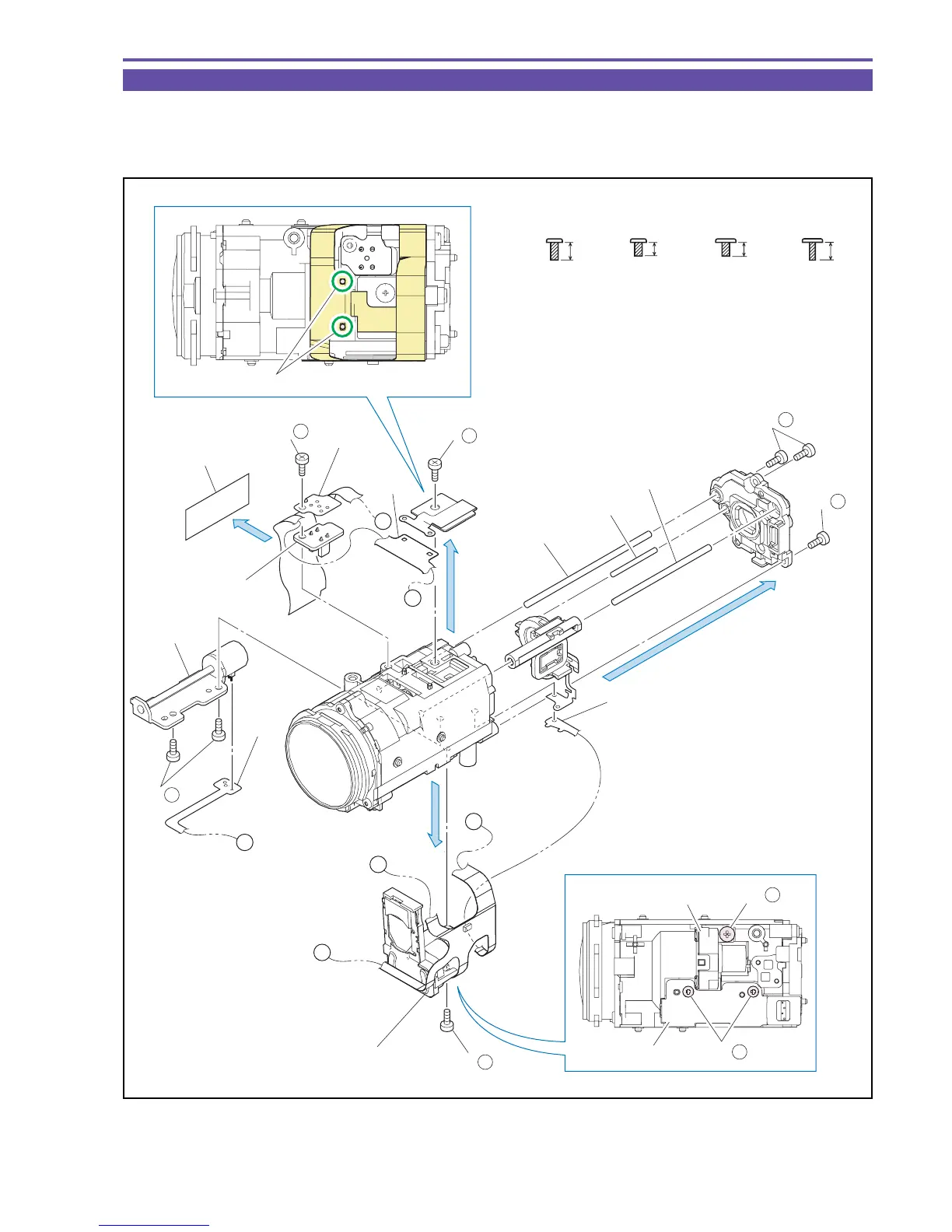

Fig. 51
p
Metal
M1.7
(self tap)
3mm
q
Metal
M1.4
(self tap)
4mm
n
3mm
4mm
Metal
M1.4
(self tap)
o
Metal
M1.4
(self tap)
(2)
(2)
(2) - q
(2) - q
IG Meter Ass'y
IG Meter Ass'y
(2)
(2) - n
(2) - n
(2) - n
Guide Bar 14mm
Guide Bar 31mm
Guide Bar 40mm
Photo Interrupter
PZ Motor
(2) - p
(2) - α
(2) - α
(2) - α
(2) - α
(2) - o
(2) - n
PZ Motor
Dowels
UL Tape (9 × 20mm)
C
C
B
B
(1)
A
A
