DC10 E, DC20 E
SERVICE HINTS
13
(5) How to hold the TS Mech
As instructed in step (2) above, do not hold the left section, that is, the flexible cable, of the TS Mech, but hold the upper and lower
sections. (Fig. 9)
(6) How to place the TS Mech
Be sure to place the detached TS Mech with its pickup lens upward. At this time, do not leave the TS Mech for a long time without
covering its lens. Store it with its lens covered.
(7) Cautions on containing the TS Mech into the service parts box
Both the upper and lower halves of the black container for service parts have antistatic effect. Thus place the TS Mech in the
container as it is, without covering it.
Caution: Do not put the TS Mech in a vinyl bag before placing it in the container. Or the vinyl bag may touch and cause
damage to the pickup during transportation. The upper and lower halves of the container can fix the pickup
position without touching the pickup directly.

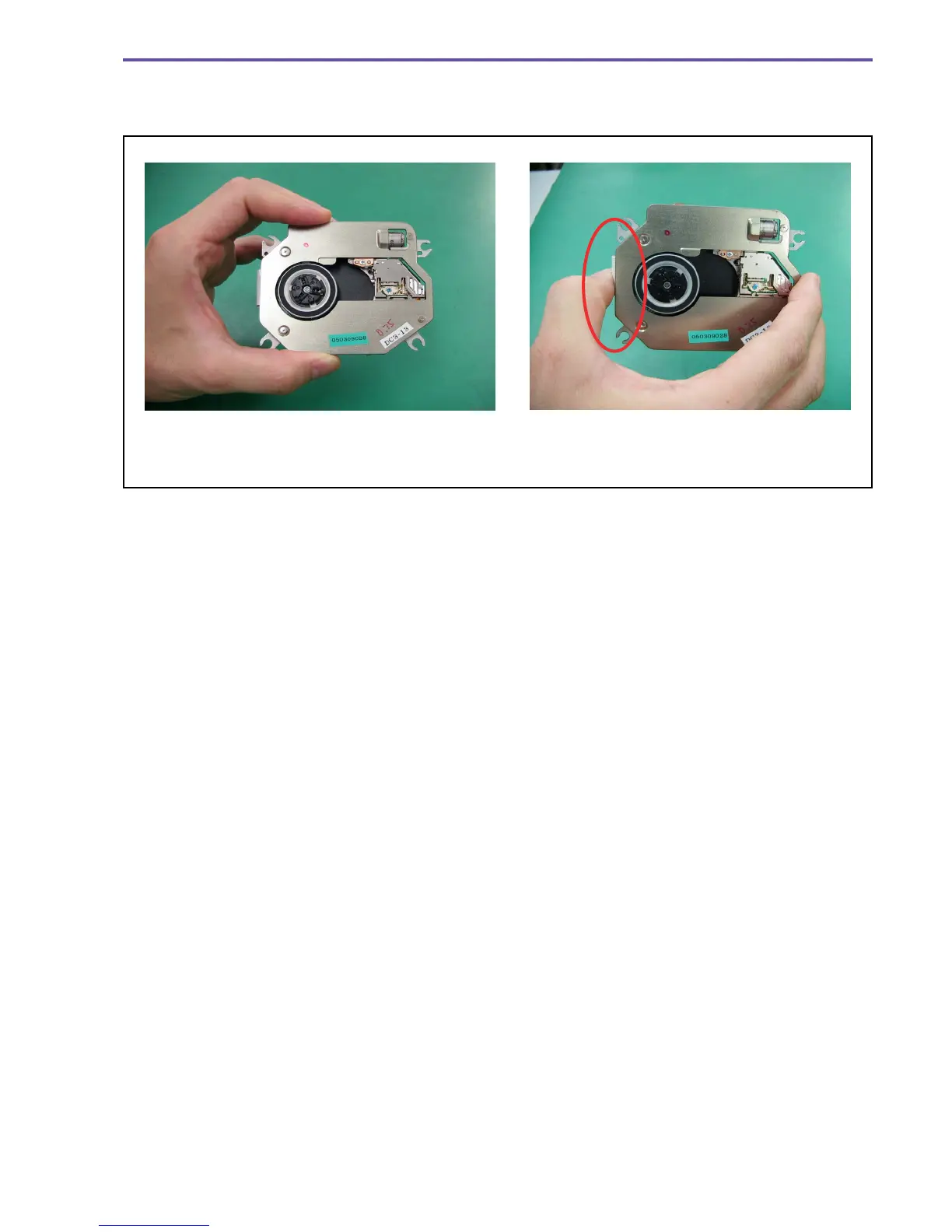

Fig. 9
Right way to hold the TS Mech Wrong way to hold the TS Mech
Do not hold the section circled in red,
that is, the flexible cable.
