DISASSEMBLING
7
<Note on Reassembling>

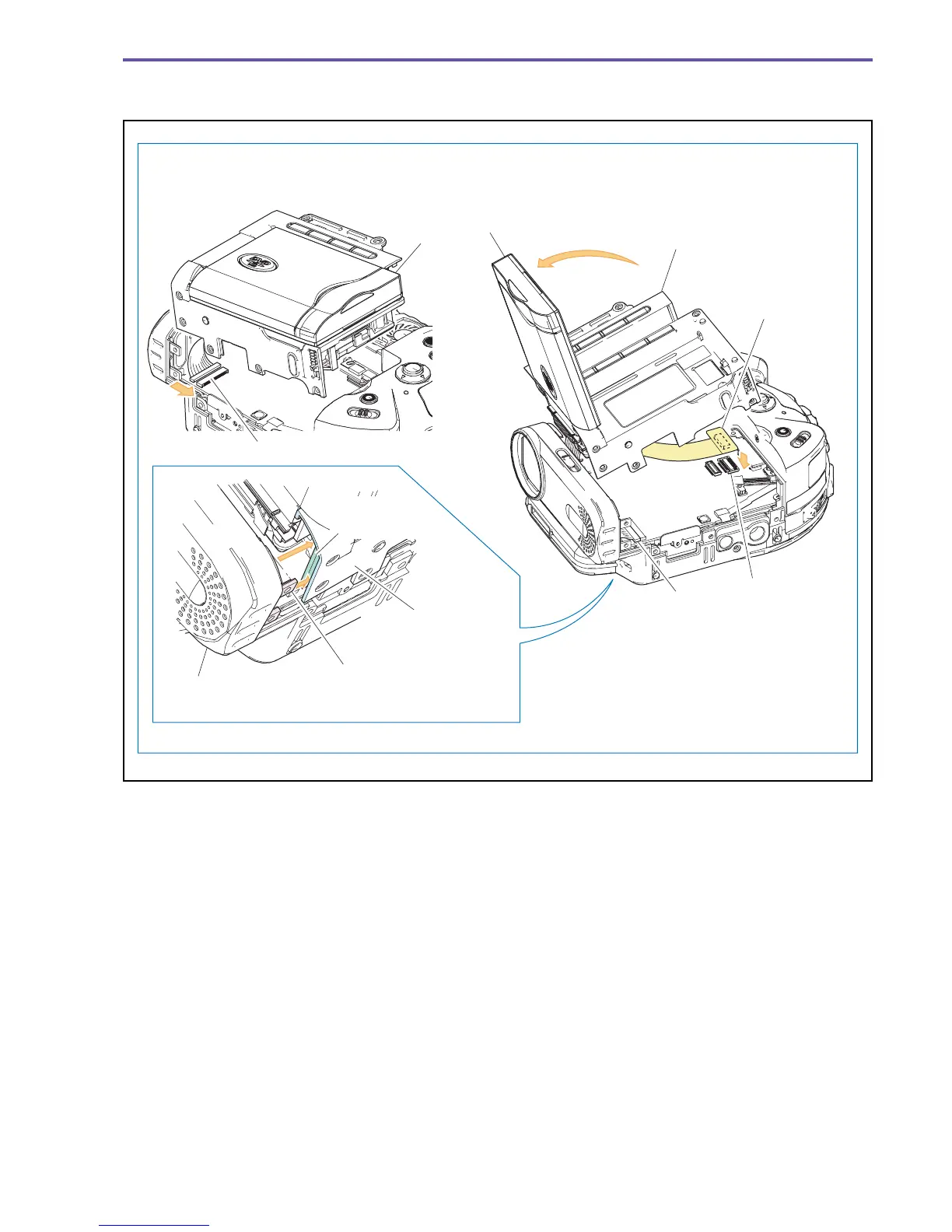

(1) Attach the R-LCD Unit as shown in the figure below.
Note on Reassembling (1)
CN901
LCD
1. Close the LCD and attach CN901.
2. After attaching the CN901, open the LCD and attach
it to the Main Unit.
Open
Insert between the bottom surface
of R-LCD Unit and the Base Plate
of Hinge Ass'y.
Front Cover
R-LCD Unit
Hinge Ass'y
Base Plate
R-LCD Unit
LCD
CN901
CN104 (B to B)
CN100 (B to B)
Fig. 4

Canon DC10 E Specifications

General

Camcorder Type	Digital Camcorder
Digital Zoom	200x
Optical Zoom	10x
Focus Adjustment	Automatic, manual
Shooting Modes	Auto, Manual
Image Stabilizer	Electronic
Display Type	LCD
Connector Type	USB, AV
Battery Type	Lithium-Ion
Recording Media	MiniDV
Display Size	2.5"
Viewfinder	Color
Microphone	Built-in
