DISASSEMBLING
11
<Note on Reassembling>
(1) Attach the Rear Cover Unit as shown in the figure below.

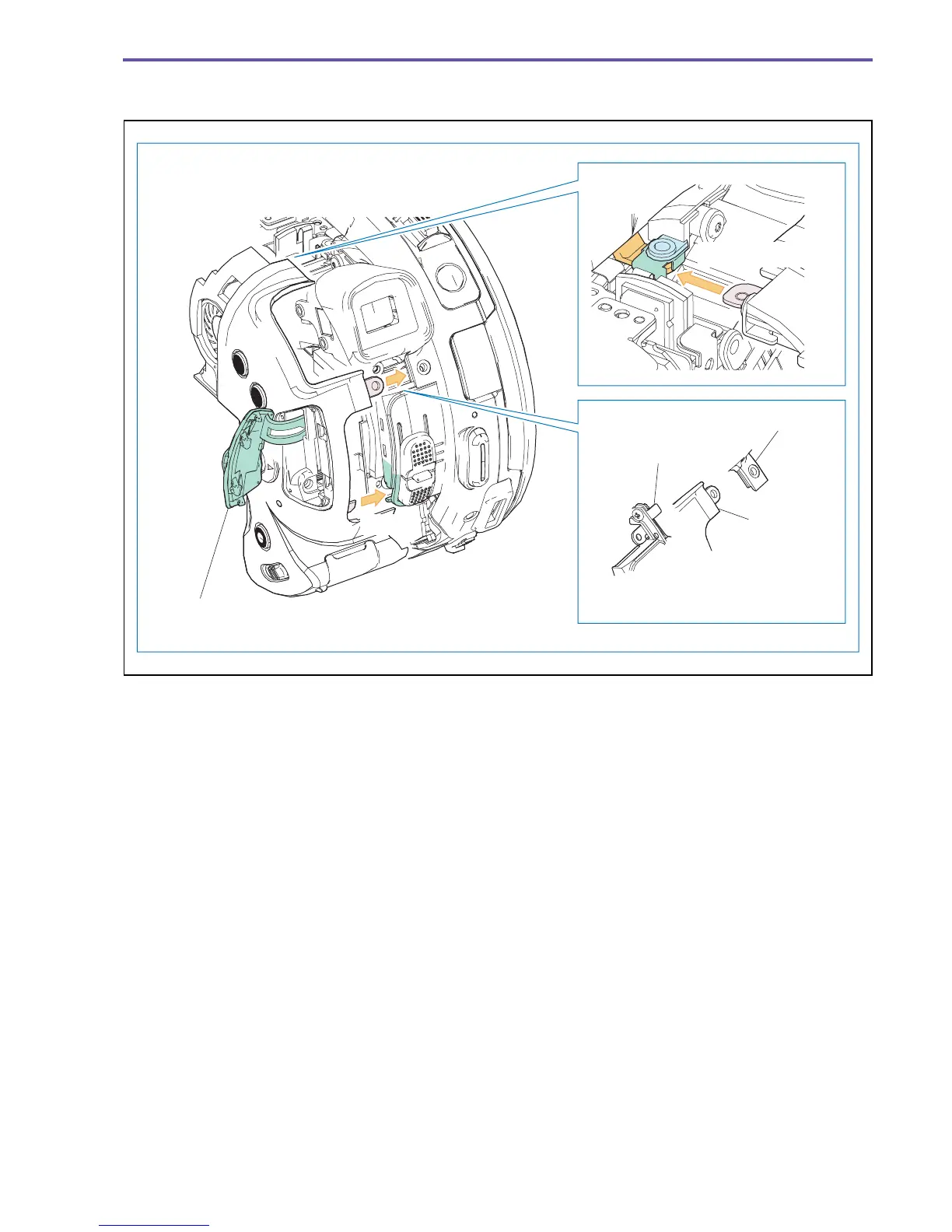

Fig. 8
Note on Reassembling (1)
Plate of Zoom Ass'y
CVF L Cover
Rear Cover
Open the SD Memory
Cover in advance.
Insert in between
Insert it downward.
Insert
Rear Cover
Unit
