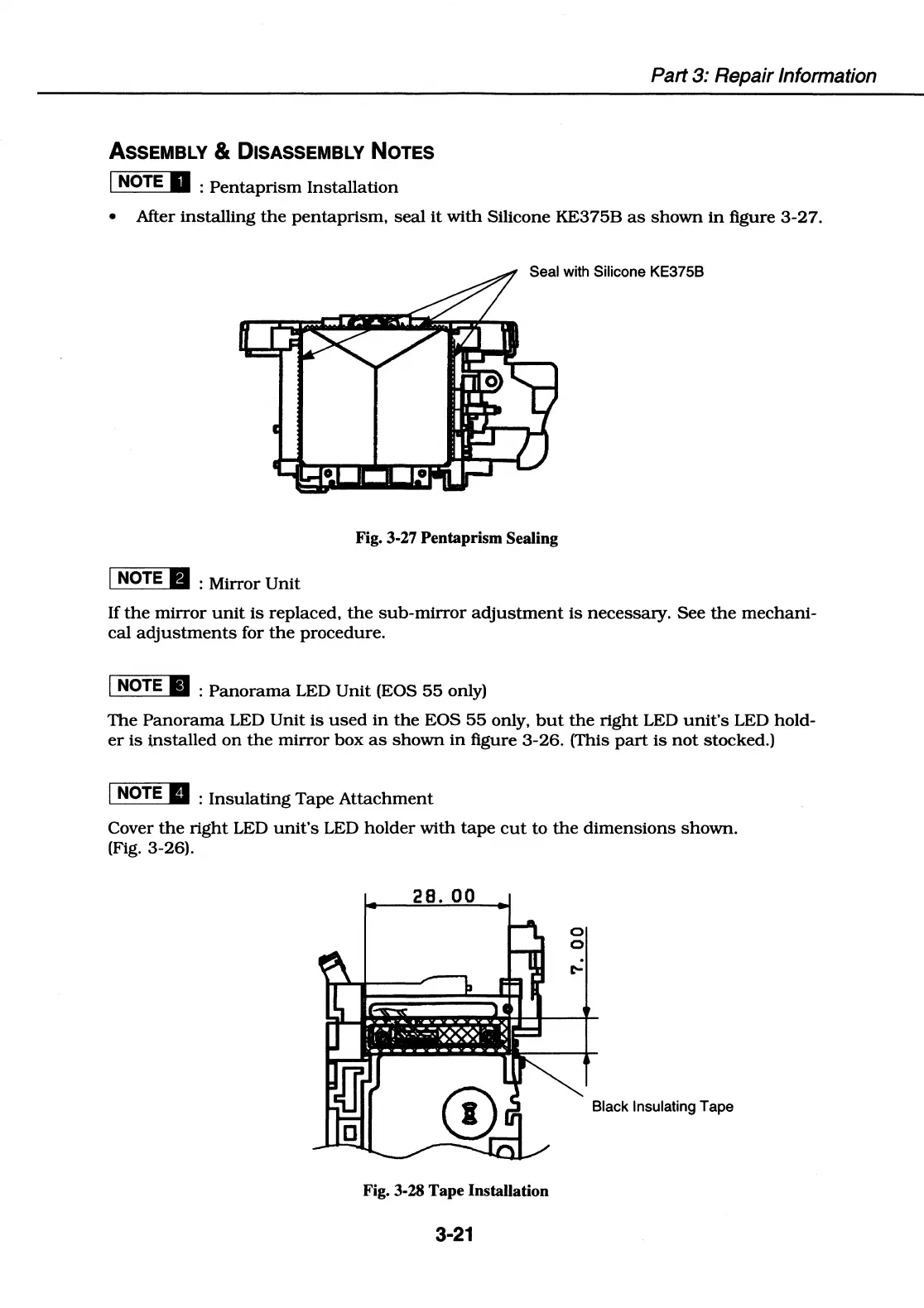

ASSEMBLY & DISASSEMBLY NOTES
I NOTE ■ : Pentaprism Installation
Part 3: Repair Information
• After installing the pentaprism, seal it with Silicone KE375B as shown in figure 3-27.
Seal with Silicone KE3758
Fig. 3-27 Pentaprism Sealing
I NOTE ■ : Mirror Unit
If the mirror unit is replaced, the sub-mirror adjustment is necessary. See the mechani-
cal adjustments for the procedure.
I NOTE ■ : Panorama LED Unit (EOS 55 only)
The Panorama LED Unit is used in the EOS 55 only, but the right LED unit's LED hold-
er is lnstalled on the mirror box as shown in figure 3-26. ('lb.is part is not stocked.)
I NOTE ■ : Insulating Tape Attachment
Cover the right LED unit's LED holder with tape cut to the dimensions shown.
(Fig. 3-26).
28.00
Fig. 3-28 Tape Installation
3-21
0
0
Black Insulating Tape
