2.7 TRANSPORT
UNIT
DISASSEMBLY
*:
Three Bond 1401B
on
screw heads
*:
Lube
with_____------1
A-74
I
4.0mm
I x3

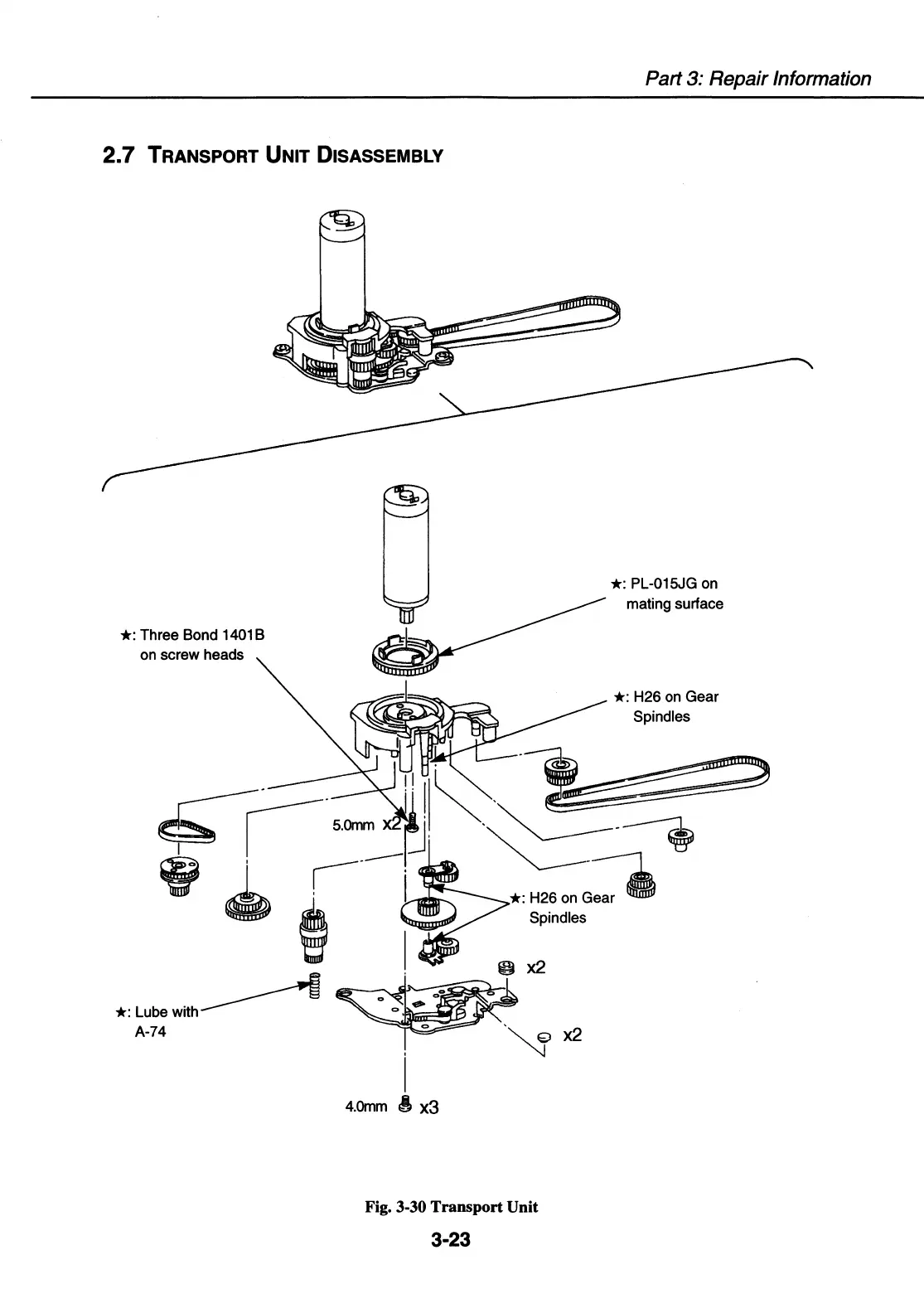

Fig. 3-30
Transport
Unit
3-23
x2
Part 3: Repair Information
*:
PL-015JG
on
mating surface
*:
H26
on
Gear
Spindles
