Canon EOS 50 E - 1.4 TOOLS and EXPENDABLES

Part 3: Repair Information

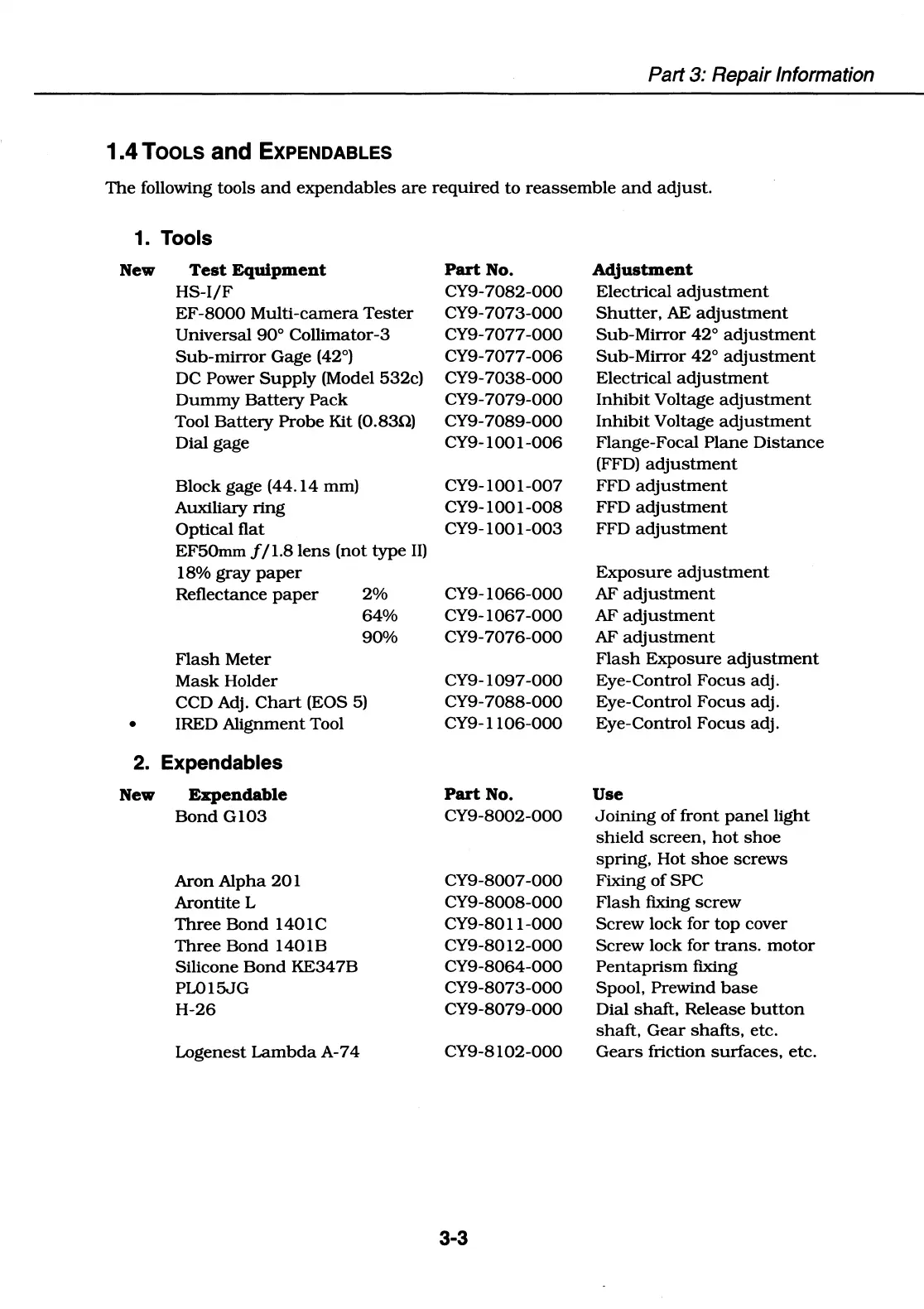

1.4 TOOLS and EXPENDABLES
The following tools and expendables are required to reassemble and adjust.
1. Tools
New Test Equipment
Part No. Adjustment
HS-I/F
CY9- 7082-000 Electrical adjustment
EF-8000 Multi-camera Tester
CY9- 7073-000 Shutter, AE adjustment
Universal 90° Collimator-3 CY9- 7077-000
Sub- Mirror 42° adjustment
Sub-mirror Gage (42°)
CY9- 7077-006 Sub- Mirror 42° adjustment
DC Power Supply (Model 532c) CY9- 7038-000 Electrical adjustment
Dummy Battery Pack
CY9- 7079-000 Inhibit Voltage adjustment
Tool Battery Probe Kit (0.830)
CY9- 7089-000 Inhibit Voltage adjustment
Dial gage
CY9-l001-006 Flange-Focal Plane Distance
(FFD) adjustment
Block gage (44.14 mm) CY9-l001-007 FFD adjustment
Auxiliary ring
CY9-l001-008 FFD adjustment
Optical flat
CY9-l001-003 FFD adjustment
EF50mm f I 1.8 lens (not type II)
18% gray paper
Exposure adjustment
Reflectance paper
2% CY9-l 066-000 AF adjustment
64% CY9- l 067 -000 AF adjustment
90% CY9- 7076-000 AF adjustment
Flash Meter
Flash Exposure adjustment
Mask Holder
CY9- l 097 -000 Eye-Control Focus adj.
CCD Adj. Chart (EOS 5)
CY9- 7088-000 Eye-Control Focus adj.
•
IRED Alignment Tool
CY9- l 106-000 Eye-Control Focus adj.
2.
Expendables
New
Expendable
Part No. Use
Bond Gl03
CY9-8002-000 Joining of front panel light
shield screen, hot shoe
spring, Hot shoe screws
Aron Alpha 201
CY9-8007-000 Fixing of SPC
Arontite L
CY9-8008-000
Flash fixing screw
Three Bond 1401 C
CY9-8011-000 Screw lock for top cover
Three Bond 140 lB
CY9-8012-000 Screw lock for trans. motor
Silicone Bond KE34 7B
CY9-8064-000 Pentaprism fixing
PL015JG
CY9-8073-000 Spool, Prewind base
H-26
CY9-8079-000 Dial shaft, Release button
shaft, Gear shafts, etc.
Logenest Lambda A- 7 4
CY9-8 l 02-000 Gears friction surfaces, etc.
3-3
