Part 3: Repair Information

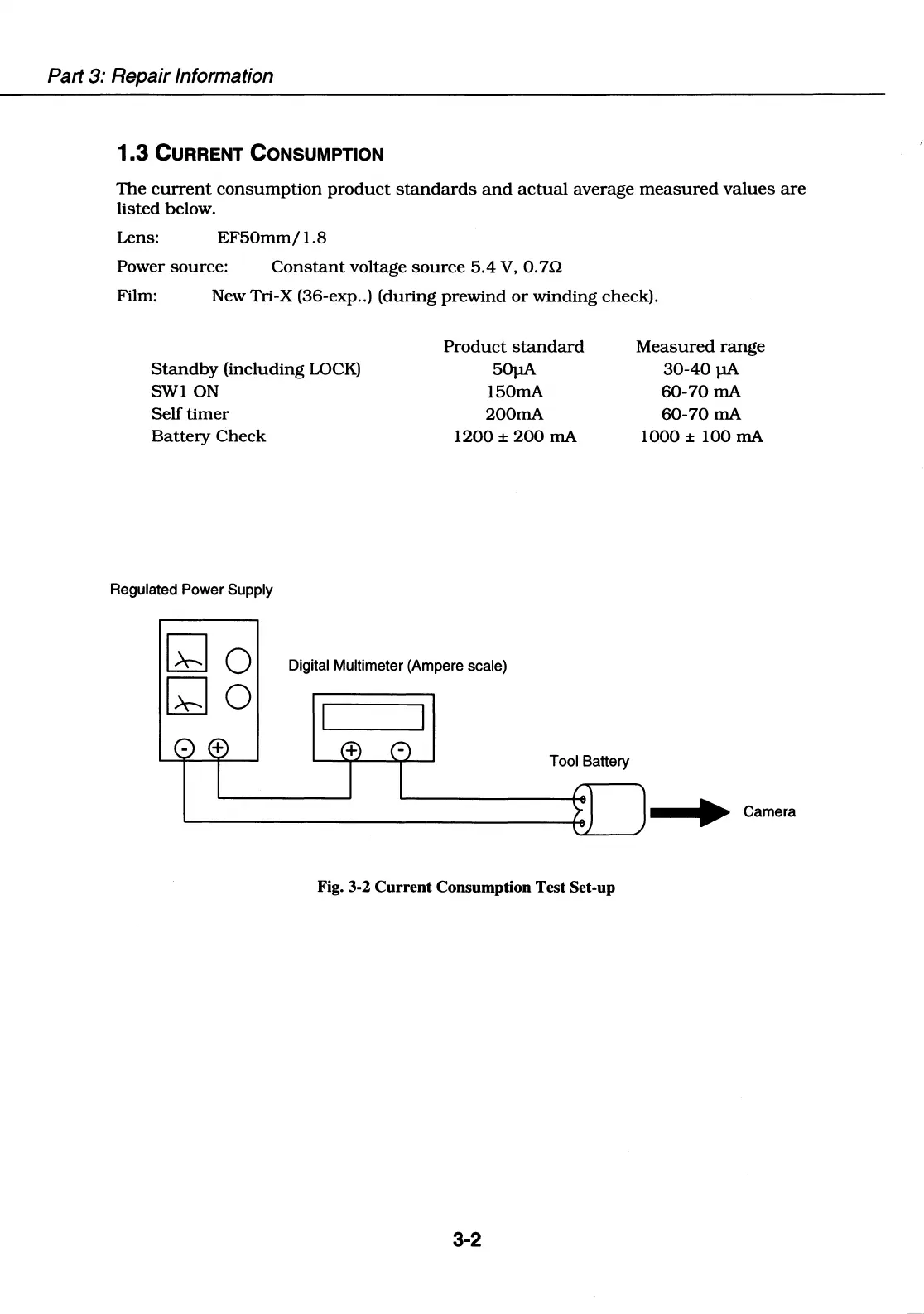

1.3 CURRENT CONSUMPTION
The current consumption product standards and actual average measured values are
listed below.
Lens: EF50mm/ 1.8
Power source: Constant voltage source 5.4 V, 0. 7Q
Film: New Tii.-X (36-exp .. ) (during prewind or winding check).
Standby (including LOCK)
SWl ON
Self timer
Battery Check
Regulated Power Supply
Product standard
50µA
150mA
200mA
1200 ± 200 mA
Digital Multimeter (Ampere scale)
Tool Battery
Fig. 3-2 Current Consumption Test Set-up
3-2
Measured range
30-40 µA
60-70 mA
60-70mA
1000 ± 100 mA
a- Camera
